Abb AF76SDT Lighting Panel Front Hinge Cover 20 in

Product Description

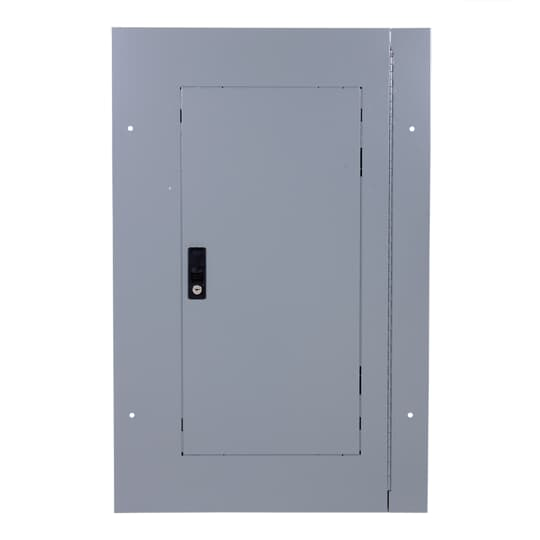

The ABB AF76SDT is a front hinge cover assembly designed for surface-mounted ReliaGear lighting panels. The front panel measures 20 inches and mounts directly to the enclosure box, providing a door-in-door style access configuration at a lower cost than traditional door-in-door designs. Quarter turn locks secure the front cover, and a contractor must remove four screws to access the outer door. This assembly is installed by licensed electricians working on commercial lighting panel installations where gutter access is required during maintenance or inspection.

This cover is intended for surface-mounted ReliaGear lighting panel enclosures. Quarter turn locks are required for XT5 and XT6 panelboard configurations, and the assembly is compatible with other applicable surface-mount enclosure setups as well. The hinged front design allows convenient access to interior gutters without full panel disassembly, making it practical for service calls and routine inspections in commercial electrical installations.

Key Features

• Front hinges directly to the box for door-in-door style gutter access
• 20-inch front depth suits surface-mounted ReliaGear enclosures
• Quarter turn locks provide secure, tool-accessible closure
• Required for XT5 and XT6 panelboard configurations
• Four-screw outer door removal for added security and access control
• More economical alternative to traditional door-in-door designs

Compatibility

Designed for use with surface-mounted ReliaGear lighting panel enclosures. Quarter turn locks are required for XT5 and XT6 panelboard configurations and may be used with other compatible surface-mount applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the panelboard and verify zero voltage before beginning any work on the enclosure or cover assembly. Secure all four outer door screws to the specified enclosure mounting points before restoring power. Do not force the quarter turn locks if resistance is felt — confirm alignment of the front cover before engaging.

Technical Specifications

• Front Depth: 20 inches
• Mount Type: Surface Mount
• Lock Type: Quarter Turn
• UPC: 783164646108

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF76SDT
