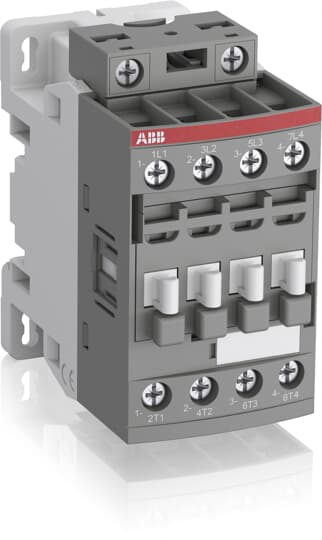

ABB AF09Z-40-00-21 4 Pole 25 Amp Non-Reversing Contactor 24-60V AC 20-60V DC

Product Description

The ABB AF09Z-40-00-21 is a four-pole, twenty-five amp non-reversing contactor designed for use with both AC and DC coils. Its operational voltage ranges from twenty-four to sixty volts AC and twenty to sixty volts DC. This contactor does not include auxiliary contacts.

• Type: Contactors
• Max Load Current: 25 A
• Durable design for long operational life.

Product Highlights

This product is suitable for controlling non-inductive and slightly inductive loads, such as resistance furnaces. It features a compact form factor with dimensions of forty-five millimeters in width, seventy-seven millimeters in depth, and eighty-six millimeters in height.

Product Information

Standard Information

• Manufacturer: ABB
• Part Number: AF09Z-40-00-21

Technical Specifications

• Contact Configuration: 4NO
• Coil Power Rating: 2 hp, 5 hp, 7-1/2 hp, 3/4 hp, 1-1/2 hp
• Coil Voltage: 24 to 60 VAC, 20 to 60 VDC
• Contact Rating: 25 A at 690 V
• Frequency Rating: 50/60 Hz
• Operating Temperature: -40 to 70 degrees Celsius
• Operating Cycles: 10,000,000 cycles
• Enclosure Rating: IP20
