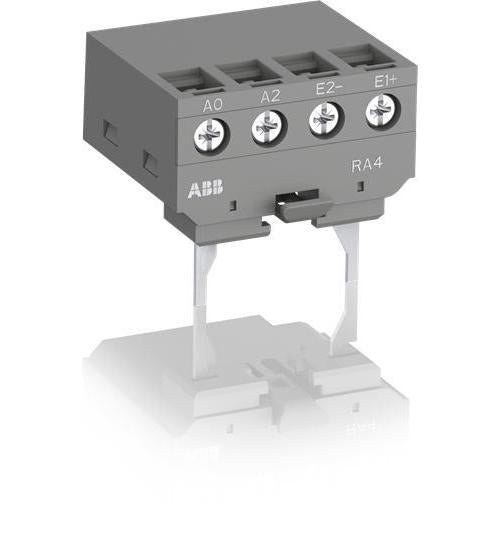

Abb Af-ra4 Interface Relay Ra4 24 VDC

Product Description

The ABB AF-RA4 interface relay RA4 is designed to receive 24 V DC signals delivered by PLCs and restore them with sufficient power to operate the coils of the relevant AF09, AF96 contactors or the NF contactor relays. It is made up of a miniature electromechanical relay equipped with a N.O. contact and with a low consumption 24 V DC coil.

• Protected from surge thanks to the built-in surge protection of AF09, AF96
• Protected against relay pole reversal by a diode inserted between the E1 and E2 input terminals
• Coil Voltage: 24 VDC

Product Highlights

The ABB AF-RA4 interface relay is ideal for use with PLCs or other sources with a low output power.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF-RA4

Technical Specifications

• Brand: ABB
• Coil Voltage: 24 VDC
• Contact Form: SPST-NO
• Manufacturer Part Number: AF-RA4
• Mounting Type: Socket Mount
• Number of Pins: 2
• Primary Type: Power Relays
• Relay Type: Electromechanical
• Series: RA4 Series
• Termination: Screw terminal
• Terminal Type: Screw
• Temperature Rating: -40 to 70
