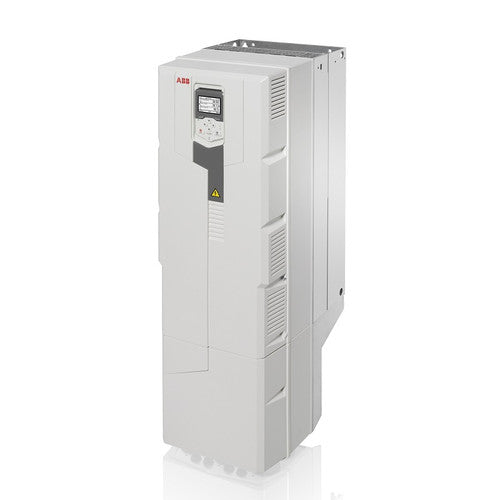

Abb ACS580-01-273A-2 Variable Frequency Drive 75 kW (Frame R8)

Product Description

Abb ACS580-01-273A-2 is a 75 kW variable frequency drive for industrial motor control, specified with a nominal current of 276 A. The drive supports 3-phase input and output with a 208-240 VAC voltage range, wall/panel mounting in frame R8, and built-in control functions including sensorless vector control and STO. It includes dynamic and flux braking options and a keypad user interface for commissioning and operation.

• 75 kW power rating with nominal current 276 A; input voltage 208-240 VAC, 3-phase
• Sensorless vector (open loop) motor control, Safe Torque Off (STO), keypad operator interface
• Wall-mounted R8 frame, air cooling via DC axial fan, dynamic and flux braking options

Product Highlights

General-purpose ACS580 series AC drive for pumps, fans, compressors, conveyors, mixers and other industrial motor applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ACS580-01-273A-2
• Country of Origin: India

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: ACS580-01-273A-2
• Product Series: ACS580
• Product Type: Variable Frequency Drive (AC)
• Power Rating: 75 kW
• Nominal Current: 276 A
• Input Voltage: 208-240 VAC
• Phase: 3-Phase
• Frame Size: R8
• Mounting Type: Panel (Wall) Mount
• Cooling Method: Air Cooling (DC Axial Fan)
• Motor Control: Sensorless Vector (Open Loop Vector)
• Safe Torque Off (STO): Included
• Brake: Dynamic Braking; Flux Braking (optional external)
• Operator Controls: Keypad included
• Protection Rating: IP21
• NEMA Rating: NEMA 1
• Dimensions (H x W x D): 11.81 in x 15.47 in x 37.99 in
• Frame/Revision: Revision F
• Applications: Pumps, fans, compressors, conveyors, mixers, centrifuges
