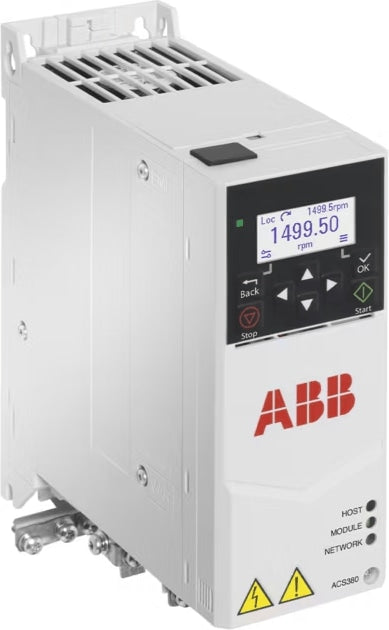

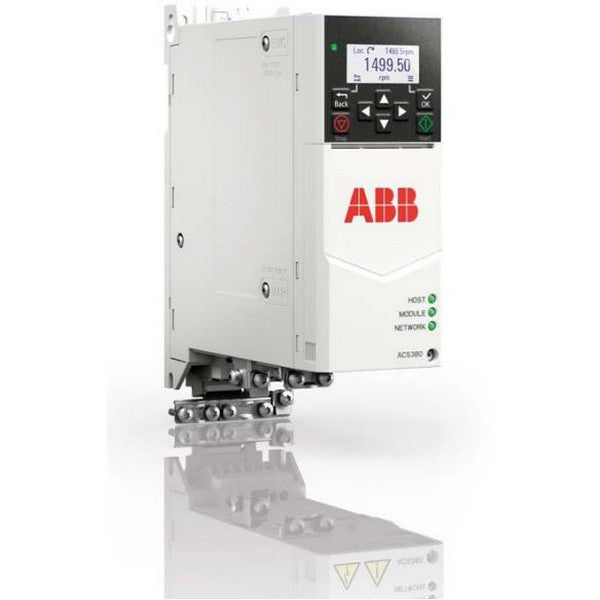

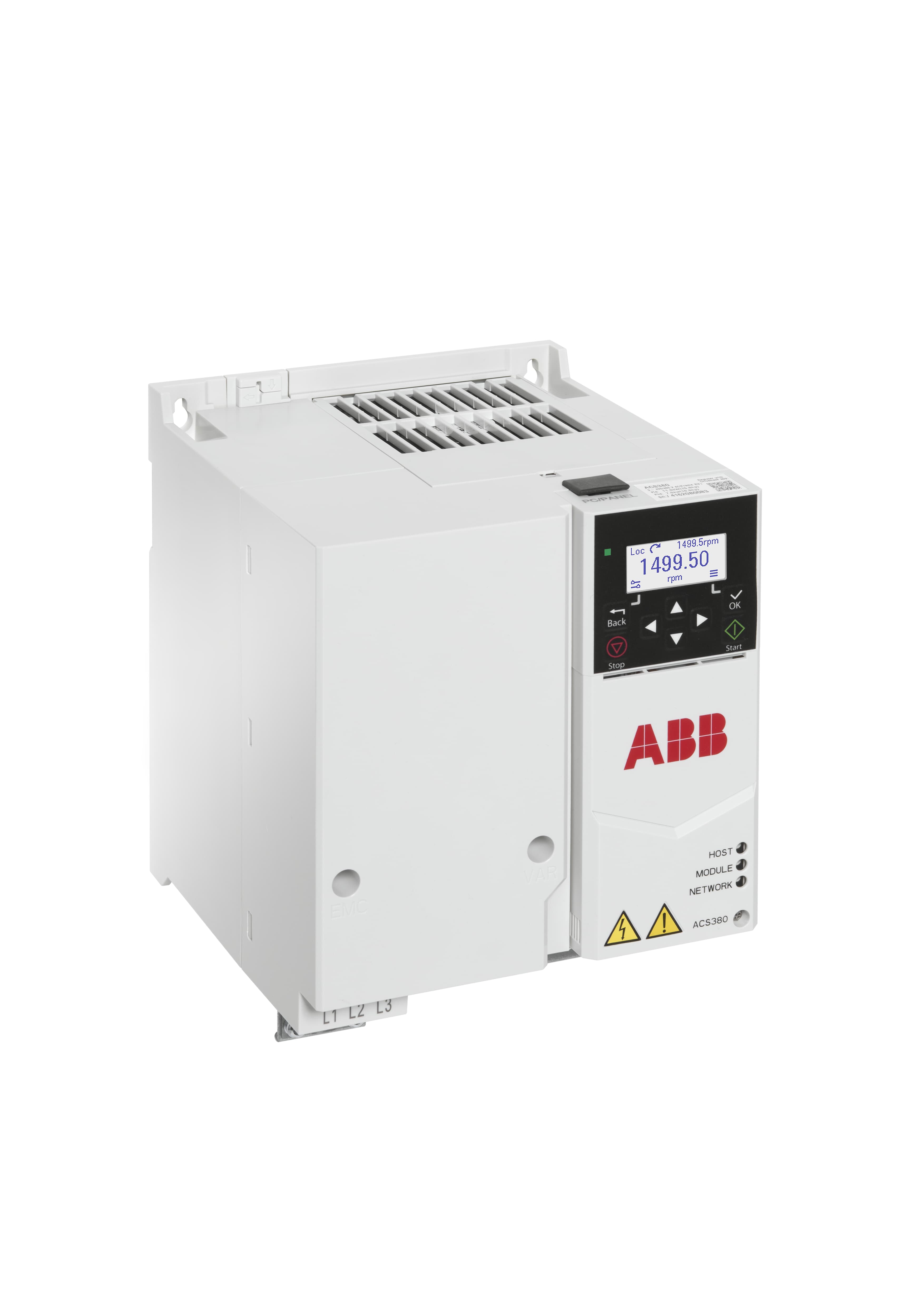

ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4
ABB Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4

Abb ACS380-040N17A0-4 Machinery Drive 7.5 kW (R3) Replacement ACS355-03U-12A5-4

ABB
Brand: ABB
SKU: ACS380-040N17A0-4
Availability: In Stock

Ships same day if ordered by 12 pm
$1,572.11
$1,572.11
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Abb ACS380-040N17A0-4 is a machinery drive from the ACS380 series designed for integration into machines and automation systems. The drive delivers 7.5 kW nominal power with a 17.0 A IEC rating at 400 V and supports three-phase supply voltages in the 380 to 480 VAC range. It includes built-in safety and control features such as Safe Torque Off and PROFIsafe over PROFINET, adaptive programming, EMC filtering, and a braking chopper for precise motor control in conveyors, mixers, cranes, extruders, and textile machinery.

  • IEC rated 7.5 kW, 17.0 A nominal (400 V); supports 3-phase 380�480 VAC, 50�60 Hz
  • Integrated safety and control: Safe Torque Off (STO), PROFIsafe over PROFINET, braking chopper, EMC filter options
  • Mechanical and installation: IP20 open enclosure, frame size R3, surface/wall/panel mounting; adaptive programming and load profiling

Product Highlights

ACS380 series machinery drive, 7.5 kW 17 A, STO safety, adaptive programming

Product Information

Standard Information

  • Brand: ABB
  • Manufacturer Part Number: ACS380-040N17A0-4
Technical Specifications
Brand
Abb
Model/MPN
ACS380-040N17A0-4
Product series
ACS380
Product type
LV AC machinery drive module / variable frequency drive (VSD/VFD)
Rated power (IEC Pn)
7.5 kW
Rated current (IEC)
17.0 A (nominal at 400 V)
IEC rated voltage
400 V
Supply voltage (range)
380-480 VAC (3-phase)
UL rated power
10 Hp
UL rated current
14 A
UL rated voltage
480 V
Network frequency
50-60 Hz
Type of network
3-phase
Degree of protection
IP20
Frame size
R3
Mounting
Surface / wall / panel mount
Enclosure type
Open
Functions
Safe Torque Off (STO); adaptive programming; load profiling; diagnostics; energy optimizer
Design features
EMC filter C3/C4; assistant control panel; braking chopper; mechanical brake control logic
Ambient temperature (operation)
-10 to +50 �C
Ambient temperature (storage)
-40 to +70 �C
Application type
Machinery drives (conveyors, mixers, extruders, winders, cranes, textile machinery)
Replacement for
ACS355-03U-12A5-4
Order code / Manufacturer SKU
3AXD50000129331
Compliances / Certifications
CE; EN/IEC 61800-5-1; EN/IEC 61800-5-2; EN 61800-3; cUL; UL; RoHS; TUV; WEEE
