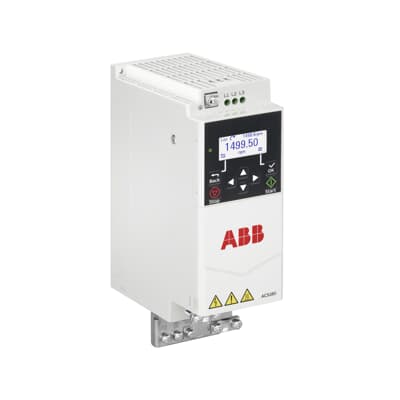

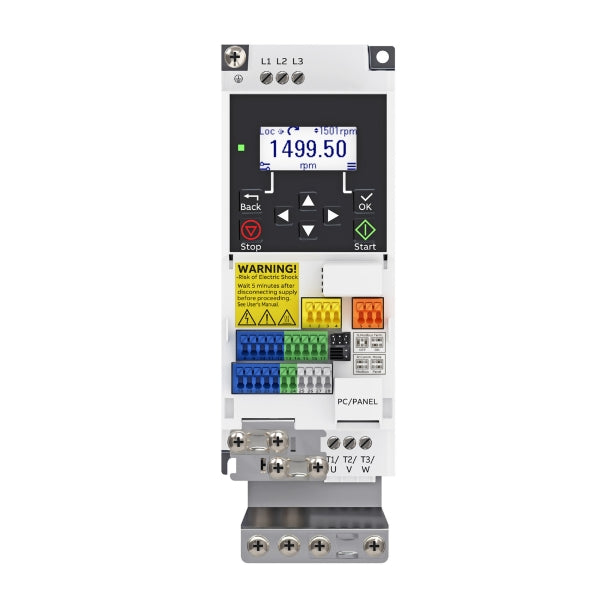

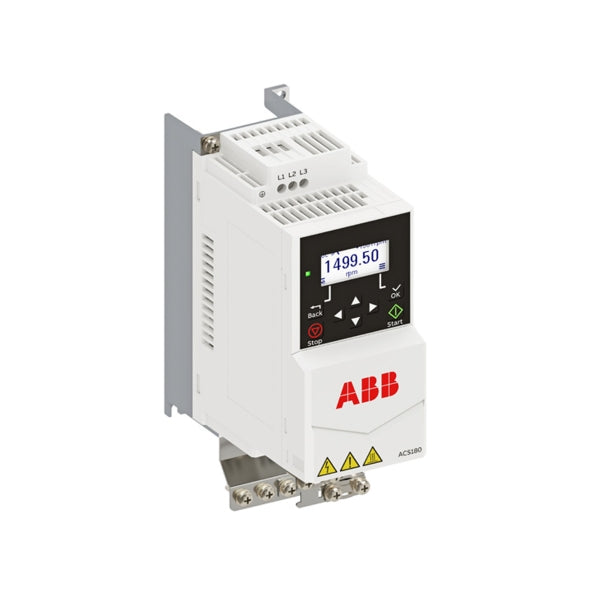

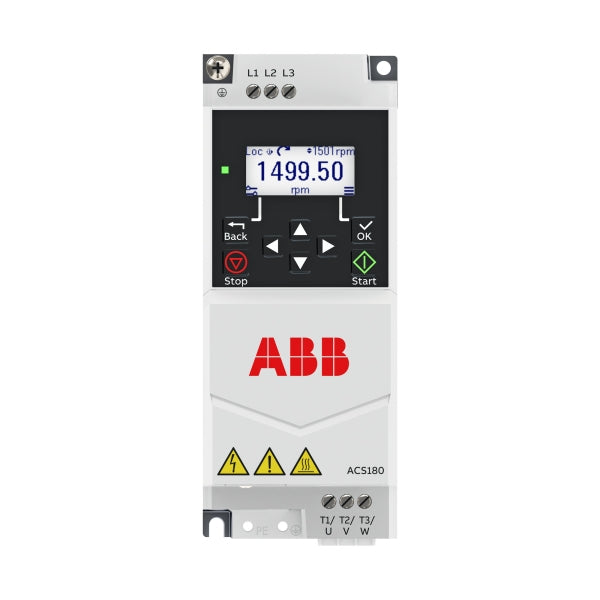

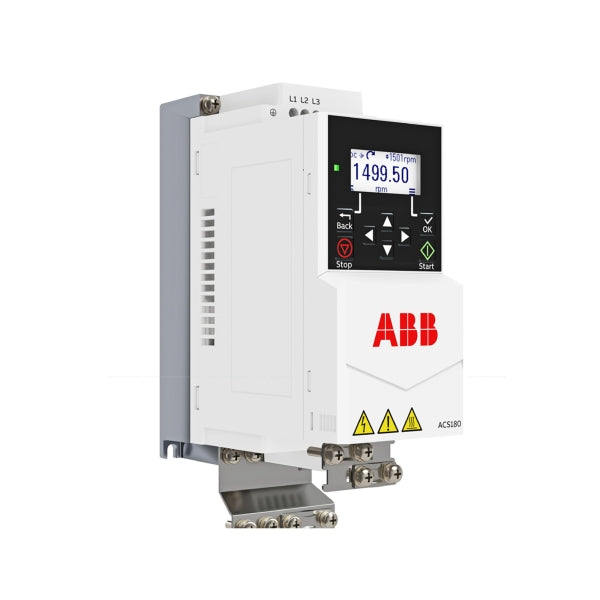

ABB ACS180-04S-04A0-4 AC Drive 2HP

Product Description

The ABB ACS180-04S-04A0-4 AC drive is focused on controlling AC motors. It accommodates scalar control and sensorless vector control to manage speed and torque. The drive comes with coated circuit boards to protect against dust and moisture. Built-in Modbus RTU communication allows for easy integration into control systems. It is designed for a range of applications including conveyors, pumps, mixers, and material handling equipment.

• Compact design with varied installation options.
• Supports scalar and sensorless vector control.
• Equipped with Modbus RTU communication and integrated Safe Torque Off (STO).

Product Highlights

The ABB ACS180 drive is engineered for performance and reliability, making it essential for machinery builders requiring effective AC motor control.

Product Information

Standard Information

• Manufacturer: ABB
• Product Series: ACS180

Technical Specifications

• MPN: ACS180-04S-04A0-4
• Phase: 3
• HP (Variable Torque Rating): 2 hp
• Amps (Variable Torque Rating): 3.5 A
• Nominal Input Voltage: 480 VAC
• AC Voltage: 380-480 VAC
• Frame Size: R1
• Protection Rating: IP20
• Dimensions: Height 8 in, Width 5 in, Depth 10 in
• Main Function: Variable Speed/Frequency Drive (VSD/VFD)
• Network Frequency: 47-63 Hz
• Display: LCD display
• Rated Current: 4 A
• Input Phase: Three Phase
• Output Phase: Three Phase
• Operating Modes: Speed Control (V / Hz), Torque Control
• Integrated Keypad: Yes
• Power Rating: 4 kW
• Warranty: 1 Year Manufacturer
