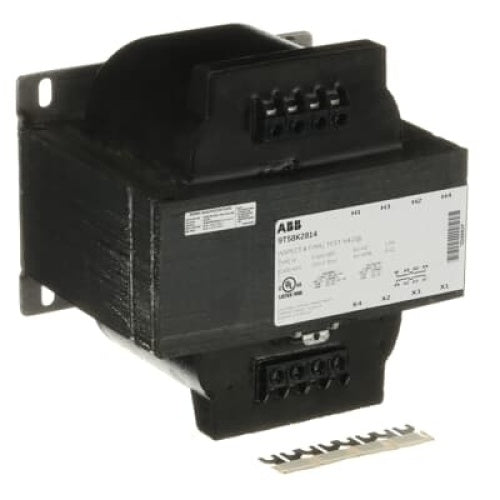

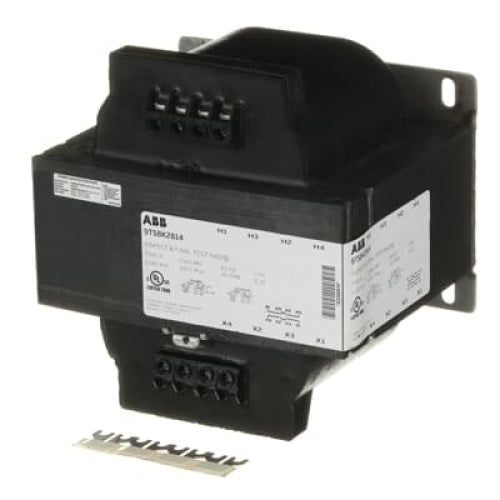

Abb 9T58K2814 Control Transformer 2 kVA 240x480-120/240

Product Description

The ABB 9T58K2814 is a general purpose encapsulated open core and coil transformer, also known as a Type IP Control Power transformer, ideally suited for industrial and light-duty loads. It is designed for HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. Optional fuse block adapter kits enable input and output flexibility.

• Ideally suited for industrial and light-duty loads
• Suitable for HVAC applications
• Suitable for signal and alarm systems
• Optional fuse block adapter kits enable input and output flexibility

Product Highlights

This ABB control power transformer is an economical alternative to high in-rush/machine tool transformers.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 9T58K2814

Technical Specifications

• Category: Control Power
• Phase: 1
• PriVoltage: 240x480
• SecVoltage: 120/240
• KVA: 2.0 KVA
• Coil Material: CU
• TempRise: 100.0 °C
• ElecShield: N
• Sub Type: Control Terminal Block
• Frequency: 60 Hz
• FrameSize: 14300
• TempClass: 180.0 °C
• AmbTemp: 40.0 °C
• InsulSys: IS-12
• KFactor: K1
• Enclosure Type: None
• PriRatingType: 8
• SecRatingType: 8
• Outline: 303B947AAP14300
• TransType: IP
• UL: Yes
• cUL: Yes
• Transformer Voltage Phases: Single Phase
• Manufacturer: ABB
• Component: Industrial Control Transformer
• Type: Industrial Control, Transformer
• Volt Amps: 2kVA
• Primary Voltage: 240/480
