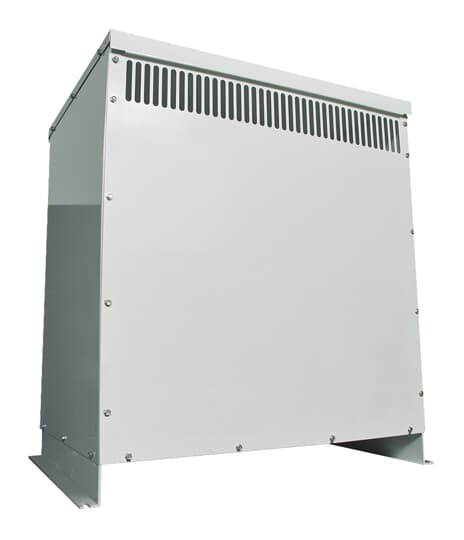

Abb 9T10A1194 General Purpose Transformer 75 kVA

Product Description

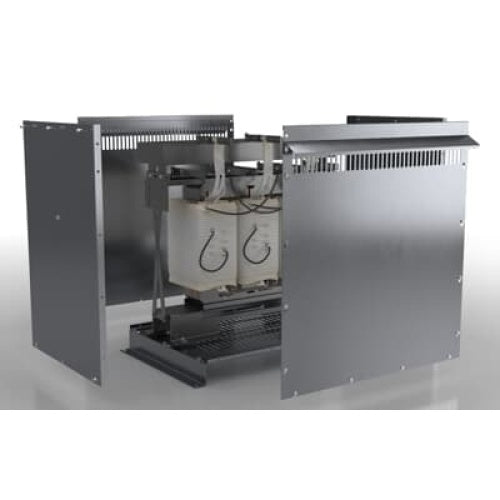

The ABB 9T10A1194 is a low-voltage general purpose dry-type transformer built to last more than 20 years and is UL Listed. This transformer meets DOE 2016 efficiency standards and is UL Energy Verified as energy efficient. It features quiet performance with core and coil assemblies mounted on rubber isolation pads to reduce noise. Qualified to seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022.

• UL Listed
• Meets DOE 2016 efficiency standards
• Available with aluminum or copper windings

Product Highlights

This transformer is ideal for commercial and industrial settings, including motors, lighting, and power supply network conversion.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 9T10A1194

Technical Specifications

• Category: General Purpose
• TransType: DOE 2016
• Phase: 3
• PriVoltage: 480
• SecVoltage: 240
• KVA: 75.0 KVA
• Coil Material: AL
• TempRise: 150.0 °C
• Frequency: 60 Hz
• AmbTemp: 40.0 °C
• EnergyEfficiency: DOE 2016
• KFactor: K1
• Enclosure Type: NEMA 2
• Sound: Std
• Classifications: UL
• Manufacturer: ABB
• Component: General Purpose Transformer
• Kva Rating: 75
• Temperature Rating: 40
