Abb 703-1eg universal clamp 1 inch

Product Description

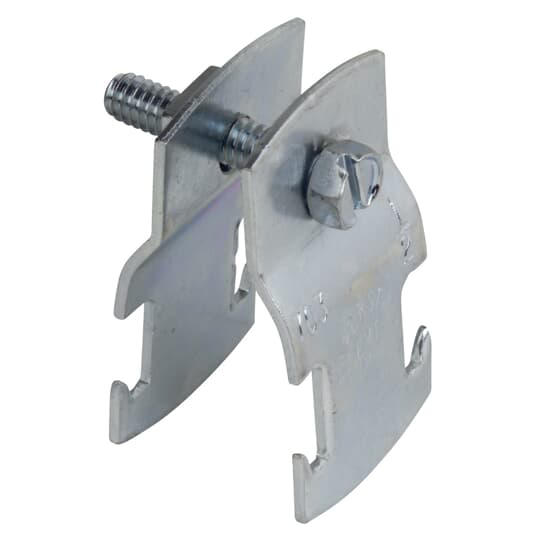

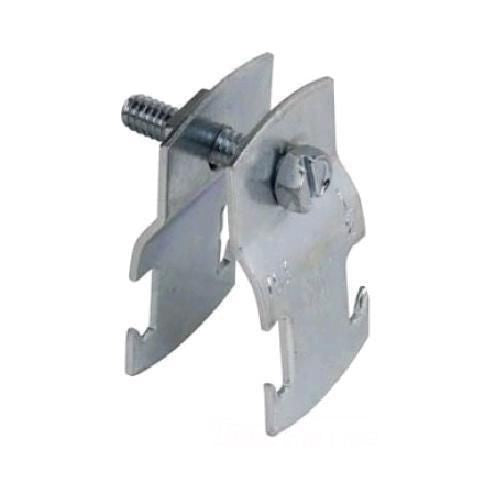

The ABB 703-1EG Universal Clamp is a 14 gauge, 1 inch clamp constructed from electro-galvanized steel. Designed for pipe outer diameters ranging from 1.163 to 1.315 inches, this clamp is suitable for use with rigid or IMC conduit, pipe, and electrical metal tubing. It is part of the 700 Series of pipe straps, pipe clamps, and hangers.

• Straps are shipped assembled for easier counting and sorting.
• Pipe and conduit sizes are clearly shown on the strap for easy identification.
• Features a combination slot and hex head bolt for flexible attachment options.

Product Highlights

Designed for secure attachment of rigid or IMC conduit, pipe, and electrical metal tubing.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 703-1EG
• Country of Origin: United States

Technical Specifications

• Catalog Number: 703-1EG
• Manufacturer: Superstrut / Thomas & Betts
• Size: 1 in
• Type: Pipe Straps, Pipe Clamps & Hangers
• Material: Steel
• Sub Brand: Superstrut
• Trade Size: 1 Inch
• Application: Designed to be Twist Inserted Anywhere Along the Slot Side of the Channel
• Number of Holes: 0
• Alternate Catalog Number: 703 1EG
• Category: Hose or pipe clamps
• Special Features: Bolt head is combination slot and hex head for flexibility of attachment
• Finish: SilverGalv/Electro-Galvanized
• Brand Name: Superstrut
• Maximum Clamp Diameter: 1.315 in
• Minimum Clamp Diameter: 1.163 in
• TSCA Compliance: TSCA Section 6(h) Compliant
• ECCN: EAR99
• Country of Origin: US - United States
• UPC: 61601314365
• UNSPSC: 31162906
• Series: 700 Series
• Conduit Type: Rigid/IMC/EMT
• Fitting Type: Conduit Clamp
• Load Rating: 550 lb.
• Rod Size: 1 in.
• Mounting Type: Channel
• Outside Diameter Range: 1.163 to 1.315 in
• Thickness: 14 ga
• Standards & Approvals: RoHS Compliant
• Suitable For Use With: Rigid or IMC Conduit, Pipe and Electrical Metal Tubing
• Catalog ID: S-S703-1-EG
• Product Group: SUPERSTRUT CHANNEL & ACCE
• Product Category: Channel Conduit/Cable Clamp
• Commodity Code: 2820
• Unique Product Key: 258983
• Buy Line: TB
• Model: 700
