Product Description

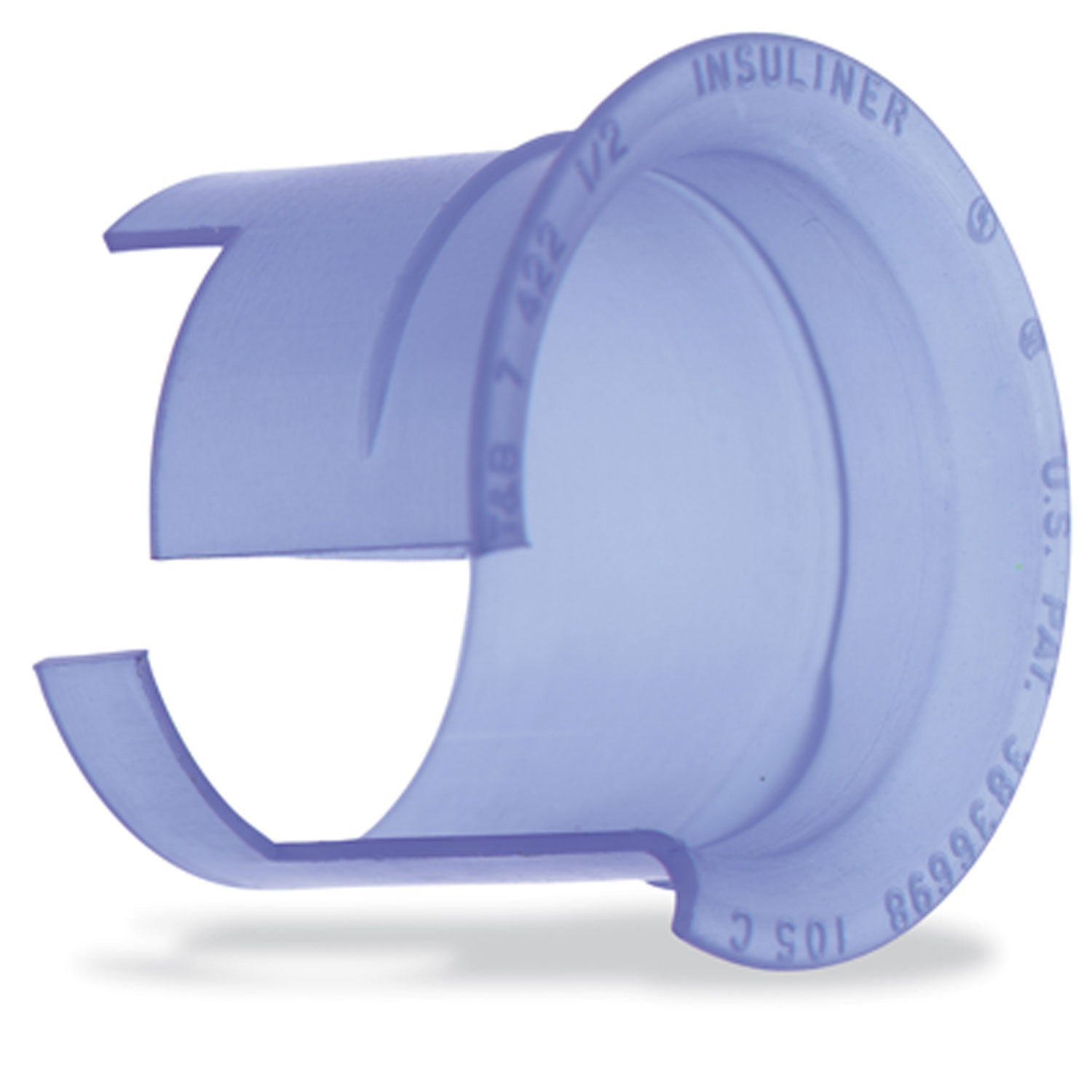

The ABB 424 T&B Insuliner Sleeve is a nylon insulating sleeve designed for use with EMT, rigid, IMC, and flexible metallic conduits. This sleeve measures one inch and effectively converts an ordinary bushing into a code-approved insulated bushing without disturbing wiring.
- Constructed from high dielectric nylon, rated for 105 degrees Celsius
- Compatible with various conduit types, enhancing protection against electrical shorts
- Easy to install, snaps directly into existing bushings
Product Highlights
This product provides electrical safety and compliance by insulating conduit connections.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
UPC: 78621000424
Technical Specifications
-
Application: For snapping into a regular bushing to create a UL listed insulated bushing
-
Dimensions: 7/8 in L
-
Material: Nylon
-
Size: 1 in
-
Standards/Approvals: CSA Certified, UL File No. E23018
-
Suitable For Use With: EMT, rigid, IMC, and flexible metallic conduits
