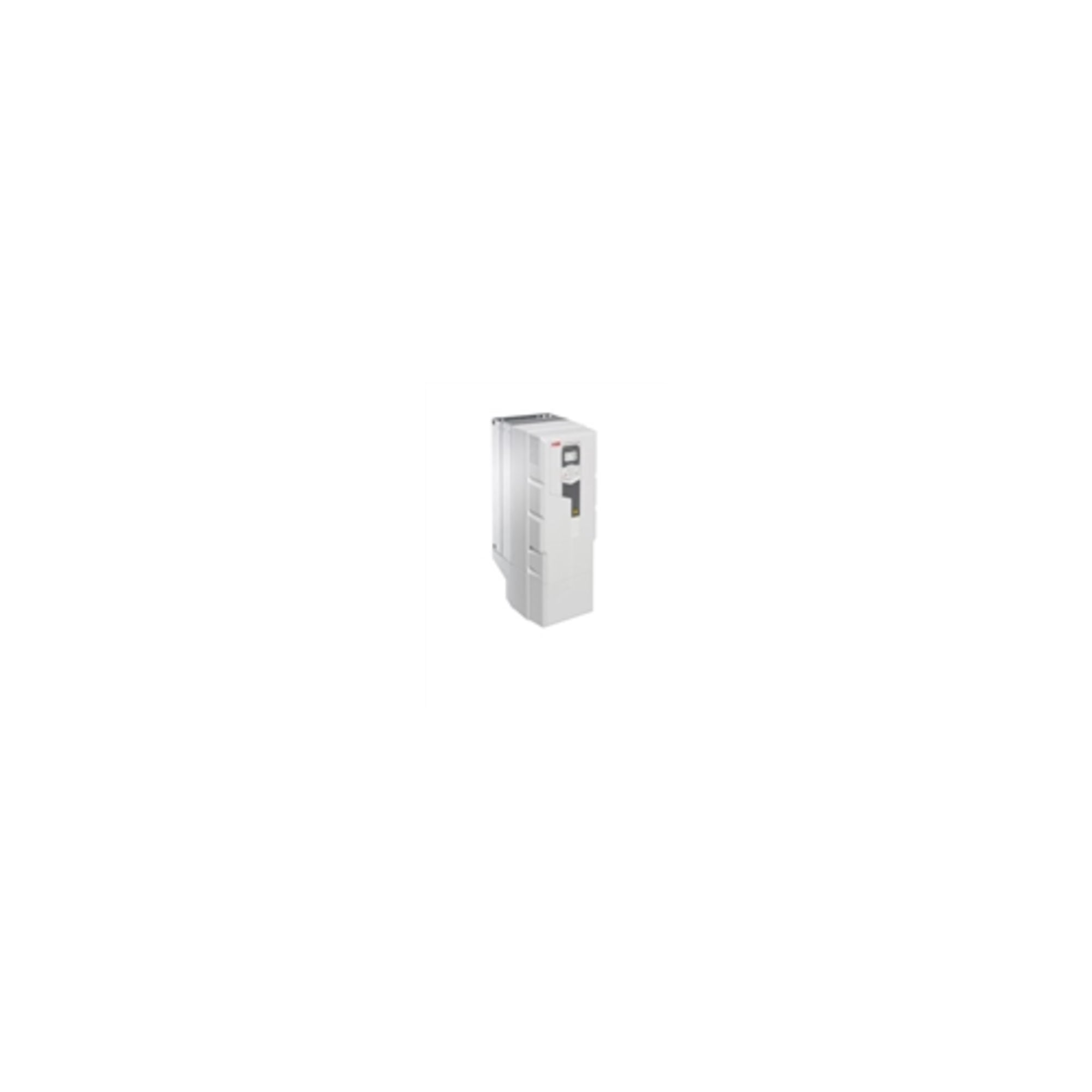

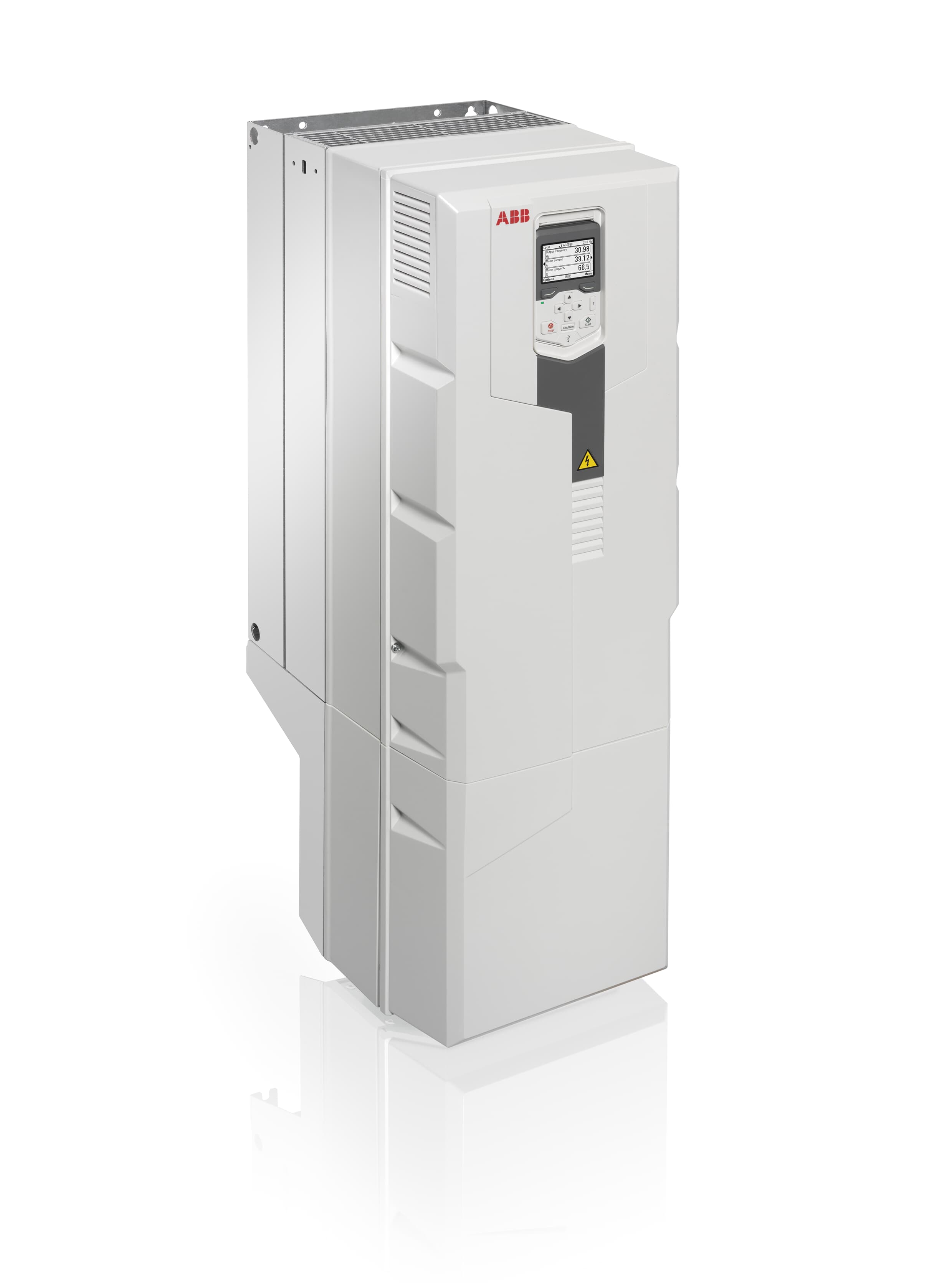

Abb 3AUA0000204821 ACS580-01-156A-4 125 Hp (R7) 14186872

Product Description

Abb 3AUA0000204821 is an ACS580-01-156A-4 wall-mounted variable frequency drive (VFD) engineered for general-purpose industrial motor control. The unit supports V/Hz and sensorless vector control, offers coated control boards and motor temperature monitoring, and is available in multiple enclosure classes (UL Type 1 / IP21, Type 12 / IP55, Type 4X / IP66). It is specified for 125 hp and 156 A service and suits compressors, conveyors, pumps, mixers and fans.

• Wall-mounted ACS580 series VFD with coated control boards and motor temperature monitoring
• Supports V/Hz and sensorless vector control for induction, permanent magnet and synchronous reluctance motors
• Multiple enclosure options: UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66); frame R7

Product Highlights

125 hp, 156 A general-purpose low-voltage drive for industrial applications with multiple enclosure ratings

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3AUA0000204821
• Country of Origin: US

Technical Specifications

• Brand: Abb
• Manufacturer Part Number: 3AUA0000204821
• Model: ACS580-01-156A-4
• Drive Family: ACS580
• Type: Low voltage AC general purpose wall-mounted drive
• Mounting: Wall-mounted
• Enclosure Rating: UL Type 1 (IP21); Type 12 (IP55); Type 4X (IP66)
• Enclosure NEMA Rating: NEMA 1 (applies to UL Type 1 / IP21 option)
• Power (HP): 125 Hp
• Rated Current (A): 156 A
• Rated Voltage (V): 500 V
• Input Power Range: 380–500 V (per product family specifications)
• Phase: 3-phase
• Frame Size: R7
• Control Methods: V/Hz and sensorless vector control
• Compatible Motor Types: Induction, permanent magnet, synchronous reluctance, optimum-pole motors
• Motor Monitoring: Motor temperature monitoring
• Control Board: Coated control boards
• Applications: Compressors, conveyors, pumps, extruders, centrifuges, mixers, fans
• Frequency: 50/60 Hz
• Dimensions (H x W x D): 34.6 in x 11.2 in x 14.6 in (H x W x D)
• Weight: 120 lb (approx. 54.4 kg)
• Display Type: LCD (assistant control panel option)
• Safety Functions: Safe Torque Off (STO) integrated
• Efficiency Level: IE2
• Standby Loss: 45 W
• Additional Features: Built-in choke, controllable cooling fan, adaptive programming, primary control program common across ACS580 series
• Alternate Part Numbers: 14186872, EMS1089119
