ABB 3137 Thomas & Betts 1 Inch 90 Degree Tite Bite Insulated Cable Flex Connector

Product Description

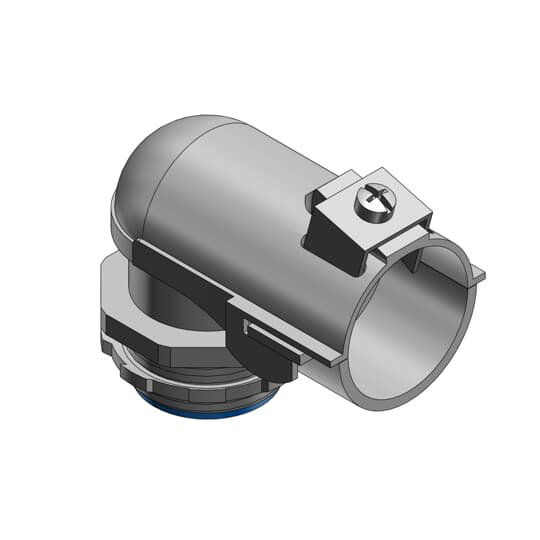

The ABB 3137 is a cable flex connector designed for use in applications involving armored cable and flexible metal conduit. This connector features a 90-degree bend and accommodates trade size one inch. It offers a knockout size of one inch and a cable range of one point two five to one point four six eight inches. Made from malleable iron with zinc plating, it also includes nylon insulation for enhanced safety and performance.

• Designed for easy inspection with a peep hole on top.
• Ideal for sharp bends at enclosures or equipment.
• Narrow design allows for installation in adjacent knockouts.

Product Highlights

This connector is user-friendly, promoting simple installation while ensuring strong connections for a variety of cable types.

Product Information

Standard Information

• Manufacturer: Thomas & Betts Co
• Brand: ABB

Technical Specifications

• Trade Size: 1 inch
• Knockout Size: 1 inch
• Cable Openings: 1.25 to 1.468 inches
• Insulation Material: Nylon
• Material: Malleable Iron
• Finish: Electro-Zinc Plated
• Standards/Approvals: CSA 2884, UL File No. E23018/E1383
• Number of Conductors: 1
