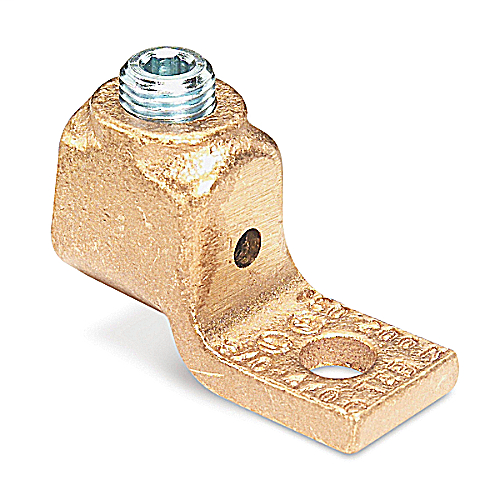

ABB 31013 LOCKTITE CU 1HOLE LUG 4/0

Product Description

ABB 31013 LOCKTITE CU 1HOLE LUG is designed for copper conductors ranging from 4/0 AWG to 300 kcmil. This lug is suitable for use with 600 Volt applications. Its dimensions are two and three-fourths inches in length, one and three-sixteenths inches in width, and one and seventeen thirty-seconds inches in height.

• Easily installed with key wrench.
• Features a convenient peephole for inspection.
• Saddle and cable socket allow for low-resistance contact with cable.

Product Highlights

The lug offers reliable performance in wire termination applications. It has a pad length of one and one-half inches and a pad thickness of five-sixteenths inches, making it ideal for secure connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Material: Copper
• Voltage: 600 Volt
• Stud Size: 1/2 in
• Conductor Size: 4/0 AWG to 300 kcmil
• Number of Bolt Holes: 1
• Standards/Approvals: UL Listed File No. E9809
• Tongue Size: 1-1/2 in L x 1-3/16 in W x 5/16 in THK
