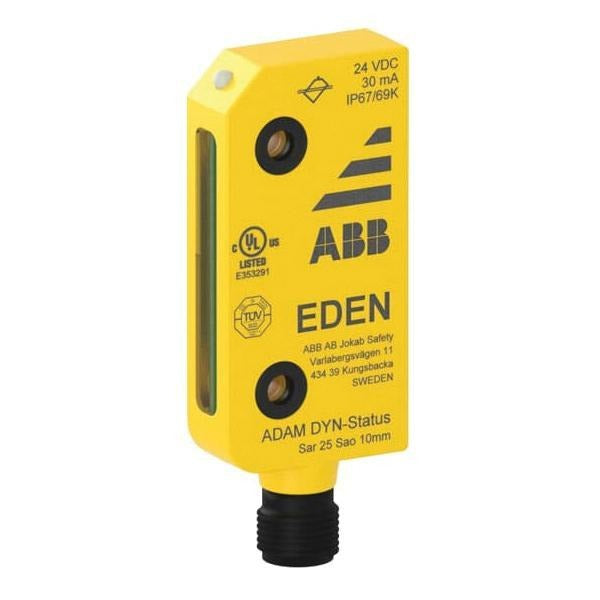

Abb 2tla020051r5200 Safety Sensor Unit 30ma 24VDC M12

Product Description

The ABB 2tla020051r5200 is a dynamic safety sensor unit designed for machine safety and access-guarding applications. Operating at 24 volts DC with a 30 mA output current, it integrates into safety circuits to monitor the state of guards, interlocks, or protective devices. The unit connects via a 5-pin M12 male connector and mounts by screw fastening. Response times are rated at under 100 milliseconds for activation and under 30 ms for deactivation, supporting fast machine stopping response. A mechanical life rating of 20 years makes it suitable for high-cycle industrial environments where sensor longevity is a maintenance concern.

This safety sensor unit is used in industrial machinery and automation systems where functional safety monitoring of moving guards or access panels is required. Typical installations include automated production lines, robotic cells, and equipment requiring IEC-compliant interlocking. The unit is housed in PBT material with a gray and yellow color scheme, consistent with safety-component identification conventions. Its IP67 and IP69K ingress protection ratings make it appropriate for environments exposed to washdowns, dust, and moisture, including food processing and light industrial settings.

Key Features

• 24 VDC operating voltage for standard industrial control circuit compatibility
• 30 mA output current suitable for direct integration with safety relay or controller inputs
• Activation response under 100 milliseconds and deactivation response under 30 milliseconds
• IP67 and IP69K dual ingress protection for wet and washdown environments
• 20-year mechanical life rating for high-cycle, long-service-interval applications
• 5-pin M12 male connector for quick, standardized field wiring
• Screw-mount design for secure, vibration-resistant installation

Compatibility

Designed for use in safety interlock and access-guarding circuits within industrial control systems requiring dynamic safety sensor inputs compatible with standard safety relay modules and safety-rated PLCs.

Installation Notes

Installation should be performed by a qualified industrial electrician or machine safety specialist familiar with applicable machinery safety standards. De-energize and lock out the machine control circuit before mounting or wiring the sensor. The M12 connector must be fully seated and rated for the environment rating to preserve IP67 and IP69K protection. Verify that the connected safety controller or relay is rated to accept the 30 mA output signal before commissioning.
