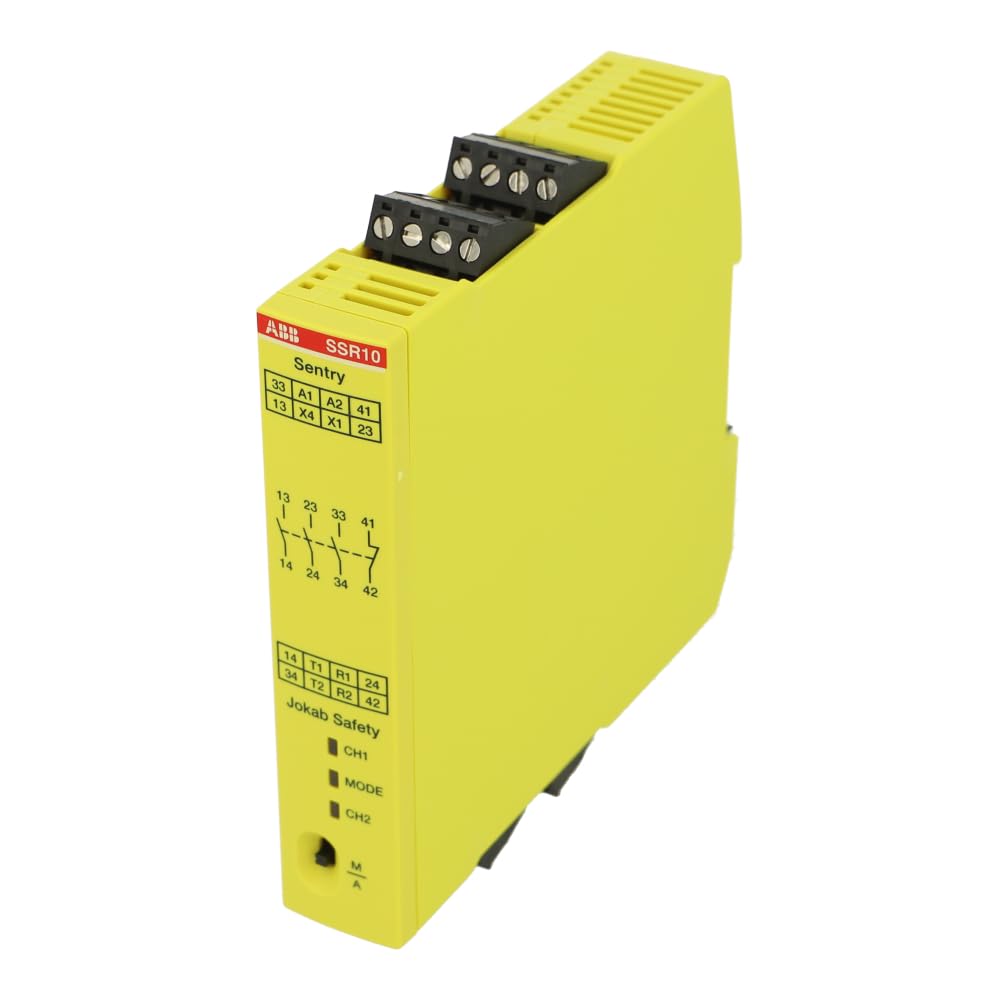

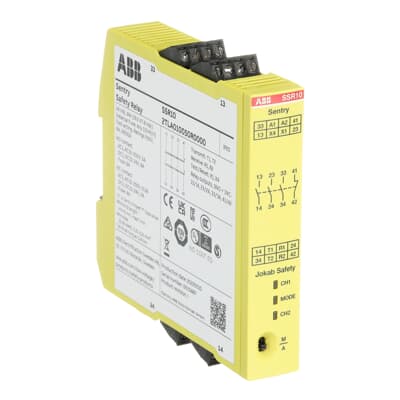

Abb 2TLA010050R0000 Sentry Ssr10 24Vdc

Product Description

The ABB 2TLA010050R0000 Sentry Ssr10 24Vdc is designed for monitoring safety devices with contacts, 1 or 2 equivalent channels, and safety devices with OSSD outputs. Manual or automatic reset is selectable by a switch on the front. It features relay outputs of 3NO+1NC and operates on a +24 VDC supply voltage with screw terminals.

• Safety relay with relay outputs 3NO+1NC
• +24 VDC supply voltage and screw terminals
• For monitoring of safety devices with contacts, 1 or 2 equivalent channels, and safety devices with OSSD outputs

Product Highlights

The ABB Sentry SSR10 is a safety relay with relay outputs, +24 VDC supply voltage, and screw terminals. It is designed for monitoring safety devices and offers manual or automatic reset options.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2TLA010050R0000

Technical Specifications

• Manufacturer: ABB
• Brand: ABB
• MPN: 2TLA010050R0000
• Product Type: ELECTRONIC_COMPONENT
• Category: Safety Relays
• Supply Voltage: 24VDC
• Monitoring of Emergency Stops: Yes
• Safe Output Expansion: Yes
• Monitoring of Gate Switches: Yes
• Monitoring OSSD Devices (ex. Light Curtains): Yes
• Two Hand Control: No
• Safety Mats/Edges and Bumpers: No
• Timer Function: Yes
• Outputs: 3NO+1NC
• Product Class: Sentry Safety Relays
• Product Main Type: SSR
• Degree of Protection: IP20
• Reset Options: Manual and automatic reset selectable via a front switch
• Output Current Capacity: Up to 6 A
• Terminal Options: Detachable push-in or screw terminals
• Operating Temperature: -25 to +65 °C
• RoHS Compliance: Yes
• DIN Rail Compatibility: TH35-15 and TH35-7.5 according to IEC 60715
