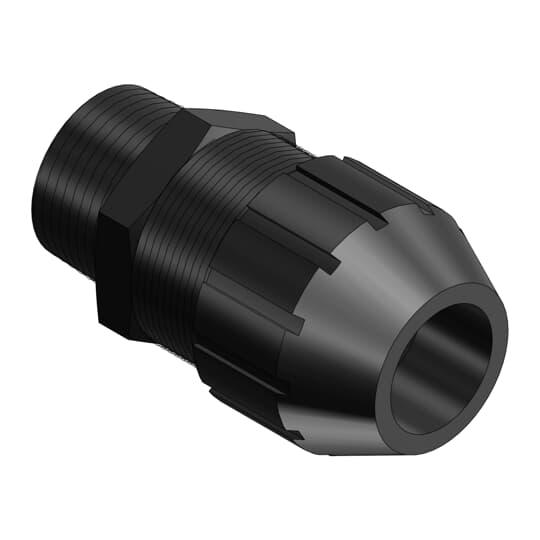

Abb 2705-TB Cord Grip Connector Straight (1-1/2)

Product Description

Abb 2705-TB is a liquidtight straight cord grip connector that provides strain relief when connecting flexible cord to a box or enclosure. The connector fits a 1-1/2 inch hub and accommodates cord diameters from 0.910 to 1.150 inch with a 1.47 inch throat. Constructed of polyamide (nylon) with an NPT thread, it is temperature rated from -34 to 105 degrees C and meets UL and CSA standards for hazardous locations.

• Cord range 0.910 to 1.150 inch with 1.47 inch throat and 1-1/2 inch hub (trade size)
• Polyamide (nylon) construction, NPT thread, thread length 20.63 mm (0.812 in), temperature rating -34 to 105 degrees C
• Segmented chuck for high pullout performance; certified UL E13938, CSA, RoHS; meets Coast Guard CG293; suitable for specified NEC hazardous locations

Product Highlights

Liquidtight nylon straight cord connector, 1-1/2 in hub, 0.910–1.150 in cable range, NPT thread, certified for hazardous locations

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2705-TB
• Country of Origin: United States

Technical Specifications

• Brand: Abb
• Manufacturer: Thomas & Betts Co
• Manufacturer Part Number: 2705-TB
• Product Name: Liquidtight cord connector (cord grip), straight
• Type: Straight
• Trade Size / Hub Size: 1-1/2 in
• Cord Range: 0.910 to 1.150 inch (23.114 - 29.21 mm)
• Throat Diameter: 1.47 inch
• Material: Polyamide (nylon)
• Thread Type: NPT
• Thread Size: 1-1/2 NPT
• Thread Length: 20.63 mm (0.812 in)
• Temperature Rating: -34 to 105 degrees C
• Includes: Sealing ring, Locknut
• Certifications: UL E13938; CSA; RoHS; RoHS3; TSCA Section 6(h)
• Coast Guard Compliance: Meets Coast Guard CG293
• Flammability Rating: UL 94-V2
• Hazardous Location Classification: Suitable where general purpose equipment is permitted per NEC: Class I Div. 2; Class II Div. 1 & 2; Class III Div. 1 & 2
• Application: Provides liquidtight strain relief when connecting flexible cord to a box or enclosure
• UPC (12-digit): 786210027050
• GTIN: 00786210027050
• Unit Weight: 0.5 lb (8 oz)
• Length: 4.2 in
