ABB 2534 T&B 3/4 WT CORD CONN

Product Description

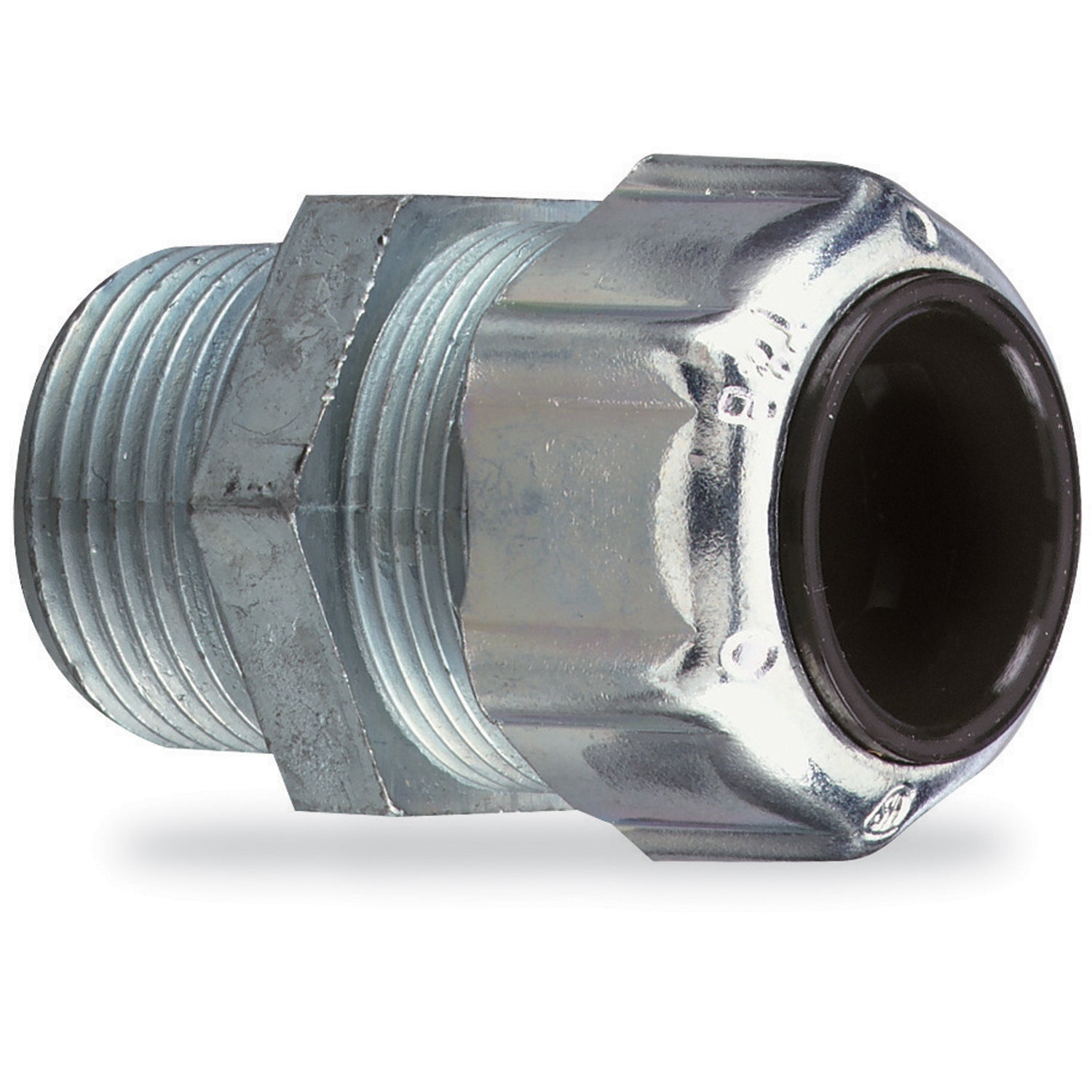

The ABB T&B 2534 is a liquidtight strain relief cord connector designed for use in various electrical applications. This product features a trade size of three-fourths of an inch and accommodates cable openings ranging from one-half to five-eighths of an inch. The connector is made of die-cast zinc and is zinc plated for durability.

• Designed for hazardous locations as permitted by NEC 501-4(B)
• Compatible with S/SO, SV, ST, STD, SJ, SJO, SJT, SJTO, and SVD cables
• Temperature rated up to 105 degrees Celsius

Product Highlights

This connector is suitable for general purpose electrical applications, offering a liquidtight seal for secure installations.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Manufacturer Part Number: 2534

Technical Specifications

• Type: Liquidtight
• Trade Size: 3/4 inch
• Cable Openings: 1/2 to 5/8 inch
• Connection Type: Thread
• Material: Die Cast Zinc
• Dimensions: 1-3/8 inch diameter x 1-3/4 inch length
• Finish: Zinc Plated
• Application: For hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B)
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
