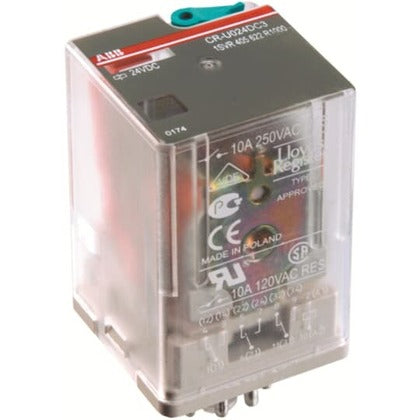

Abb 1SVR405622R1100 Interface Relay with LED 3 c/o Contacts 250V/10A 24 V DC Coil

Product Description

The ABB 1SVR405622R1100 interface relay is a pluggable relay used for digital signals, electrical isolation, amplification, and signal matching between electronic controlling systems and the sensor/actuator level. It features overload protection against short-time variations like current or voltage peaks. This relay operates with a 24 V DC coil and has 3 C/O (SPDT) output contacts rated at 250 V/10 A.

• Cadmium-free contact material
• Width on socket: 27 mm
• Suited for logical or standard sockets

Product Highlights

This interface relay has a mechanical status indication and an integrated test button for manual actuation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1SVR405622R1100
• Country of Origin: United States

Technical Specifications

• Type: RELAY
• UNSPSC Code: 39122300
• Coil: 24 V DC
• Contact Configuration: 3 C/O (SPDT)
• Contact Rating: 10 A at 250 V
• Mounting: Socket
• Enclosure: IP40
• Resistance: Contact: Less Than Or Equal To 100 mOhm, Coil: 430 Ohm At 20 deg C
• Operating Cycles: Mechanical: Greater Than 20000000 Cyc Electrical: Greater Than 100000 Cycles
• Operating Temperature: -40 to 70 deg C
• Switching Current: 5 mA Minimum
• Maximum Switching Voltage: 250 V DC
• Operating Current: DC-12 (Resistive): A At 24 V, DC-13 (Inductive): 2 A At 24 V
• Contact Material: AgNi
• Rated Power: 1.5 W
• Make Voltage: 19.2 V DC At 20 deg C
• Operating Voltage: 250 V
• Output Circuit: 11-12/14, 21-22/24, 31-32/34
• Insulation Voltage: 250 V AC
• Response Time: 18 msec
• Release Time: 7 msec
• Category: Interface Relays & Optocouplers
• Function: Pluggable universal interface relay CR-U
• Product Main Type: CR-U
• Sub-Function: Relay with built in LED
• Object Classification Code: K
• ETIM 4: EC001437 - Switching relay
• ETIM 5.0: EC001437 - Switching relay
• ETIM 6.0: EC001437 - Switching relay
• ETIM 7: EC001437 - Switching relay
• eClass: 7.0 27371601
• Product Net Width: 35 mm
• Product Net Height: 54.4 mm
• Product Net Depth / Length: 35 mm
• Coil Voltage: 24 VDC
• Contact Current Rating: 10 A
• Contact Form: 3PDT
• Contact Voltage Rating: 300 VAC
• Control Voltage: 24 V
• Current Rating: 10 A
• Manufacturer Part Number: 1SVR405622R1100
• Mounting Type: Socket Mount
• Numeric ID: 3882599
• Primary Type: Power Relays
• Relay Type: Interface
• Series: CR-U
• Termination: Blade
• Voltage Rating: 250 V
• Display Type: LED
• Enclosure Type: IP40
• Temperature Rating: -40 to 70 deg C
• Amperage Rating: 10 A
• Base: 11-Pin
• Volts DC Control: 24
• Poles: 3
• Amps: 10
