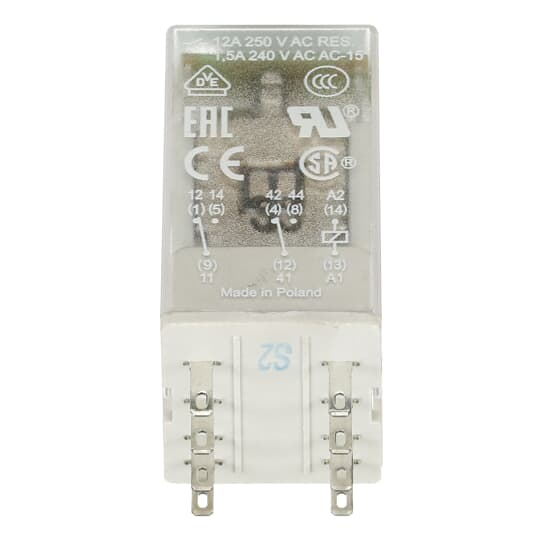

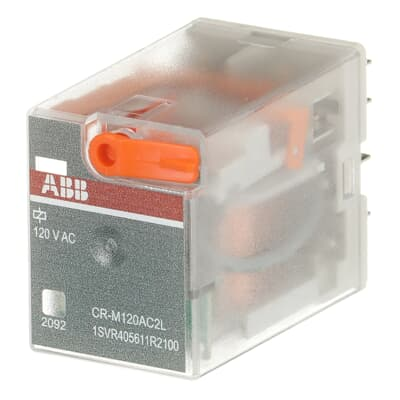

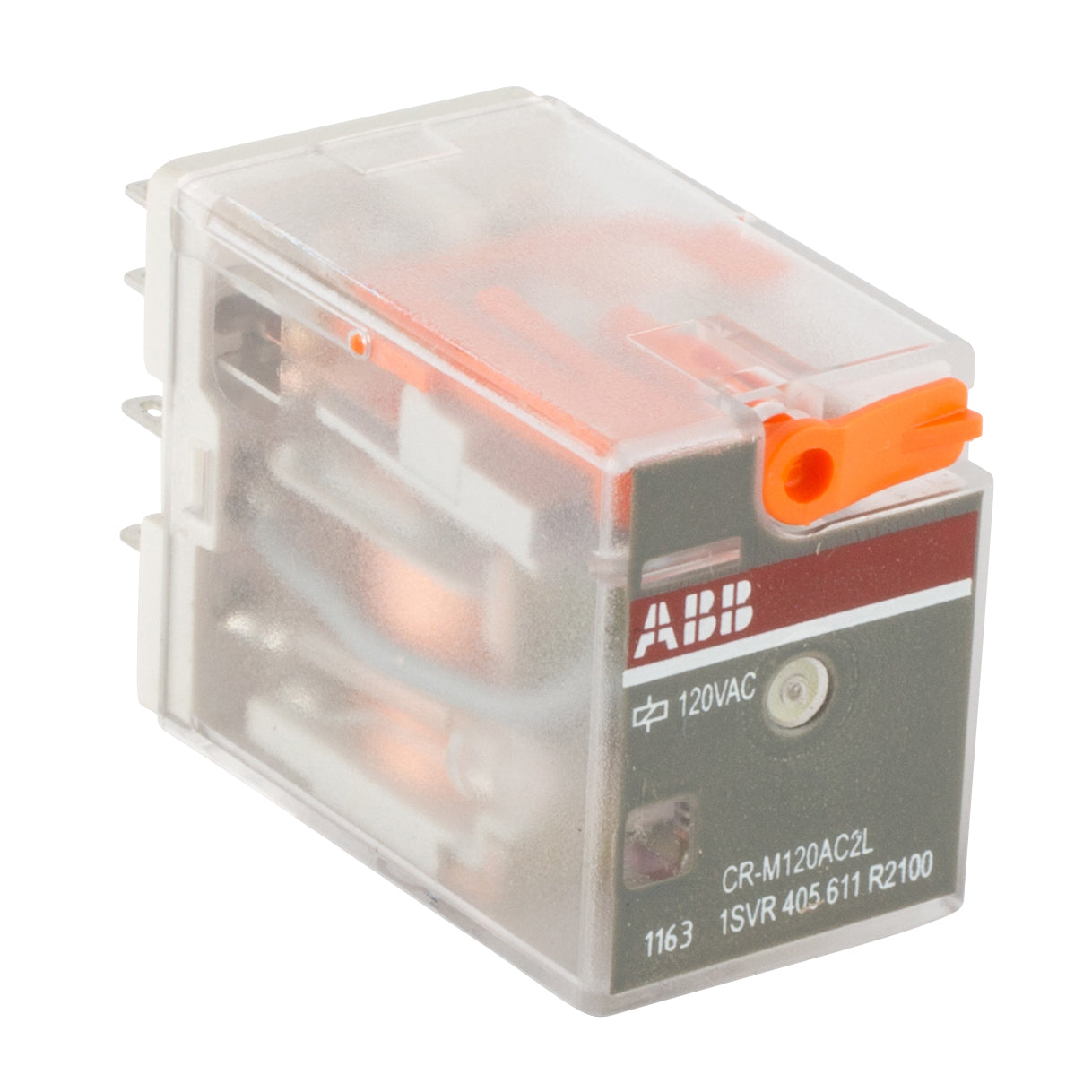

Abb 1SVR405611R2100 pluggable relay, with led, 2 c/o contacts, 250V, 12A, 120 v ac coil

Product Description

ABB 1SVR405611R2100 pluggable interface relays are used for digital signals. They provide electrical isolation, amplification, and signal matching between electronic controlling, such as PLC, PC, or field bus systems, and the sensor/actuator level. These relays are overload-proof against short-time variations like current or voltage peaks.

• Cadmium-free contact material
• Width on socket: 27 mm
• Suited for logical or standard sockets

Product Highlights

Pluggable interface relays for digital signals with electrical isolation and amplification.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1SVR405611R2100

Technical Specifications

• Type: RELAY
• UNSPSC Code: 39122300
• Brand: ABB
• Voltage: 250 Volt
• Amperage: 12 Amp
• Sub Brand: CR-M
• Applications: For Electrical Isolation, Amplification and Signal Matching Between the Electronic Controlling
• Power Rating: 1.6 VA
• Mounting Type: Socket Mount
• Number of Poles: 1 Pole
• Contact Material: Silver Nickel
• Operating Cycles: 20000000
• Temperature Rating: -40 to 55 degrees C
• Contact Configuration: SPDT - 2 CO
• Category: Interface Relays & Optocouplers
• Function: Pluggable miniature interface relay CR-M
• Rated Control Supply Voltage: 120 V AC
• Output Signal: 250 V / 12 A
• Output: 2 c/o (SPDT) contacts
• Contact material: silver-nickel alloy (AgNi)
• Product Main Type: CR-M
• Sub-Function: Relay with built in LED
• RoHS Status: Following EU Directive 2011/65/EU
• Object Classification Code: K
• ETIM 4: EC001437 - Switching relay
• ETIM 5.0: EC001437 - Switching relay
• ETIM 6.0: EC001437 - Switching relay
• ETIM 7: EC001437 - Switching relay
• eClass: 7.0 27371601
• Contact Current Rating: 12 A
• Contact Form: DPDT
• Contact Voltage Rating: 300 VAC
• Control Voltage: 120 V
• Current Rating: 12 A
• Manufacturer Part Number: 1SVR405611R2100
• Primary Type: Power Relays
• Relay Type: Interface
• Series: SVR Series
• Termination: Blade
• Voltage Rating: 250 V
• Product UPC: 66201936265
