ABB
Brand: ABB
SKU: 1SNA645005R0700
Availability: In Stock

Ships same day if ordered by 12 pm
$45.29
$45.29
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

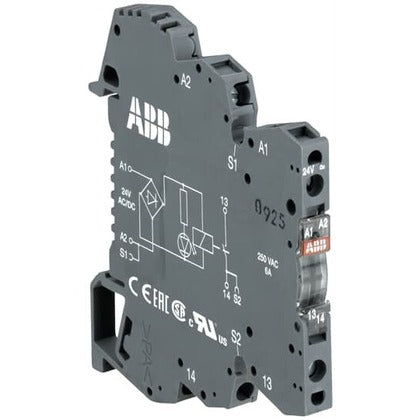

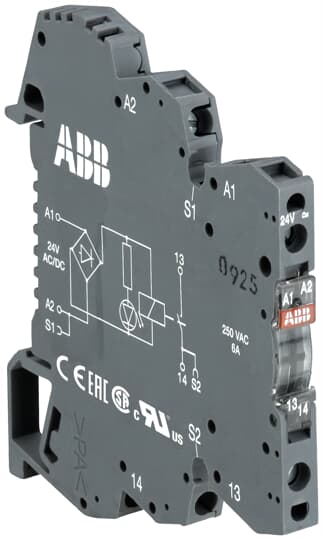

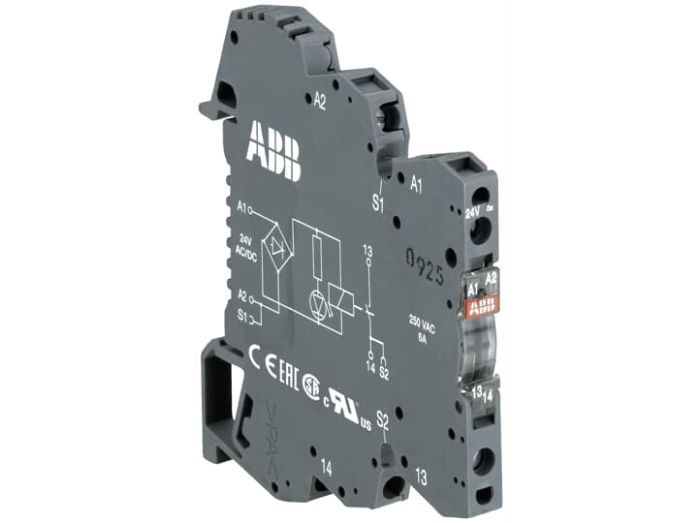

The ABB 1SNA645005R0700 RB121G-24VUC is a boxed interface relay R600 with a rated control supply voltage of 24 V AC / DC. It features screw terminals and an SPDT contact. The ABB screw clamp technology is designed to avoid accidental releases due to vibrations, shocks or even abusive cable draw.

  • Rated Control Supply Voltage 24 V AC / DC
  • Output Signal 5 ... 250VAC / 10mA ... 6A
  • Output 1 c/o (SPDT) contact

Product Highlights

This interface relay is ideal for connecting and distributing power in electrical installations, offering reliable performance and ease of use.

Product Information

Standard Information

  • Brand: ABB
  • Manufacturer Part Number: 1SNA645005R0700
Technical Specifications
Category
Interface Relays & Optocouplers
Function
Boxed interface relay R600
Rated Control Supply Voltage
24 V AC / DC
Output Signal
5 ... 250VAC / 10mA ... 6A
Terminal Type
Screw Terminals
Output
1 c/o (SPDT) contact
Contact material
silver-tin-oxide gold plated (AgSnO2/Au)
Product Main Type
R600
Sub-Function
Relay with built in LED
RoHS Status
Following EU Directive 2011/65/EU
Object Classification Code
K
ETIM 4
EC001437 - Switching relay
ETIM 5.0
EC001437 - Switching relay
ETIM 6.0
EC001437 - Switching relay
ETIM 7
EC001437 - Switching relay
eClass
7.0 27371601
Product Net Width
6 mm
Product Net Height
67.5 mm
Product Net Depth / Length
70 mm
Manufacturer Part Number
1SNA645005R0700
Manufacturer
ABB
Mounting Type
DIN Rail Mount
UNSPSC Code
39120000
Series
SNA Series
UPC Code
4013614507762
Voltage Rating
24 V
Primary Type
Power Relays
Relay Type
Interface
Termination
screw
Standards
CSA, cUR, EAC, UR
Coil Voltage
24 VAC, 24 VDC
Contact Current Rating
6 A
Contact Form
SPDT
Current Rating
6 A
Control Voltage
24 V
Contact Voltage Rating
24 VAC
Type
SPDT
Family Series
ABB Relays
Description
RB121A 24VAC/DC
Contacts
SPDT
Mounting
DIN Rail
Material
Gold Plated
Nominal Coil Voltage
24 VAC, 24 VDC
Comments
RB121G-24VUC
