Product Description

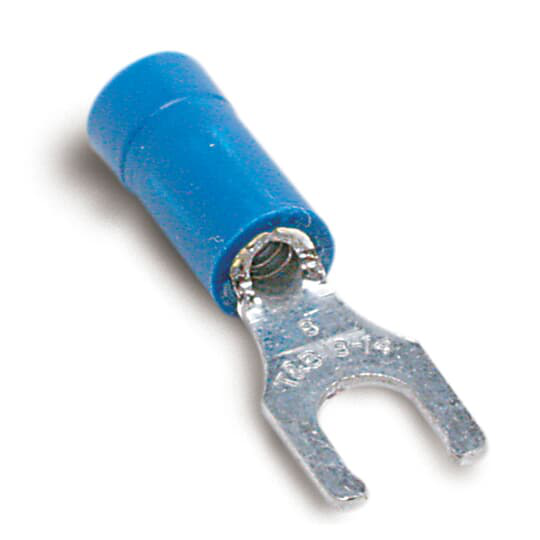

The ABB 14RB-10FL is a vinyl-insulated locking fork terminal designed for use with wire sizes ranging from eighteen to fourteen AWG. This terminal features a specialty tongue that allows it to connect securely, akin to a fork but maintains the grip of a ring. With a length of almost one inch and a width of nearly a third of an inch, it fits snugly onto bolts of size #10. The copper terminal is also electroplated with tin for enhanced conductivity and durability.
- Vinyl insulation offers protection and durability.
- Compatible with round conductors in the specified wire range.
- Designed to securely lock in place, preventing accidental disconnections.
Product Highlights
This terminal is suitable for various applications, including electrical systems requiring reliable connections.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Color: Blue
-
Material: Copper
-
Insulation Type: Insulated Vinyl
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 degrees C
-
Insulation Thickness: 0.03 inches
-
Maximum Insulation Diameter: 0.17 inches
-
Conductor Size: 18 to 14 AWG
-
Stud Size: #10
