Product Description

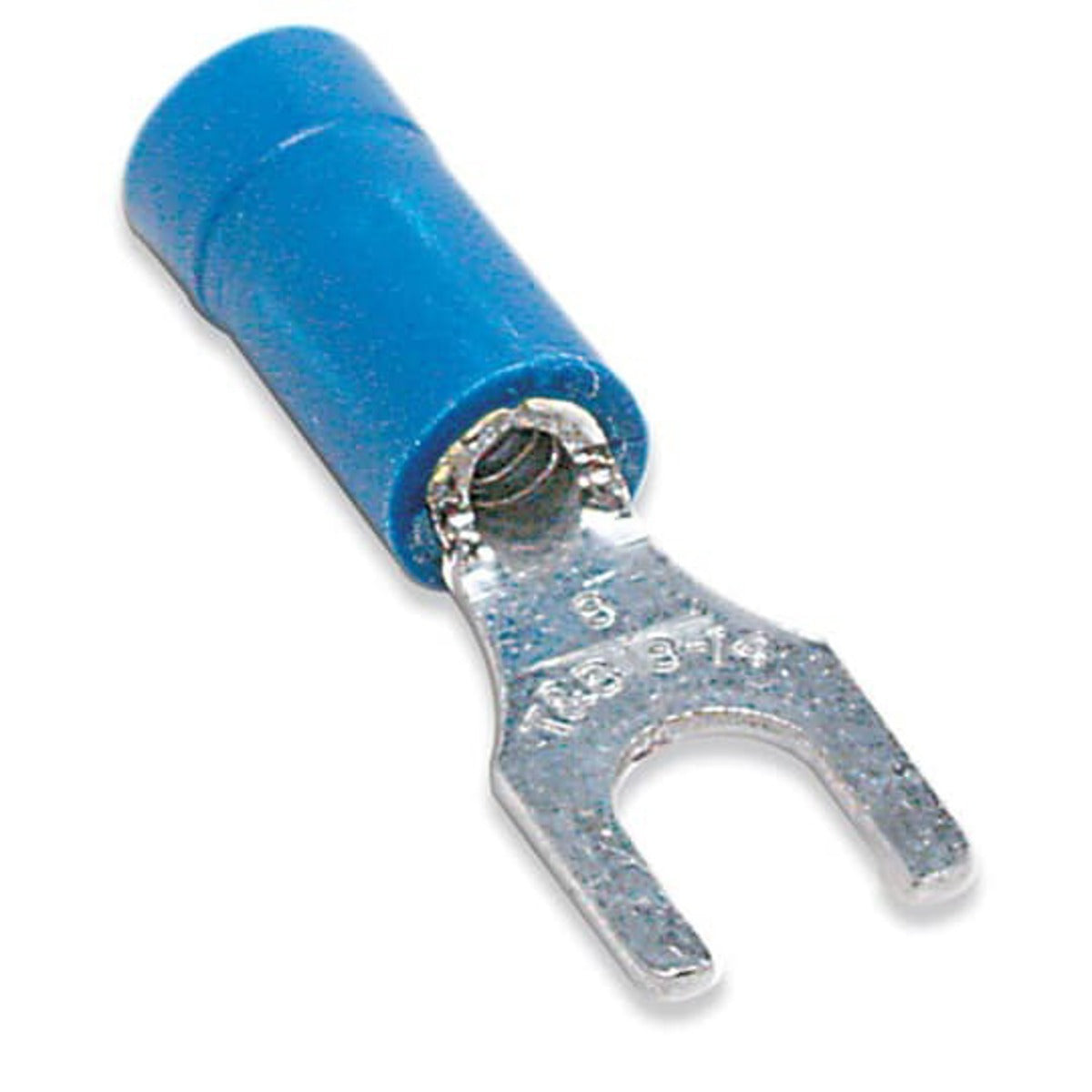

The ABB 14RB-10F is a vinyl-insulated fork terminal designed for #18-#14 AWG wire. It features a #10 bolt hole and is constructed from tin-plated copper. This terminal has a length of 0.97 inches, a width of 0.31 inches, and a maximum insulation of 0.170. It is rated for 600 Volt applications and is suitable for round conductors.
- Extra-long PVC insulation sleeve provides protection and stress relief at the wire's flex point.
- Brazed seam barrel is serrated for high pull-out value, ensuring a secure connection.
- UL Listed and CSA Certified, meeting established safety and performance standards.
Product Highlights
Features an extra-long PVC insulation sleeve and a brazed seam barrel for secure, reliable connections.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: 14RB-10F
-
Country of Origin: United States
Technical Specifications
-
Type: Short Sleeve
-
Finish: Tin Plated
-
Voltage Rating: 600 Volt
-
Material: Copper
-
Stud Size: #10
-
Sub Brand: Sta-Kon®
-
Thickness: 0.03 in
-
Used With: Round Conductors
-
Wire Size: 18-14 AWG
-
Barrel Type: Brazed Seam
-
Terminal Type: RB
-
Insulation Type: Insulated Vinyl
-
Flammability Class: Rated V-0 Per UL94
-
Temperature Rating: 105 degrees C
-
Insulation Material: PVC
-
Maximum Insulation: 0.170
-

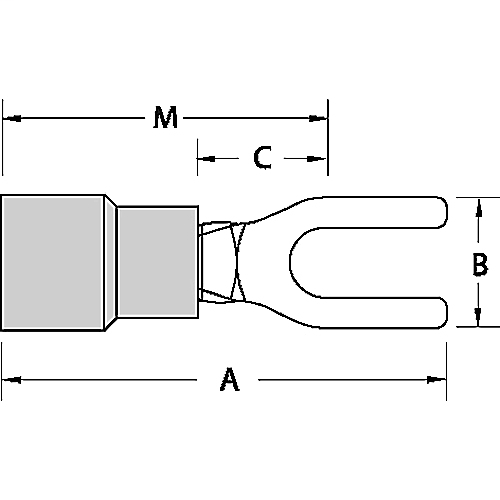

Length: 0.97 Inches
-
Width: 0.31 Inches
-
Color: Blue
-
Catalog Number: 14RB-10F
-
Certifications: CSA, UL
-
Category: Electrical terminals
-
Standard: UL E9809
-
RoHS Compliance: RoHS3 Compliant
-
TSCA Compliance: TSCA Section 6(h) Compliant
-
CSA Certification Details: 4503, 622302
-
UL Certification Details: E9809
-
ETIM Classification: EC001052 Solderless copper terminals for copper conductors
-
Flange Shape: Fork shape
-
Application Tools: WT145C, WT2000, WT112M, ERG4001
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UPC: 78621080070
-
UNSPSC: 39121432
-
USHTS: 8536904000
-
CNHTS: 8536901100
-
CAHTS: 8536900020
-
JPHTS: 853690000
-
TARIC: 8536901000
-
MXHTS: 8536902800
