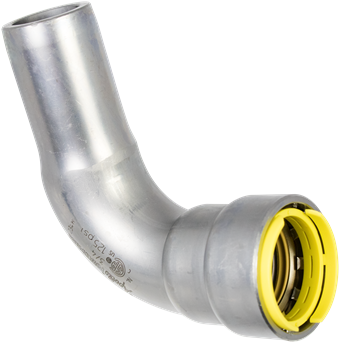

Aalberts Integrated Piping Systems PWR7481496 Apollo PowerPress Gas Bend 90° FØ 1 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7481496 Apollo PowerPress® 407-2G is a 90° bend designed for gas applications using thick wall steel pipe. This system significantly reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes from 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress Gas bend offers efficient installation and reliable performance for gas applications, with enhanced corrosion resistance and clear identification features.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481496
• Country of Origin: Netherlands

Technical Specifications

• DN1: 1"
• DN2: 1"
• angle: 90°
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: Bend
• connection type: press (DW), tube end
• sealing: HNBR
• brand: Apollo
• series: PowerPress Gas
• product type: 407-2G
• article: Apollo PowerPress Gas bend 90° FØ 1"
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• size: 1"
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 1-part
• Bend radius: 38mm
• Bend radius (imperial): 1.5"
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Wall thickness, connection 1: 2.9mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 25
• Outer pipe diameter connection 2: 33.4mm
• Outer pipe diameter connection 2 (imperial): 1.31"
• Connection 2: Soldered end
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• With connection indicator: Yes
• Additional Specifications: Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator
• Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified
• Sub Brand: PowerPress®
• Nominal Size: 1 IN
• Outside Diameter: 1.31 IN
• Series/Model: 407-2G
• Temperature Rating: -40 - 194 DEG F
• Wall Thickness: 0.11 IN
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
