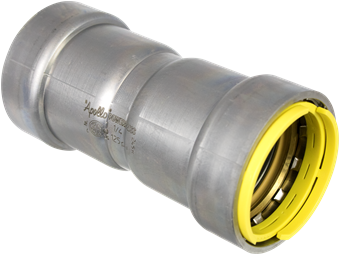

Aalberts Integrated Piping Systems PWR7481331 Apollo PowerPress Gas Straight Coupling FF 1 1/2 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7481331 Apollo PowerPress Gas 400G is a straight coupling designed for oil and gas applications using thick wall steel pipe. Installation times are significantly reduced with the Apollo PowerPress system, ensuring a clean working environment. It features DW-profile press fittings and valves in sizes from 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

Designed for gas applications using thick wall steel pipe, the Apollo PowerPress system reduces installation times and ensures a clean working environment.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7481331
• Country of Origin: Netherlands

Technical Specifications

• DN1: 1-1/2"
• DN2: 1-1/2"
• Shape: Straight
• Connection type: Press (DW)
• Sealing: HNBR
• Product group: Fittings
• ETIM class: EC003024 Fitting with 2 connections
• Intrastat code: 73079980
• Country of origin: Netherlands
• Brand: Apollo
• Series: PowerPress Gas
• Product type: 400G
• UNSPSC: 40172602
• Item group: 400G - Apollo PowerPress Gas coupling with stop (2 x press)
• Size: 1 1/2"
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 1-part
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 40
• Outer pipe diameter connection 1: 48.3mm
• Outer pipe diameter connection 1 (imperial): 1.9"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 40
• Outer pipe diameter connection 2: 48.3mm
• Outer pipe diameter connection 2 (imperial): 1.9"
• Wall thickness, connection 2: 3.4mm
• Wall thickness, connection 2 (imperial): 0.13"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 115mm
• Length (imperial): 4.53"
• Length of connection 1: 57.4mm
• Length of connection 1 (imperial): 2.26"
• Working length connection 1: 8.4mm
• Working length connection 1 (imperial): 0.33"
• Length of connection 2: 57.4mm
• Length of connection 2 (imperial): 2.26"
• Working length connection 2: 8.4mm
• Working length connection 2 (imperial): 0.33"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Material: Steel (St 35 (1.0308))
• Finishing: Zinc-nickel plated
