A Y MCDONALD 74761-22 Quarter Bend CTS Fitting

Product Description

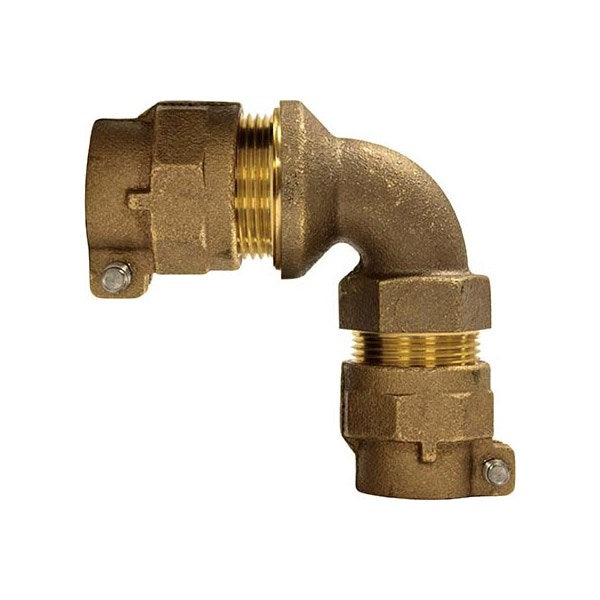

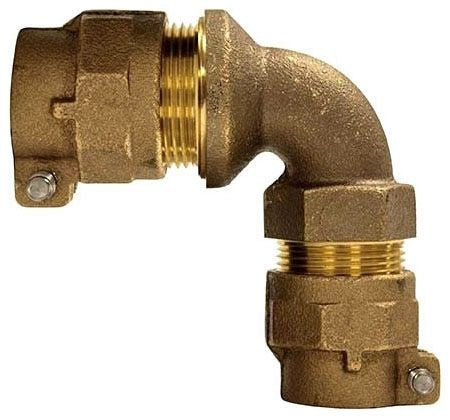

The A Y MCDONALD 74761-22 is a quarter bend fitting suitable for potable water systems. This fitting has a 90-degree bend and is made from lead-free brass, ensuring safety and compliance with industry standards.

• 90-degree quarter bend design for directional flow
• CTS compression end connections for secure fitting
• Compatible with flexible plastic connections when properly installed

Product Highlights

The A Y MCDONALD 74761-22 quarter bend fitting allows for efficient redirection of water flow in plumbing applications.

Product Information

Standard Information

• Brand: A Y MCDONALD
• MPN: 74761-22

Technical Specifications

• Part Type: Fittings
• Angle: 90 Degree
• Application: Potable Water
• Material: Brass
• Material Specification: ASTM B584
• Applicable Standard: ANSI/AWWA C800, NSF/ANSI 61/372
• End Connection: CTS Compression x CTS Compression
• Inlet Connection: CTS - 22 Series Pak Nut
• Outlet Connection: CTS -22 Series Pak Nut
• Insert Stiff Req: Must be used on flexible plastic connections
• Product Line: Water Works
• Commercial Category: Service Fittings
• Commercial Sub Category: Quarter Bends-COMP
• Commercial Style: CTSxCTS
• Connection Type: Pack Joint (CTS) x Pack Joint (CTS)
• Standards Met: NSF 61, AWWA C800, UNS C89833, ASTM B584, NSF 372
• Lead Free: Yes
