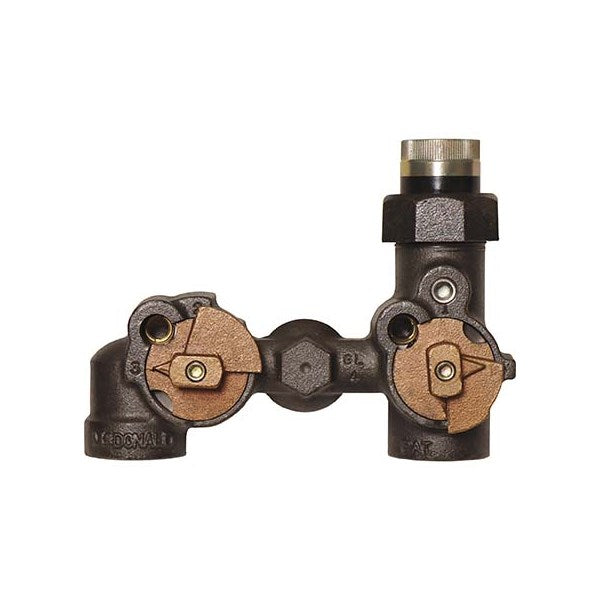

A Y McDonald 6312 Bypass Meter Bar 6 C-C

Product Description

The A Y McDonald 6312 is a bypass meter bar designed for natural gas applications. This product features FNPT inlet and outlet connections and offers a meter bar spread of six inches. The unit includes an integral one-inch, two-port valve as well as an integral one-inch, three-port valve.

• Features FNPT inlet and outlet connections
• Includes integral two-port and three-port valves
• Designed for residential natural gas applications

Product Highlights

This bypass meter bar is ideal for ensuring accurate measurement and flow control in natural gas systems.

Product Information

Standard Information

• Part Type: Bypass Meter Bar
• Series: 6312-FFD

Technical Specifications

• Inlet Connection: FNPT
• Outlet Connection: FNPT
• Inlet Connection Size: one inch
• Outlet Connection Size: one inch
• Coating: Black
• Meter Bar Spread: six inches
• Meter Bar Type: Bypass Meter Bar with one integral, one-inch, two-port valve and one integral, one-inch, three-port valve
• Tap Location: Position E (Outlet Top)
• Tap Plug Size: quarter inch NPT recessed hex head plug
• Meter Swivel Size: one inch
• Pressure Rating: five psi
• Product Line: Natural Gas
• Product Class: 332
• Commercial Category: Bypass Meter Bar Residential
• Commercial Sub Category: Rear Center Inlet-Vertical Outlet
• Commercial Style: six inch Spread-BMBR-RCI-VO
