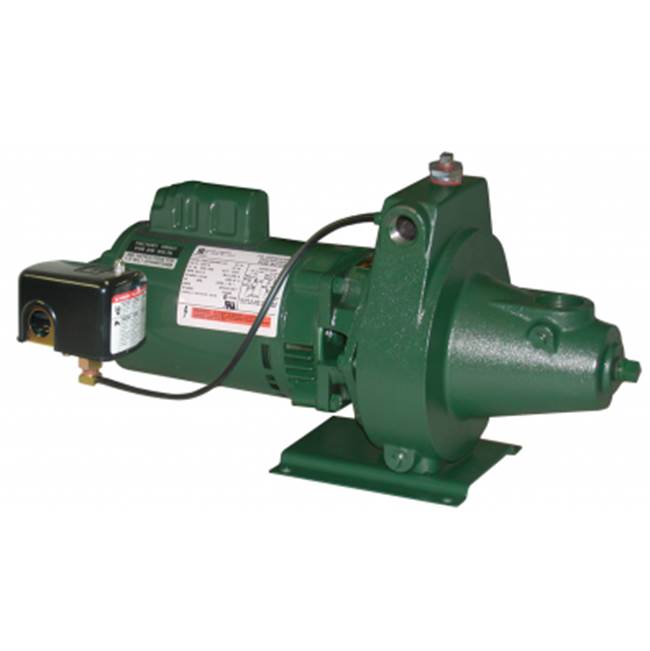

A Y MCDONALD 6158-106 8110 NJ SW JET PUMP 1HP NORYL

Product Description

A Y McDonald 6158-106 is a shallow well jet pump with a flow rate of 15 gallons per minute. This high-capacity pump is designed for domestic use and features a 1 horsepower motor. The pump includes a 1-1/4 inch inlet and can discharge water using a 3/4 inch side or a 1 inch top outlet.

• Includes 1-1/4 inch suction pipe
• Enclosure type is NEMA J
• 5 feet maximum suction lift capacity

Product Highlights

This product is built with a cast iron structure for durability. It is designed for easy installation and reliable operation in shallow well applications.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Warranty: Limited

Technical Specifications

• Horsepower: 1 hp
• Voltage Rating: 115/230 VAC
• Amperage Rating: 8.8 A
• Flow Rate: 15 gpm
• Dimensions: 20 in L x 10 in H
• Maximum Pressure: 50 psi
• Maximum Suction Lift: 5 ft
• Material: Cast Iron
• Inlet Size: 1-1/4 in
• Outlet Size: 3/4 in Side/1 in Top
• Domestic/Import: Domestic
