A.Y. Mcdonald 5182-167 Ball Corp AWWA X CTS 2 in.

Product Description

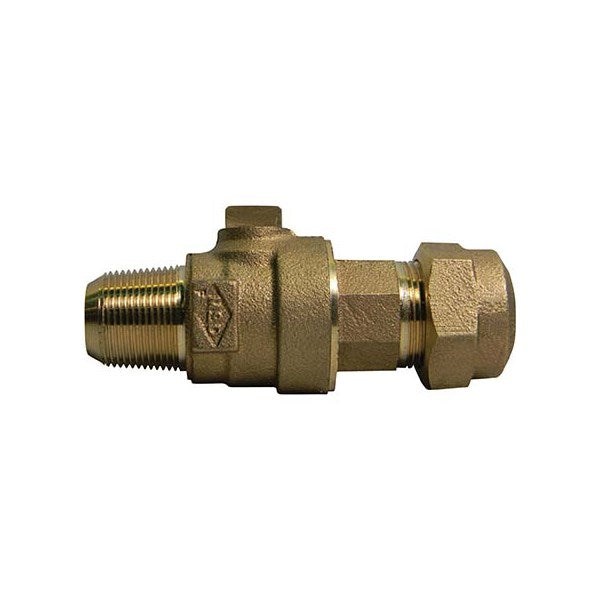

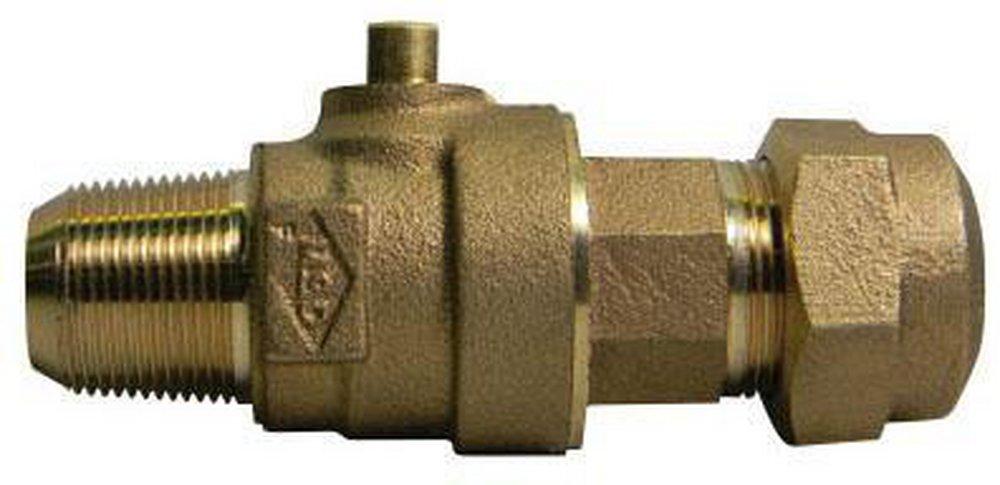

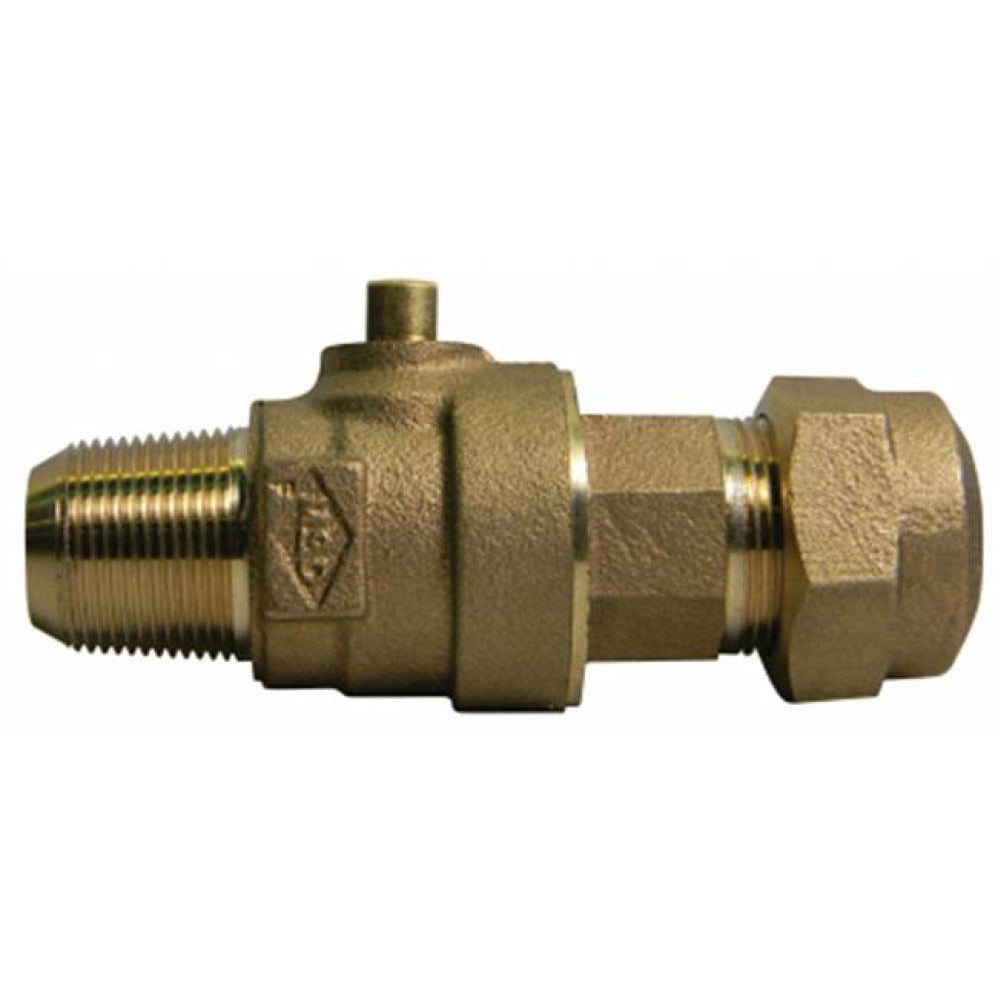

A.Y. MCDONALD 5182-167 is a ball style corporation stop made from no-lead brass with male AWWA/CC thread inlet, full port ball opening and CTS Q McQuik Compression thread outlet. It incorporates an O-ring sealed, blow-out proof, 360 deg rotation, standard operating head. Valve is designed for maximum operation pressure of 300 psig.

• PTFE coated brass ball rotates 360 deg
• Blow-out proof EPDM port seals
• End piece joint sealed with an EPDM O-Ring and thread locker

Product Highlights

The valve includes a PTFE coated brass ball supported by two blow-out proof EPDM reinforced port seals. End piece has dual seal which includes an O-ring and thread locker which also prevents accidental removal.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5182-167

Technical Specifications

• Body Material: BRASS
• End Style: AWWA/CC x -22 CTS Compression
• Nominal Size: 2 in
• Softgoods Material: EPDM
• Ball Material: BRASS
• Manufacturer: A.Y. McDonald
• Manufacturer #: 5182-167
• Media: Water
• Pressure Rating: 300 psi
• Top to Inlet Center: 2.46
• Trim Material: EPDM Seal
• Part Type: Corp Stop
• Series: 74701BQ
• Inlet Connection: AWWA
• Outlet Connection: CTS Q-Series 16P
• Inlet Connection Size: 2
• Outlet Connection Size: 2
• Insert Stiff Req: Must be used on flexible plastic connections
• Ball Plug: Ball
• Di Electric: No
• Tracer Wire: No
• Operating Head Rotation: 360
• Valve Size: 2
• Product Line: Water Works
• Product Class: 440
• Commercial Category: Corporation Stops
• Commercial Sub Category: Corp Stops-AWWA-Ball Style
• Commercial Style: AWWAxCTS
• Product Type: Plumbing Part
