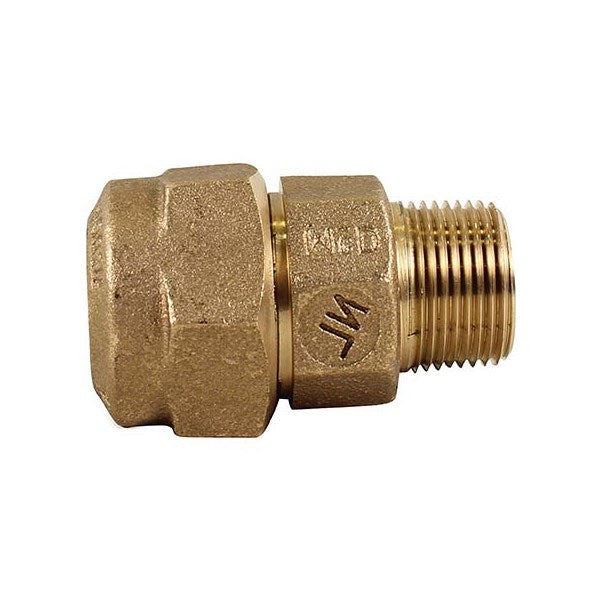

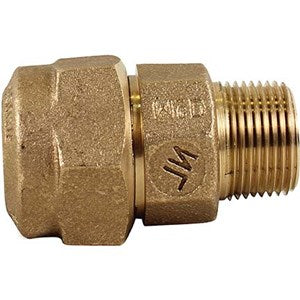

A.Y. Mcdonald 5182-000 Adapter 74753Q

Product Description

The A.Y. MCDONALD 5182-000 adapter belongs to the 74753Q series and features a Q CTS compression inlet connection and a MNPT outlet connection. It is designed for use with flexible plastic connections. This adapter is suitable for cold potable water applications and meets AWWA C800 standards.

• Large wrench flats provided for proper installation
• Insert stiffeners required on all flexible plastic connections
• Manufactured in compliance with ANSI/AWWA C800

Product Highlights

The A.Y. McDonald 5182-000 adapter is made in the USA and designed for cold potable water applications.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5182-000
• Country of Origin: United States of America

Technical Specifications

• Part Type: Adapter
• Series: 74753Q
• Inlet Connection: CTS Q-Series Comp (W/Stop)
• Outlet Connection: MNPT
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Insert Stiff Req: Must be used on flexible plastic connections
• Product Line: Water Works
• Product Class: 412
• Commercial Category: Service Fittings
• Commercial Sub Category: Straight MNPT Adapters
• Commercial Style: CTSxMNPT
• Nominal Size: 1 Inch
• End Style: Q CTS Compression x MNPT
• Material: Brass
• Material Specification: ASTM B584, UNS C89833
• Domestic/Import: Domestic
• Fitting/Connector Type: Coupling
• Type: Octagonal Straight
• Standard/Approvals: UNS C89833|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.|ANSI/AWWA C800|ASTM B584|NSF/ANSI 61/372
• Additional Information: Octagon Nut
• Connection Type: CTS Compression x MNPT
• Fitting Size: 1 in
