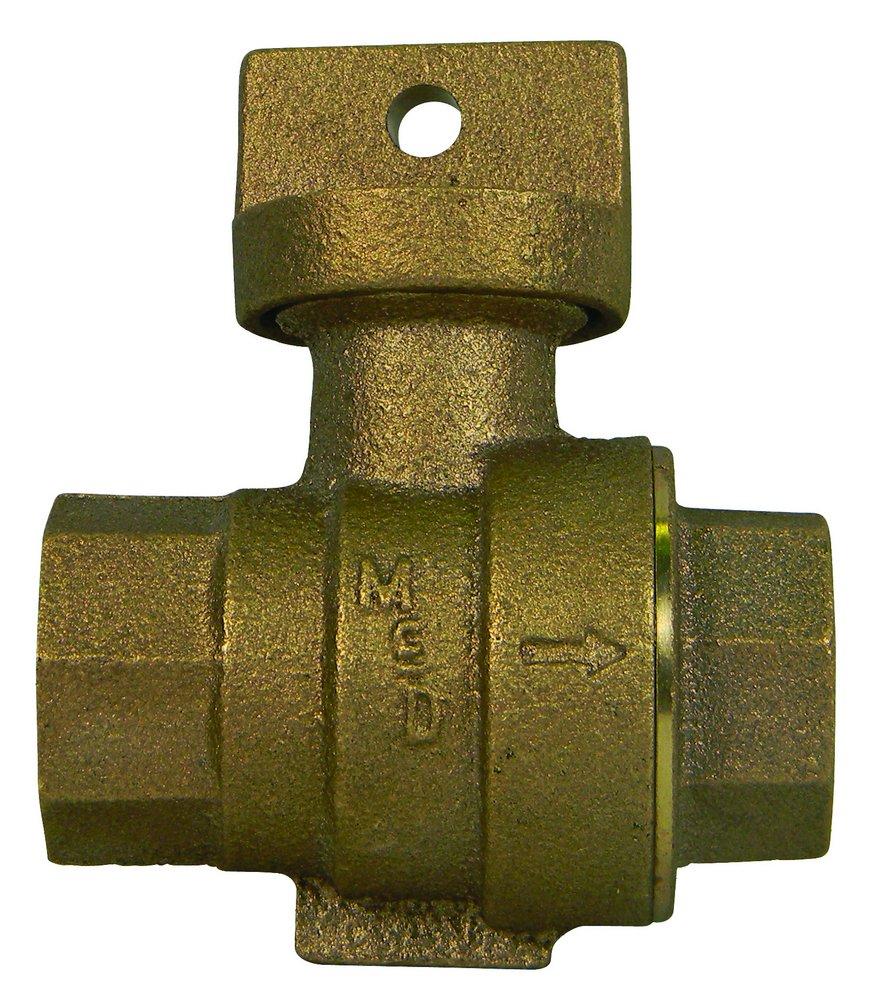

A.Y. McDonald 5131-306 1-1/2 in. FIP Stop and Drain Ball Valve

Product Description

A.Y. McDonald 5131-306 is a 1-1/2 inch FIP stop and drain ball valve. It features a brass body with a PTFE coated brass ball for enhanced durability and performance. The blow-out proof EPDM port seals ensure reliable operation under pressure.

• Leak-free operation with a maximum pressure rating of 150 psi.
• PTFE coated brass ball for smooth operation.
• EPDM seals for enhanced protection against leaks.

Product Highlights

This ball valve is designed for water service applications, providing effective control and drainage. Its straightforward design allows for ease of use and installation.

Product Information

Standard Information

• Brand: A.Y. McDonald
• MPN: 5131-306

Technical Specifications

• Nominal Size: 1-1/2 inches
• Inlet to Outlet Length: 4.88 inches
• Top to Inlet Center: 3.4 inches
• Body Material: Brass
• Ball Material: Brass
• Softgoods Material: EPDM
• Pressure Rating: 150 psi
• End Style: FNPT
