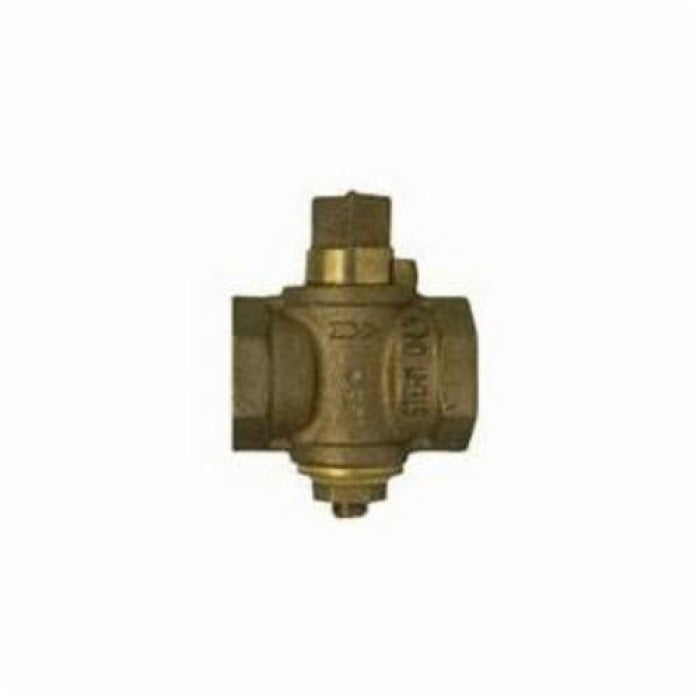

A.Y. McDonald 4213-156 9702 1/2 SQ HD STEAM STOP L/CHK 125#

Product Description

The A.Y. McDonald 4213-156 is a plug valve designed for steam applications. It features a square head and is made from durable cast bronze. The valve has a nominal size of 1/2 inch and is suitable for use in FNPT systems, operating up to a pressure rating of 125 psi and a temperature rating of 250 degrees Fahrenheit.

• Constructed for steam media only
• Non-potable use only
• Meets ANSI B1.20.1 standards

Product Highlights

This plug valve is built for high-temperature steam systems. It utilizes a tapered design for effective sealing and has dimensions that fit standard installations.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald MFG CO
• Series: 9702

Technical Specifications

• Body Material: Bronze
• Dimensions: 2.79 inches H
• Inlet to Outlet Length: 2.14 inches
• Top to Inlet Center: 1-1/2 inches
• End Style: FNPT
• Temperature Rating: 250 degrees F
• Pressure Rating: 125 psi
• Nominal Size: 1/2 inch
