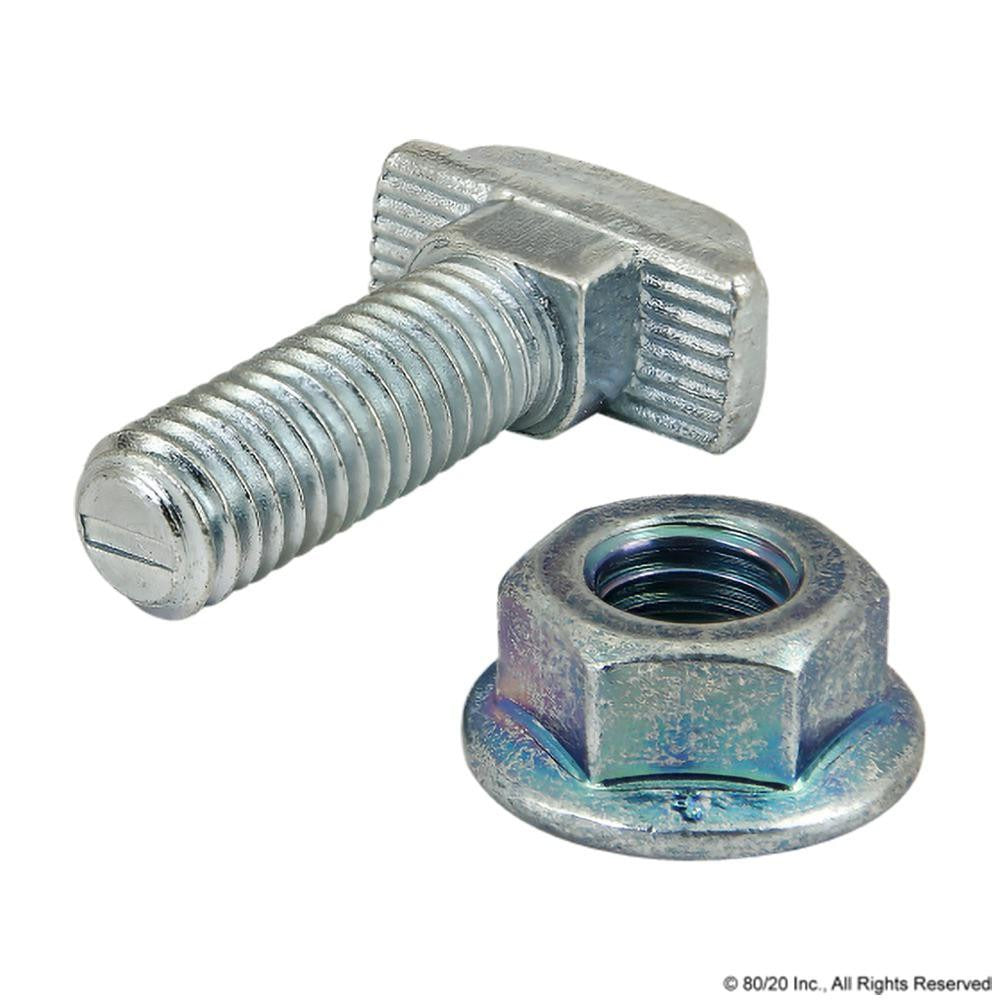

80/20 Inc. 75-3635 Drop-in T-slot Stud with Nut

Product Description

The 80/20 INC. 75-3635 is a drop-in T-slot stud with nut designed for use in aluminum T-slot framing systems. The stud drops directly into the T-slot channel without disassembly of the extrusion, allowing hardware to be positioned or repositioned quickly during assembly. Constructed from zinc-plated steel with a blue finish, the 75-3635 provides corrosion resistance and a visible indicator for component identification. At 30.8 inches in overall length, it is suited for spanning longer channel runs or securing hardware across extended sections of extrusion. This fastener is installed by fabricators, machine builders, and industrial assembly technicians working with modular framing systems.

The 75-3635 is intended for use with 80/20 INC. 45 Series T-slot extrusion profiles. It is commonly used in workstation fabrication, machine guarding, conveyor framing, and other modular structural builds where tool-less or minimal-tool fastener access is required. The drop-in design eliminates the need to feed hardware from the end of the extrusion, which is especially practical during mid-assembly modifications or field installations where channel ends may not be accessible.

Key Features

• Drop-in design allows stud insertion directly into the T-slot channel without end-feeding
• Compatible with 45 Series T-slot extrusion profiles
• Steel construction with zinc-plated finish for corrosion resistance
• Blue color finish aids in component identification during assembly
• 30.8 inches overall length suits extended channel spans and longer fastening runs
• Includes nut - no separate hardware required for basic installation

Compatibility

Designed for use with 80/20 INC. 45 Series T-slot extrusion profiles.

Installation Notes

Installation is typically performed by fabricators or assembly technicians working with modular aluminum framing systems. Before inserting the stud, ensure the T-slot channel is clear of debris and that the extrusion is secured or supported to prevent movement during fastening. Tighten the included nut to the torque appropriate for the application per the framing system manufacturer guidelines. Follow all applicable structural and machine safety standards for the finished assembly.
