Product Description

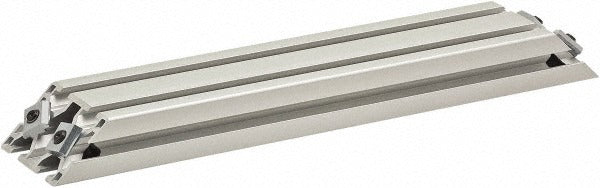

The 80/20 INC. 30-2567 is a 45-degree T-slotted extrusion support assembly designed for use with 3060 series aluminum extrusion profiles. This support provides a rigid, diagonal brace between extrusion members, transferring load at a 45-degree angle to improve structural stability in framed assemblies. The 30-2567 ships pre-machined with counterbores and a 45-degree miter angle on both ends, and includes socket head cap screws, washers, and self-aligning T-nuts. The clear anodized aluminum construction keeps the connection flush and clean, making it well-suited for precision fabrication environments where appearance and dimensional accuracy matter. Fabricators, machine builders, and industrial maintenance technicians are the typical installers.

This support assembly is used in modular framing systems built on the 80/20 30-series T-slot platform. It is designed specifically for use with 3060 extrusion profiles and is commonly found in workstation frames, machine guards, conveyor supports, shelving structures, and custom industrial enclosures. The 45-degree miter angle on each end ensures a tight, flush interface with the mating extrusion slot, eliminating the need for additional machining at the jobsite. This assembly is appropriate for both light commercial and industrial applications where modular aluminum framing is specified.

Key Features

• Pre-machined 45-degree miter angle on both ends for flush, tight connections to mating extrusion slots
• Counterbored fastener holes provide a clean, flush surface finish at connection points
• Includes socket head cap screws, washers, and self-aligning T-nuts - no separate hardware required
• Clear anodized finish for corrosion resistance and consistent appearance
• Compatible with 80/20 30-series T-slot system for drop-in integration with existing assemblies
• 320 mm (approximately 12.6 inches) overall depth for substantial diagonal span coverage

Compatibility

Designed for use with 3060 series T-slotted aluminum extrusion profiles in the 80/20 30-series modular framing system.

Installation Notes

Installation is typically performed by fabricators or maintenance technicians familiar with T-slot extrusion assembly. Power down or de-energize any connected equipment before modifying a structural frame. Insert the included T-nuts into the appropriate extrusion slots before positioning the support, as post-installation insertion is not always possible depending on the assembly configuration. Tighten socket head cap screws with the appropriate hex key to the extrusion manufacturer-recommended torque specification for the 30-series fastener.
