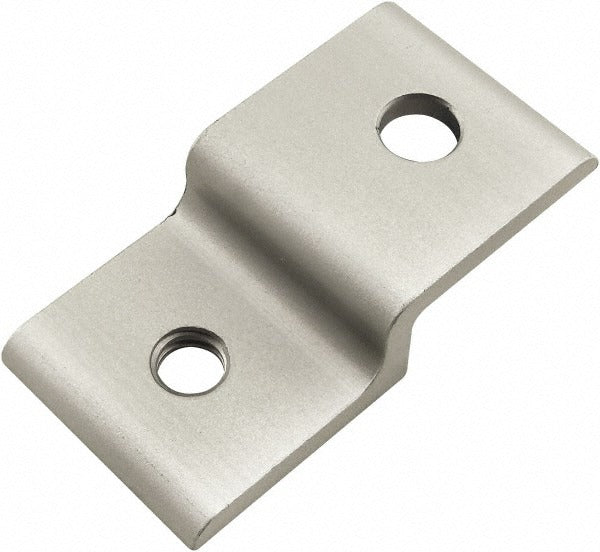

80/20 Inc. 30-2434 Single Panel Retainer 30 Series

Product Description

The 80/20 INC. 30-2434 is a Single Arm Narrow Panel Retainer designed for mounting panels within the T-slot channel or on the profile frame of 30 Series aluminum extrusion assemblies. Constructed from clear anodized aluminum, this retainer provides a strong, stable fastening point that reduces vibration in the assembled structure. It measures 58 inches in overall length and 30 millimeters in width, with a 5/32-inch thickness and two mounting holes threaded at M6x1. A set screw is included. This component is installed by fabricators, machine builders, and industrial assembly technicians working with modular framing systems.

The 30-2434 is suited for use in modular framing and shelving applications built on the 80/20 30 Series profile system. It is designed for scenarios where a panel must be recessed within the T-slot or secured flush to the profile frame, providing stability without complex tooling. Typical applications include machine enclosures, workstation panels, and industrial shelving assemblies where vibration resistance and clean panel mounting are required.

Key Features

• Single arm narrow profile retainer rated for 30 Series T-slot extrusion systems
• Clear anodized aluminum construction resists corrosion and wear
• 58-inch overall length accommodates full-span panel mounting runs
• Two M6x1 mounting holes for secure, repeatable attachment
• Set screw included for tool-accessible installation and adjustment
• Reduces vibration in panel assemblies mounted on profile frames

Compatibility

Designed for use with 80/20 30 Series bolt kits 75-3615 and 11-8312 for panel retainer installations within 30 Series T-slot profile assemblies.

Installation Notes

Installation is performed by fabricators or technicians familiar with modular aluminum extrusion systems. De-energize any electrical or pneumatic systems integrated into the frame before servicing or mounting panel retainers. Standard hex keys or Allen drivers are typically used to seat the set screw. Follow the assembly system manufacturer guidelines for fastener engagement depth and panel clearance to ensure proper fit and vibration resistance.
