80/20 Inc. 25-4119 Inside Corner Bracket 25 Series 22 in

Product Description

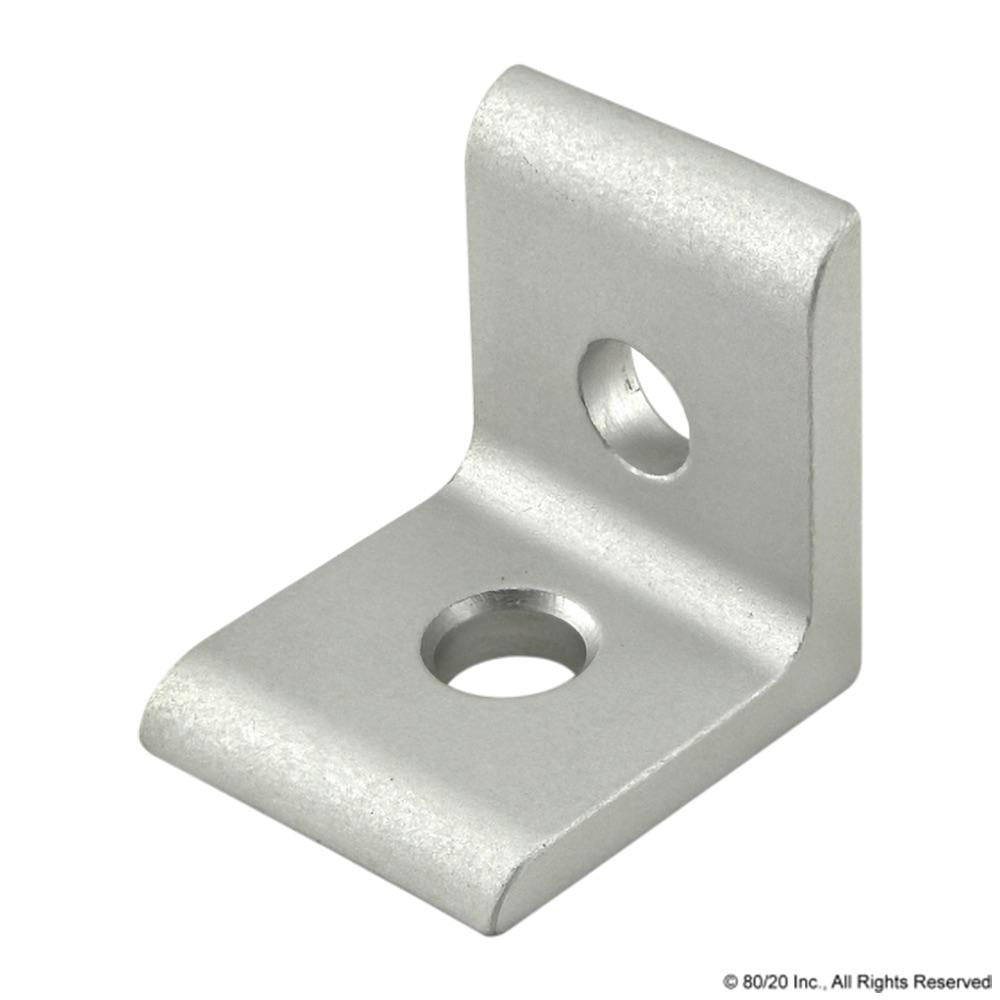

The 80/20 INC. 25-4119 is a 2-hole inside corner bracket designed for use with 25 Series aluminum extrusion systems and Bolt Kit 75-3404. Manufactured from aluminum with a clear anodized finish, this bracket measures 22 inches in overall length and provides a 90-degree connection point for framing assemblies. It features a 2-degree drop-lock mechanism that allows positioning along the extrusion before locking into place, making alignment and assembly faster and more repeatable. The bracket weighs 0.25 pounds. It is installed by fabricators, machine builders, and industrial maintenance technicians working with modular T-slot framing.

This bracket is used in applications where an inside corner joint is required within a 25 Series T-slot aluminum framing system. Typical install scenarios include machine guarding, workstation frames, enclosures, and structural support assemblies that require a clean interior corner connection. The 2-hole mounting configuration provides a stable, rigid connection at the joint. Pairing with Bolt Kit 75-3404 is required for proper installation.

Key Features

• 90-degree inside corner connection for 25 Series T-slot extrusion
• 2-degree drop-lock feature allows positioning along the extrusion before securing
• 2 mounting holes for a stable, rigid joint
• Aluminum construction with clear anodized finish for corrosion resistance
• 22-inch overall length suits larger framing spans
• Designed for use with Bolt Kit 75-3404

Compatibility

Designed for use with 80/20 INC. 25 Series T-slot aluminum extrusion and Bolt Kit 75-3404.

Installation Notes

Installation is typically performed by fabricators or maintenance technicians familiar with T-slot aluminum framing systems. Ensure the extrusion profile is fully de-energized and free of load before modifying any structural connection. Use the appropriate T-slot hardware and torque the fasteners according to the Bolt Kit 75-3404 specifications provided by the manufacturer. Follow all applicable structural assembly guidelines for the intended load environment.
