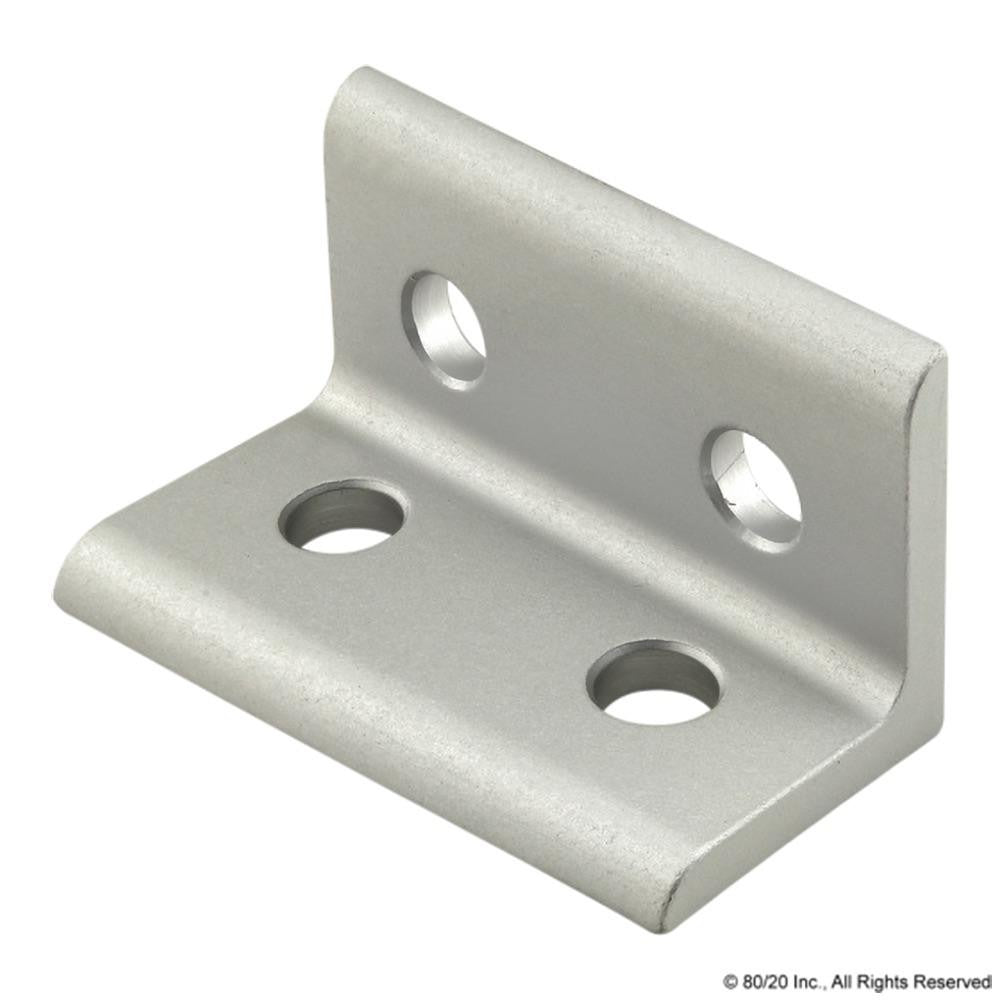

80/20 Inc. 25-4113 Inside Corner Bracket 25 Series

Product Description

The 80/20 INC. 25-4113 is a 4-hole inside corner bracket designed for use with 25 Series T-slot aluminum framing systems. Made from aluminum with a clear anodized finish, it creates rigid 90-degree inside corner connections within modular structural assemblies. The bracket features a 2-degree drop-lock geometry that locks components into position during assembly, simplifying alignment before final fastening. At 47 inches in overall length, it spans extended corner joints in larger frame builds. This bracket requires the 75-3404 bolt kit for proper installation and is intended for use by fabricators, machine builders, and industrial maintenance professionals working with T-slot framing.

The 25-4113 is suited for modular workstations, machine guards, enclosures, and structural frames built on the 80/20 25 Series platform. Its inside corner profile allows it to sit flush within frame assemblies where external brackets would interfere with panels or adjacent components. The clear anodized aluminum finish provides corrosion resistance for light industrial environments. This bracket is appropriate for both new builds and retrofit or expansion projects using existing 25 Series extrusion.

Key Features

• 4-hole mounting pattern for secure, distributed load connection at inside corners
• 2-degree drop-lock geometry holds components in position during assembly
• 90-degree inside corner connection for T-slot framing assemblies
• Aluminum construction with clear anodized finish for corrosion resistance
• 47-inch overall length spans extended corner joints in larger frame structures
• Designed for use with 80/20 bolt kit 75-3404

Compatibility

Designed for use with 80/20 INC. 25 Series T-slot aluminum extrusion framing systems. Requires bolt kit 75-3404 for installation.

Installation Notes

Installation is performed by fabricators or maintenance technicians familiar with T-slot aluminum framing systems. Power down any electrical or pneumatic systems integrated into the frame before modifying structural components. Use the specified 75-3404 bolt kit to ensure proper fastener engagement with the extrusion channel. Follow the framing system manufacturer guidelines for torque and assembly sequence.
