80/20 Inc. 2494 Panel Wire Mesh Retainer Series 10

Product Description

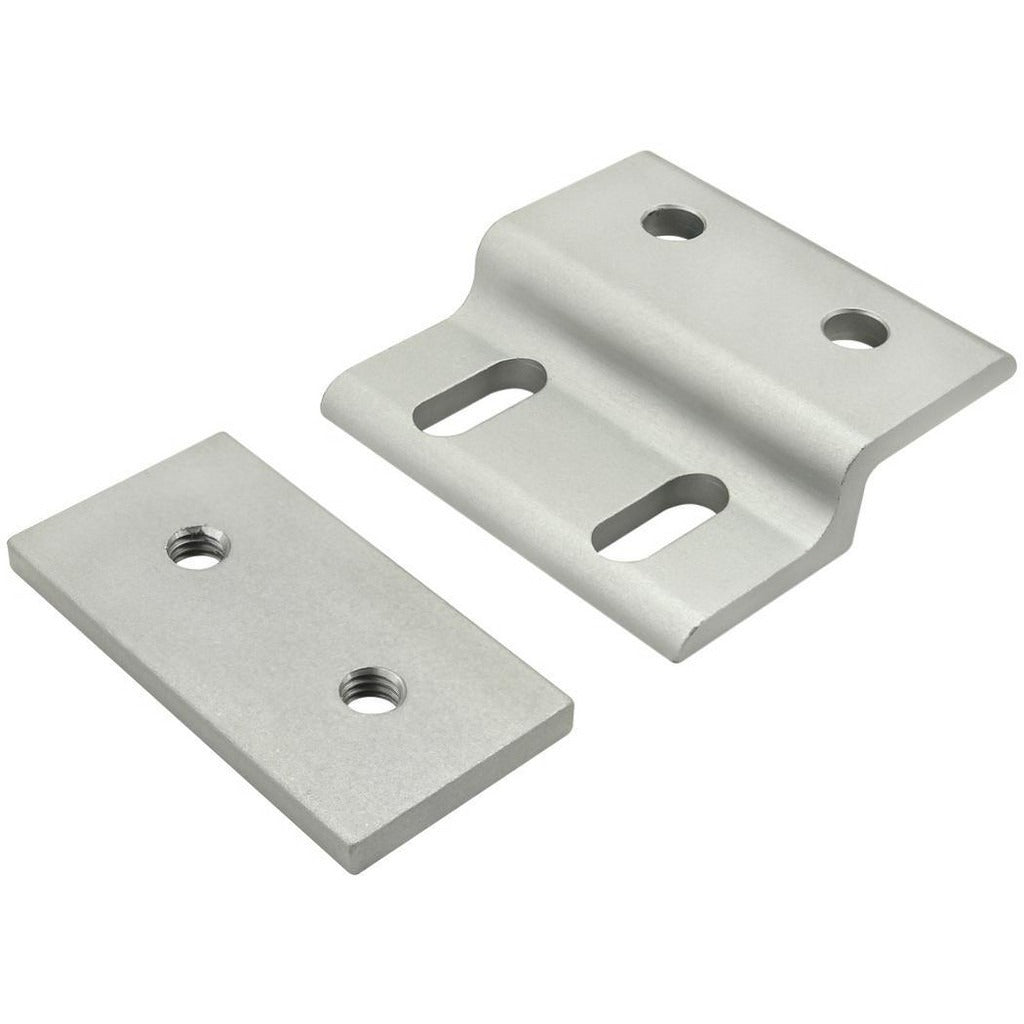

The 80/20 INC. 2494 is a single arm wide mesh retainer with a wide backing plate, designed for securing wire mesh panels within Series 10 aluminum framing systems. The assembly consists of one single arm wide mesh retainer and one wide backing plate. At 1.935 inches in overall length and 1 inch in width, it is compact and sized for precise fit within the Series 10 profile. The anodized aluminum construction provides a clear finish with corrosion resistance suited to light industrial and shelving environments. Hardware to attach the backing plate to the retainer must be selected based on the wire mesh panel type and thickness used in the application.

The 2494 is intended for use with Series 10 aluminum framing in shelving and panel-based assemblies. It is a common component in modular framing builds where wire mesh panels are retained within extruded aluminum structures. Fabricators and assembly technicians working with 80/20 Series 10 systems select this retainer when a wide backing plate configuration is required for added panel support. It is packaged as a single-unit quantity and ordered in individual multiples.

Key Features

• Single arm wide mesh retainer paired with a wide backing plate for secure panel retention
• Designed for Series 10 aluminum framing systems
• Anodized aluminum construction with clear finish for corrosion resistance
• Overall length of 1.935 inches and width of 1 inch for a compact, precise fit
• 6 mounting holes for secure attachment to framing
• Backing plate hardware selected based on wire mesh panel type and thickness

Compatibility

Designed for use with 80/20 Series 10 aluminum framing systems where wire mesh panel retention is required in shelving or modular framing assemblies.

Installation Notes

Installation is typically performed by fabricators or assembly technicians familiar with modular aluminum framing systems. Hardware used to attach the wide backing plate to the retainer must be selected based on the specific wire mesh panel type and its thickness - no universal hardware is included with this component. Ensure the framing structure is stable and free of load before inserting or repositioning retainer components. Refer to the 80/20 Series 10 system documentation for channel orientation and slot engagement guidance.
