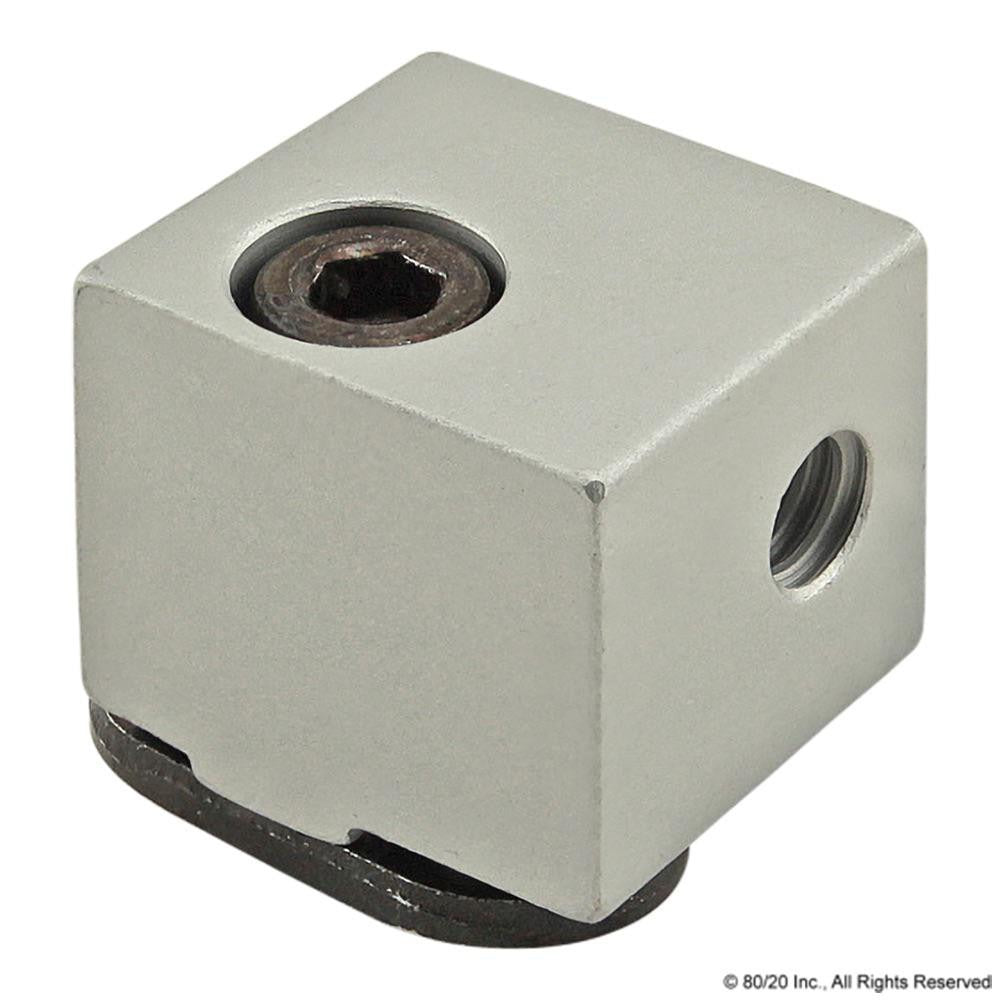

80/20 Inc. 2427 Panel Mount Block Series 10

Product Description

The 80/20 INC. 2427 is an aluminum panel mount block designed for use with 80/20 Series 10 T-slot framing systems. It provides a secure attachment point for panels, enclosures, or flat stock within a Series 10 assembly. The block measures 0.812 inches in length and 0.700 inches in height, with a clear anodized finish that resists corrosion and wear. Weighing just 0.05 pounds, it is a lightweight hardware component suited for machine builders, fabricators, and systems integrators working with modular aluminum framing.

This panel mount block is used in industrial, automation, and structural framing applications where flat panels or sheet materials need to be retained within a Series 10 T-slot profile framework. It is appropriate for workstations, machine guards, enclosures, and display frames built on the 80/20 Series 10 modular platform. Installation is straightforward and does not require specialized tooling beyond standard hand tools.

Key Features

• Designed specifically for 80/20 Series 10 T-slot framing systems
• Aluminum construction with clear anodized finish for corrosion resistance
• Compact form factor: 0.812 inches long, 0.700 inches tall
• Lightweight at 0.05 pounds - minimal impact on frame load calculations
• Panel mount style provides flush, stable retention of flat stock or panel materials

Compatibility

Designed for use with 80/20 Series 10 T-slot aluminum framing profiles.

Installation Notes

Installation is typically performed by machine builders, fabricators, or maintenance technicians working with modular T-slot framing. Ensure the Series 10 frame profile is properly supported and secured before inserting or adjusting mount blocks. Standard hand tools are sufficient for assembly. Follow the framing system manufacturer's assembly guidelines for proper panel retention and load distribution.
