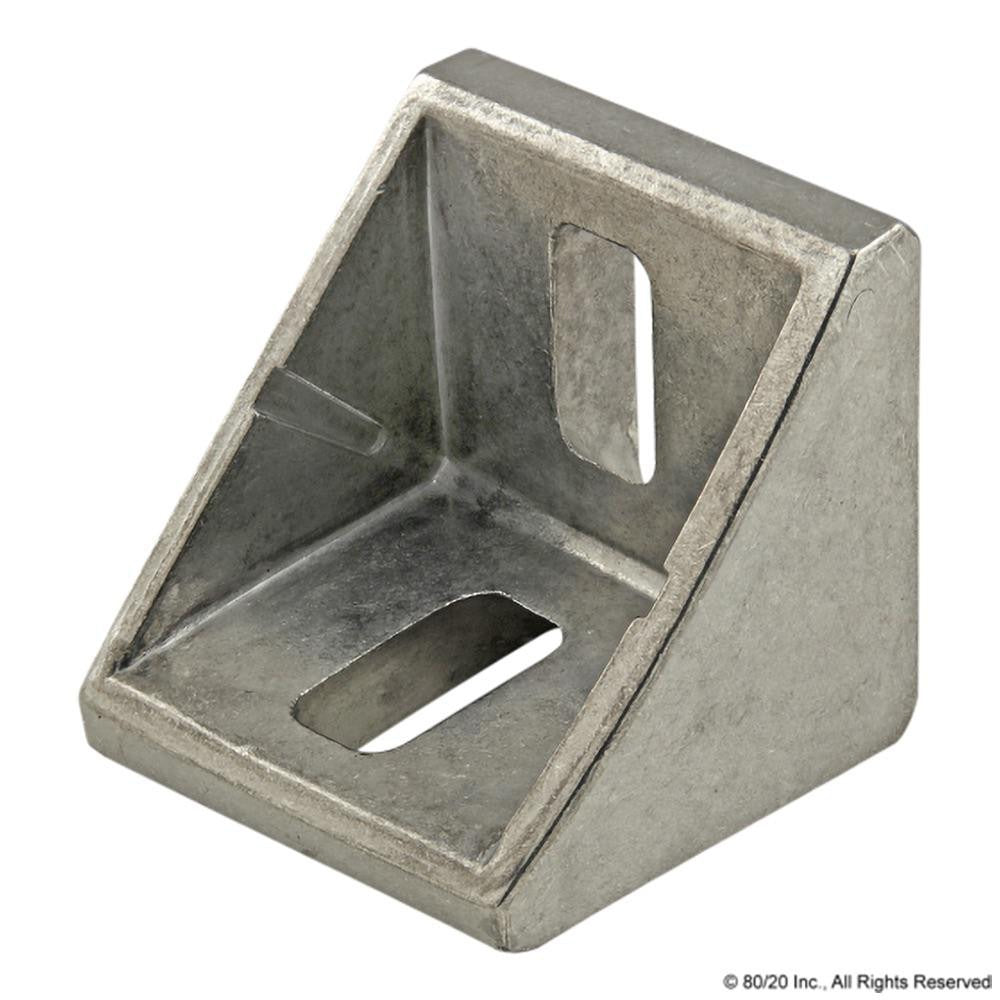

80/20 Inc. 14085 Corner Bracket Tee Plate 45 Series

Product Description

The 80/20 INC. 14085 is an aluminum corner bracket tee plate designed for use with 45 Series T-slot framing systems. It provides a rigid, adjustable connection point at corners and tee intersections within modular aluminum framing assemblies. At 42 inches in length and 41-5/16 inches in width, this is a large-format plate suited for structural panel and frame builds. The die-cast fastening method and slotted mounting hole allow for infinite positioning across the mounting surface, giving installers precise alignment control without rework. Two mounting holes are provided. Fabricators, machine builders, and industrial maintenance technicians working with 80/20 T-slot framing systems are the primary installers.

This bracket tee plate is intended for use within 45 Series T-slot aluminum extrusion frameworks. Typical applications include machine guarding, workstation frames, equipment enclosures, and industrial fixtures where a large corner or tee connection is required. The slotted mounting hole and die-cast construction support both initial assembly and field adjustment, making it well suited to modular builds that require repositioning of panels or structural members after initial installation.

Key Features

• Die-cast fastening method for strong, repeatable connections
• Slotted mounting hole enables infinite positioning along the mounting axis
• Large-format plate: 42 inches long by 41-5/16 inches wide
• Natural aluminum finish, uncoated for direct use or field modification
• 2 mounting holes for secure panel and frame attachment
• Compatible with 45 Series T-slot extrusion framing

Compatibility

Designed for use with 80/20 INC. 45 Series T-slot aluminum extrusion framing systems.

Installation Notes

Installation is typically performed by fabricators or industrial maintenance technicians familiar with T-slot aluminum framing assembly. De-energize any equipment and secure all structural members before attaching or repositioning this plate within an active frame assembly. Use fasteners and hardware specified for 45 Series T-slot applications to ensure proper load distribution. Slotted mounting holes allow positional adjustment before final torque-down of fasteners.
