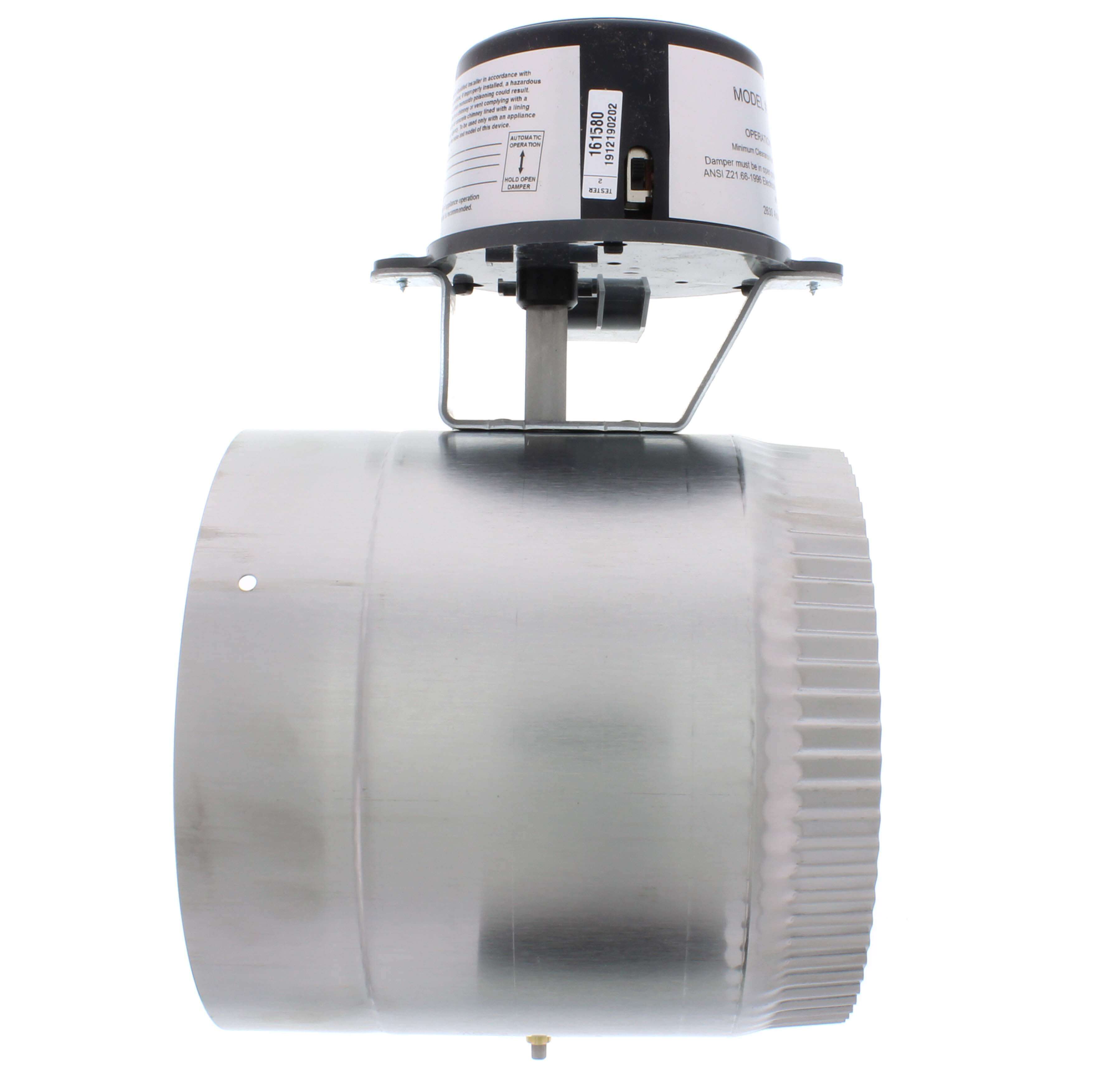

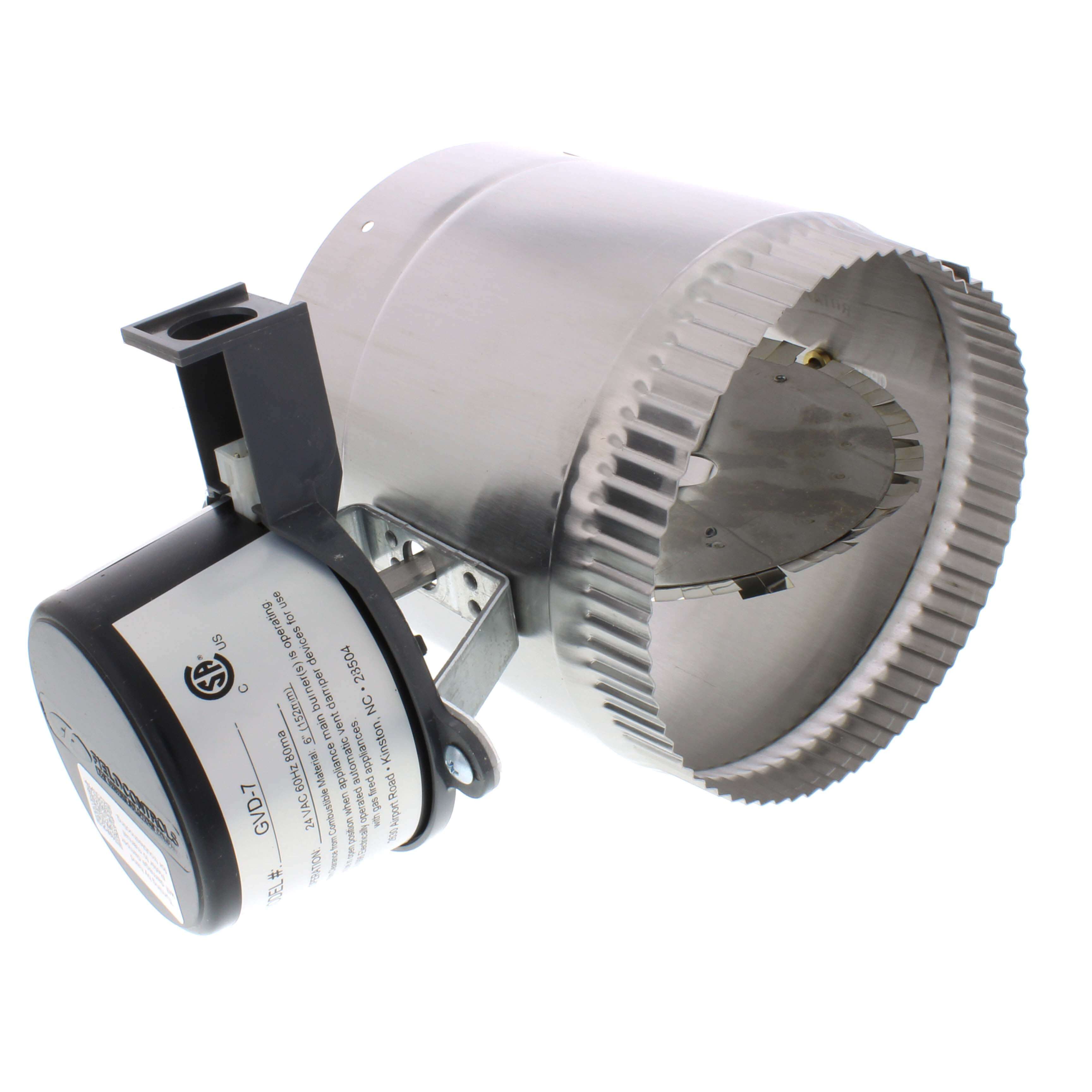

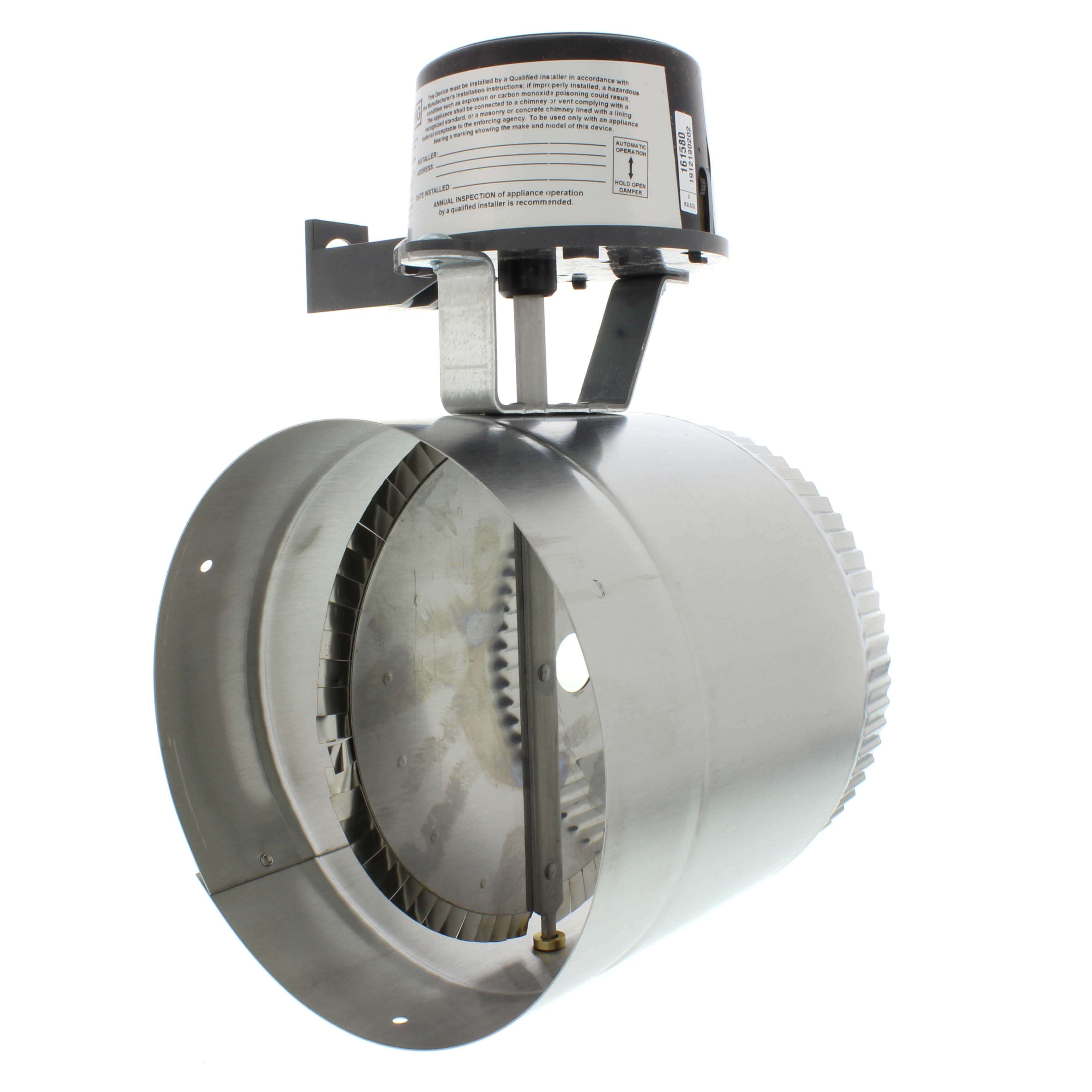

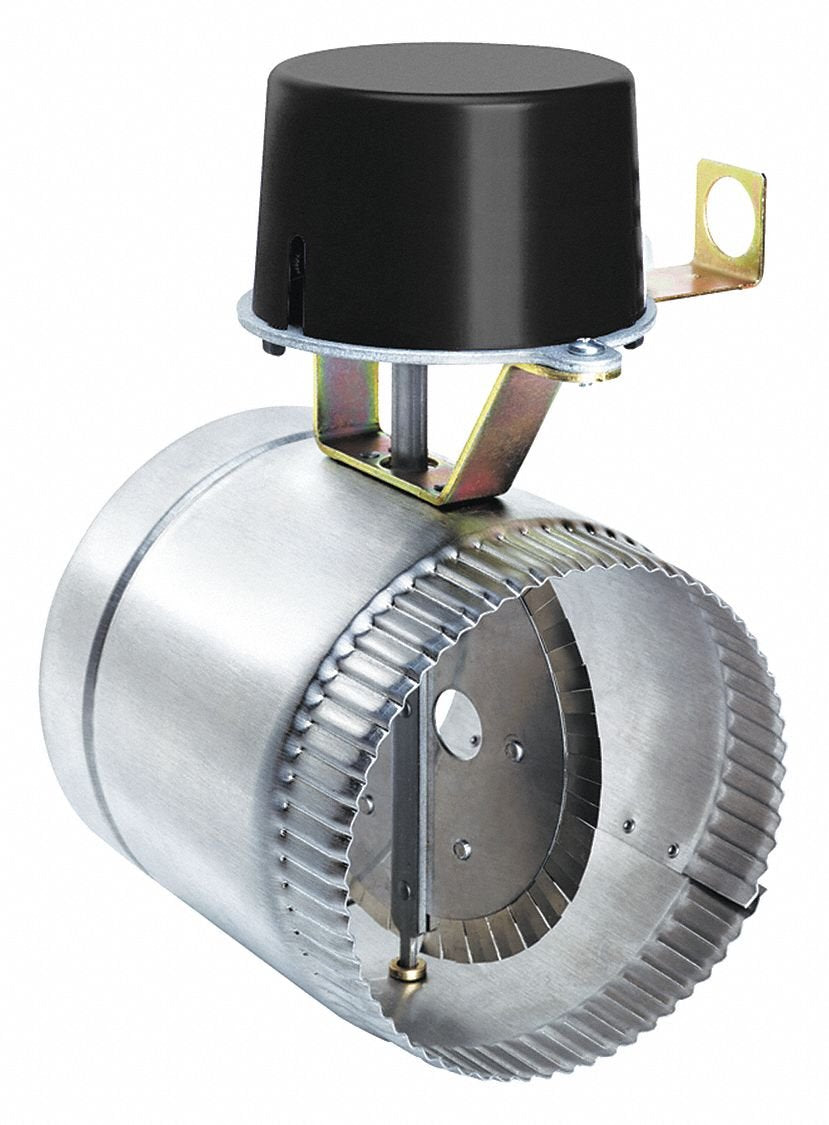

Field Controls GVD-7PL 7 Automatic Vent Damper

Product Description

The Field Controls GVD-7PL is a reliable automatic vent damper designed for use with twenty-four volt gas systems. This product helps manage airflow effectively, minimizing heat loss and preventing cold air from entering through the vent during off cycles.

• Operates with all twenty-four VAC, sixty hertz ignition systems.
• Stainless steel construction for durability and corrosion resistance.
• Fast operation: opens and closes within fifteen seconds.

Product Highlights

The GVD-7PL improves energy efficiency and provides safety features that ensure the burner only operates when the damper is open, maintaining optimal functionality.

Product Information

Standard Information

• Brand: Field Controls
• Model Number: GVD-7PL

Technical Specifications

• Dimensions: Seven inches in diameter
• Length: Seven and one-sixteenth inches
• Height: Eleven and seven-eighths inches
• Clearance: One and seven-sixteenths inches
• Exposed Pipe Size: Five and thirteen-sixteenths inches
• Power Requirements: Three watts at twenty-four VAC, sixty hertz
• Operation Time: Opens and closes in fifteen seconds
