4L590 Fractional Horsepower V-belt 4L Section 59 Inches

Product Description

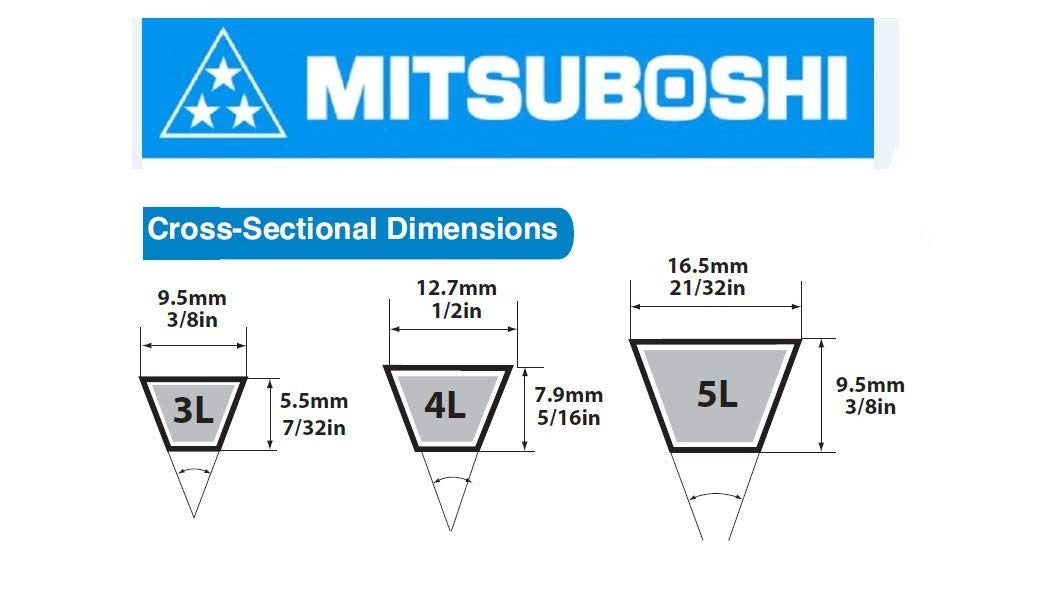

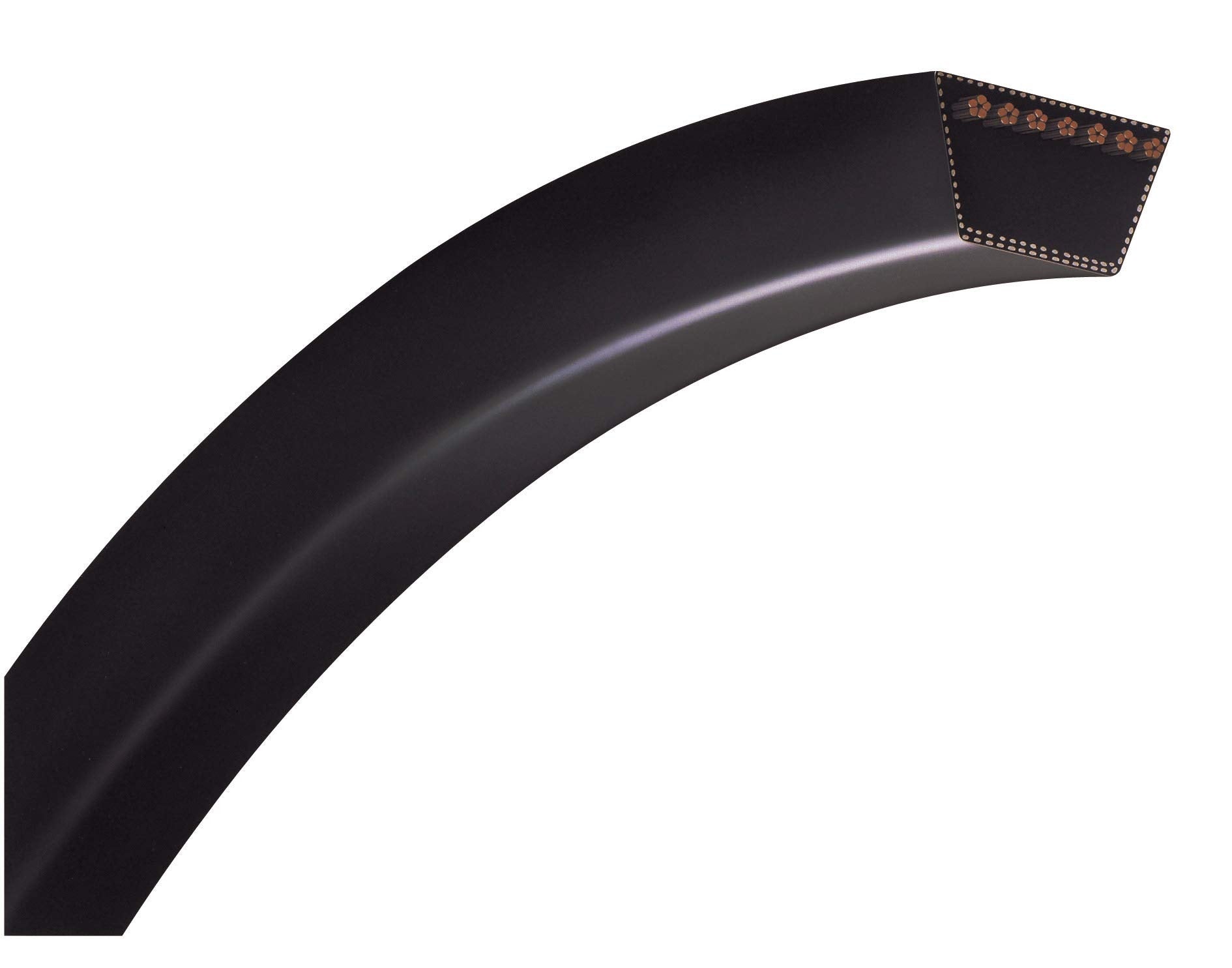

The 4L590 is a fractional horsepower V-belt in the 4L section, built for light-duty power transmission on small-motor drives common in HVAC equipment, exhaust fans, and similar mechanical systems. The belt measures 59 inches in length, 0.5 inches in width, and 0.3125 inches in height, with a rubber construction that resists heat and flex fatigue under continuous operation. It is rated for drives that include backside idler configurations, giving installers flexibility in system layouts. HVAC technicians, equipment service pros, and mechanical contractors are the primary installers of this belt type.

The 4L590 fits fractional horsepower drive applications found in residential and light commercial HVAC systems, including blower assemblies, condenser fan drives, and ventilation equipment. The 4L section is a widely used standard in the industry, making this belt a direct fit for many OEM and aftermarket sheave pairings on small-motor drives. It is also used in general light-duty mechanical equipment outside of HVAC where a 4L-section belt of this length is specified.

Key Features

• 4L section profile fits standard fractional horsepower sheaves and pulleys
• 59-inch outer length suits a wide range of blower and fan drive configurations
• Rubber construction provides heat resistance and durability under continuous flex loads
• Compatible with backside idler drive configurations
• Lightweight at 0.27 pounds for easy single-technician handling

Compatibility

Designed as an OEM-style replacement for fractional horsepower V-belt drives using the 4L section profile in residential and light commercial HVAC and ventilation equipment.

Installation Notes

Installation is typically performed by an HVAC technician or mechanical service professional. Disconnect and lock out power to the unit before removing the old belt or accessing drive components. Verify sheave alignment and condition before installing the new belt, as misaligned or worn pulleys accelerate belt wear. Do not use tools to force the belt over sheave flanges; adjust belt tension according to the equipment manufacturer's service documentation.
