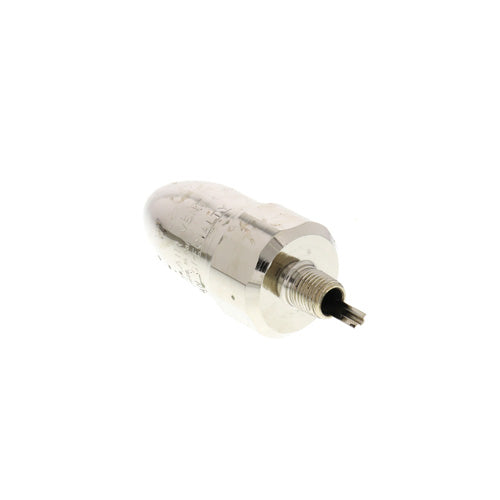

Hoffman 401458 43 1/4 Straight Steam Convector Air Valve

Product Description

The Hoffman 401458 is a 43 1/4 inch straight steam convector air valve designed for optimal function in small steam systems. This air valve features a single non-adjustable port and a telescopic siphon tube that ensures reliable drainage. The valve is equipped with a 1/4 NPT straight shank and operates effectively under a maximum operating pressure of six psi.

• Single non-adjustable port
• Maximum operating pressure of six psi
• Compatible with small steam systems

Product Highlights

This air valve is constructed from steel and is suited for convector vent applications. It is non-adjustable and designed for maximum pressures reaching ten psi.

Product Information

Standard Information

• Brand: Hoffman
• MPN: 401458

Technical Specifications

• Thread Size: 1/4
• Thread Type: Male
• Material: Steel
• Body Pattern: Straight
• Maximum Temperature: 240°F
• Minimum Temperature: 140°F
• Temperature Range: 140°F - 240°F
• Max Operating Pressure: 6 psi
