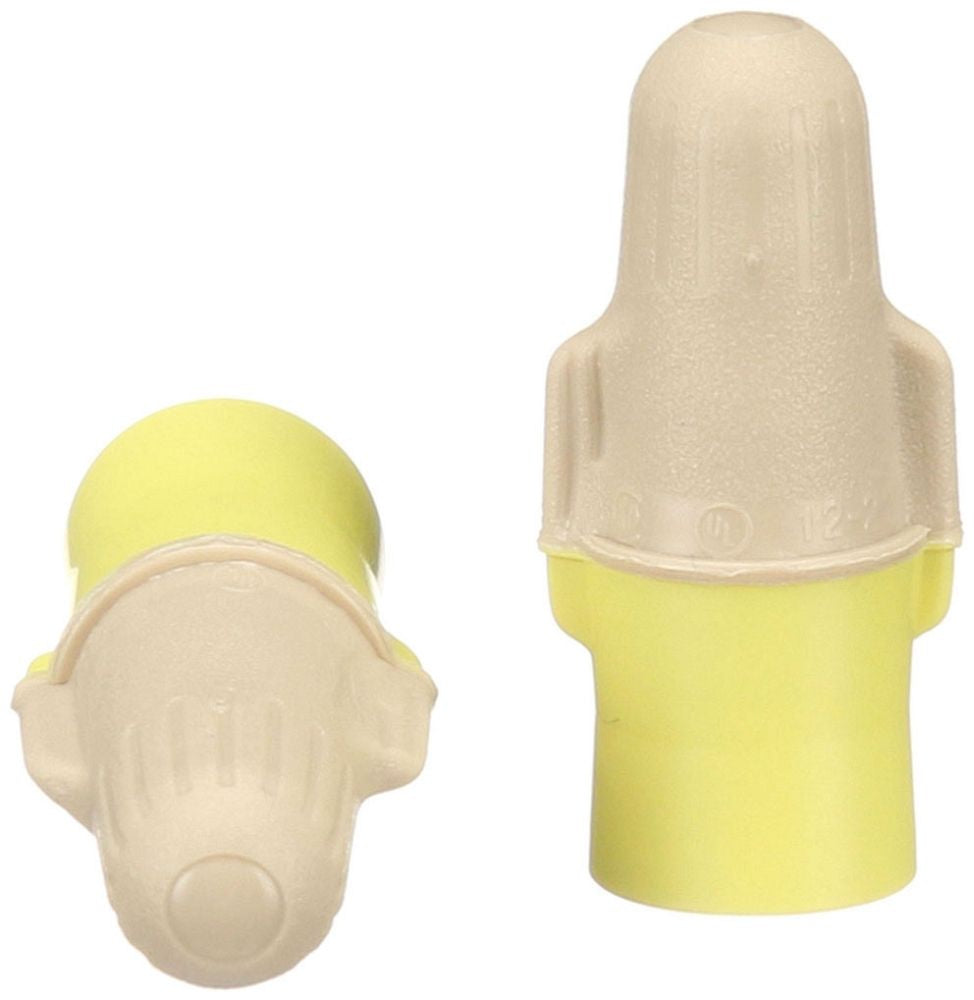

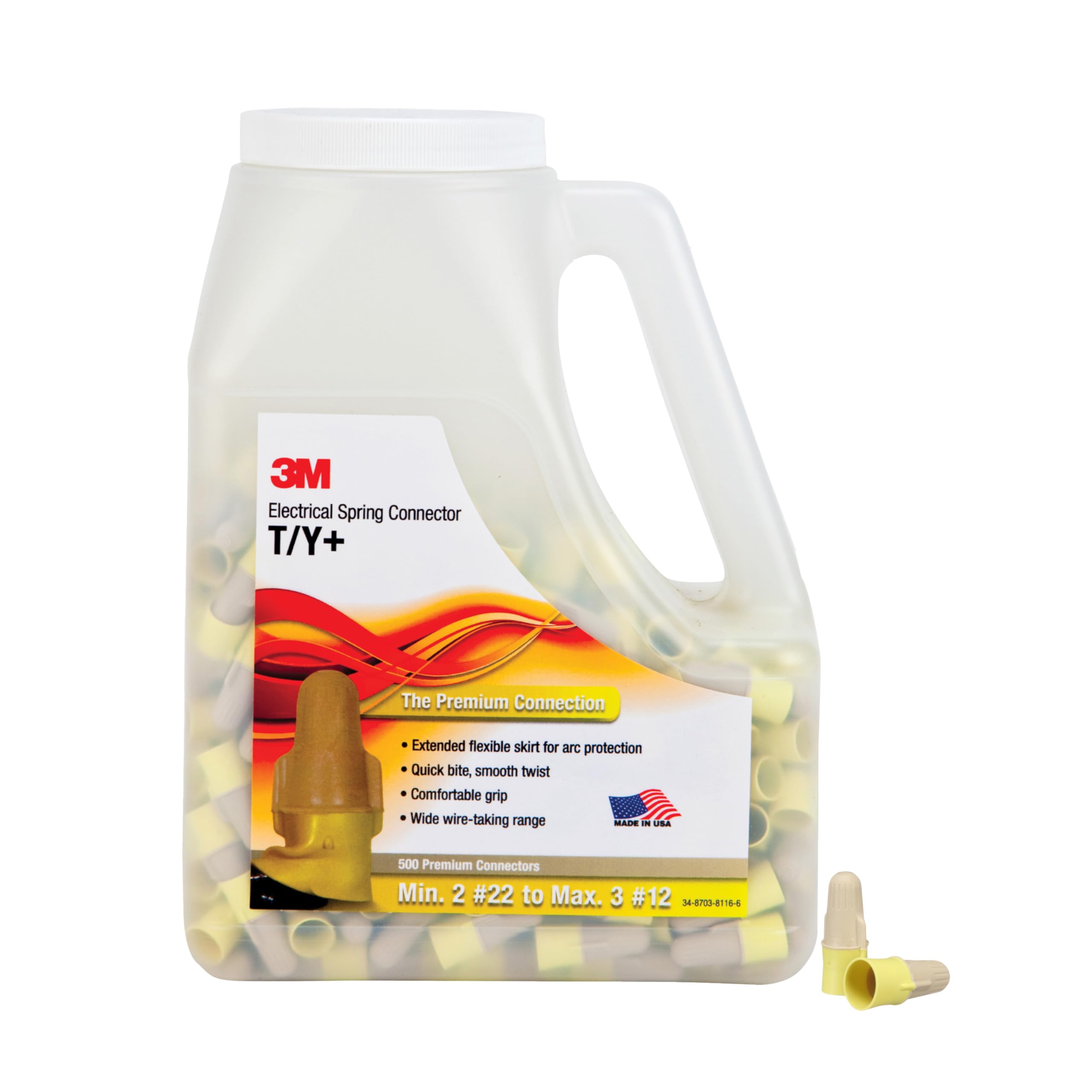

3M T/Y+POUCH(T/Y+BOX) Performance Plus Wire Connector

Product Description

The 3M Performance Plus Wire Connector T/Y+POUCH(T/Y+BOX) is built for electrical contractors. The connector's compact form allows it to fit in tight spaces. It supports a wire range from two #22 AWG to three #12 AWG solid copper wires. A flexible skirt protects against overstripped wires, enhancing safety and functionality. It is UL Listed for six hundred volts on copper wire and comes in a tan/yellow color. This connector is ideal for simplifying wire connection tasks in residential applications, effectively replacing several traditional connectors.

• Smooth, comfortable design for easy handling.
• Compact size with red miniskirt style.
• Quick bite spring design for reliable connections.

Product Highlights

This connector is engineered for efficiency and reliability in electrical installations.

Product Information

Standard Information

• Connector Type: Wire Connector
• Voltage Rating: 600 V

Technical Specifications

• Wire Range: 22 - 12 AWG
• Maximum Operating Temperature: 105 degrees Celsius (221 degrees Fahrenheit)
• Material: Polypropylene and Thermoplastic Elastomer
• Flame Retardant: Yes
• Connection Type: Pigtail
• Connector Style: Twist On
