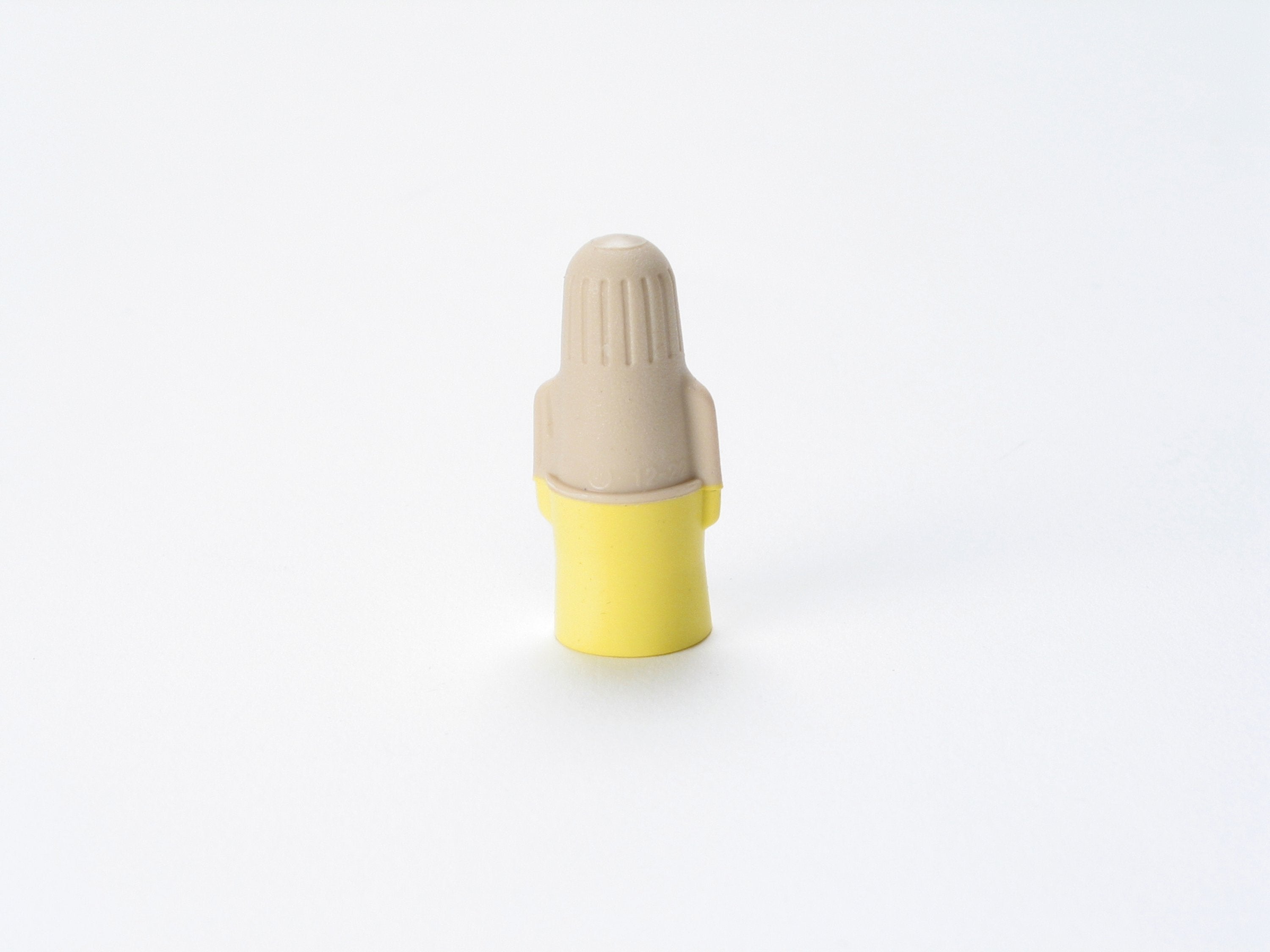

3M T/Y+POUCH Performance Plus Wire Connector (100/Pouch)

Product Description

The 3M T/Y+POUCH Performance Plus Wire Connectors feature a uniquely flexible spring that expands and provides a secure connection. With an increased wire range, these connectors handle the work of eight standard connectors, and the flexible skirt helps prevent copper exposure. Comes in a pouch of 100 connectors.

• Flexible spring expands for greater wire range and reuse
• Strong bite for a secure, reliable connection
• Flexible skirt helps prevent copper exposure

Product Highlights

The 3M Performance Plus wire connectors simplify the selection process for various wiring jobs, ensuring a secure and reliable connection every time.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: T/Y+POUCH
• Country of Origin: UKN

Technical Specifications

• Type: Wire Nuts
• Width: 0.49 Inches
• Height: 1.03 Inches
• Material: Plastic
• Standard: UL
• Insulated: Yes
• Connection: Twist-On
• RoHS Indicator: Y
• Voltage Rating: 600 VAC
• Conductor Range: 22 to 12 AWG
• Temperature Rating: 221°F
• Brand: 3M
• MPN: T/Y+POUCH
• Application: For electrically connect two or more conductor ends in a pigtail application and insulate the connection
• Shell Style: Winged
• Standards/Approvals: RoHS Compliant|C22.2 188 File No. M1983|UL 486C File No. M1983
• Flame Retardant: Yes
• Minimum Conductor Leg Diameter: 22 AWG
• ECCN: EAR99
• UPC: 05112855218
• UNSPSC: 39121445
• Connection Type: Pigtail
• Use With: Copper Conductor
• Outer Diameter: 0.14 in.
• Rated Voltage: 600V
• Max. Temperature Rating: 221°F
