3M T/R+JUG Performance Plus Wire Connector (750 Per Jug)

3M
Brand: 3M
SKU: T/R+JUG
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

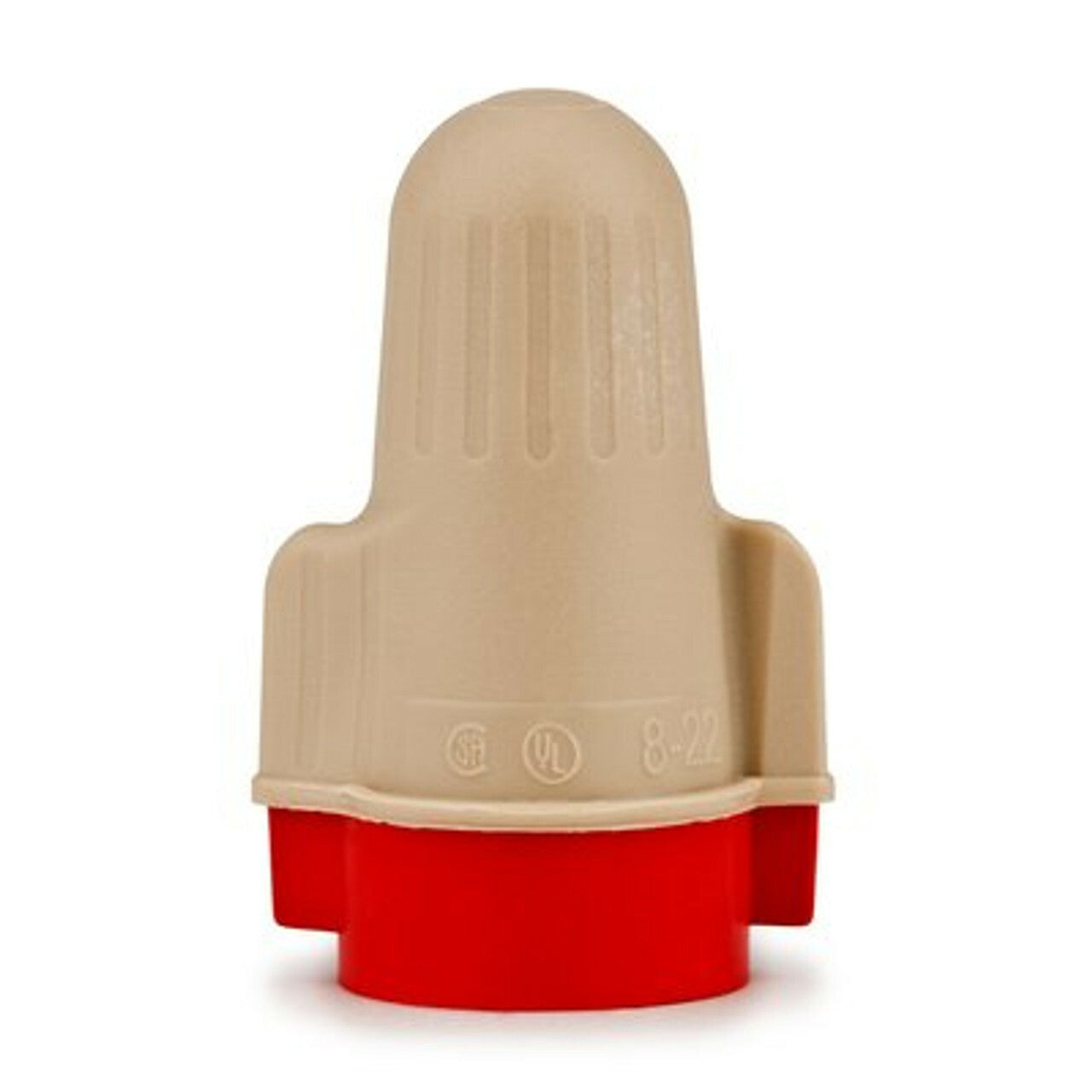

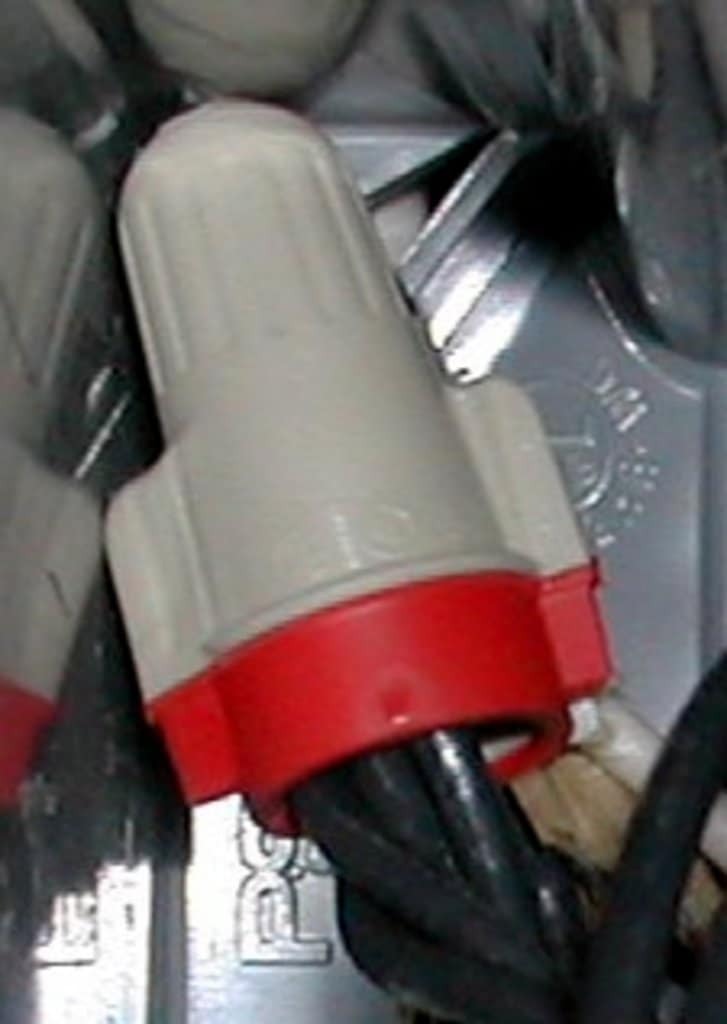

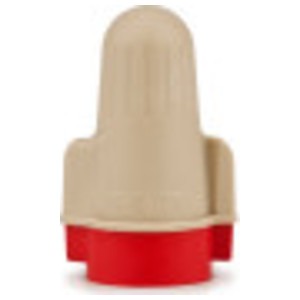

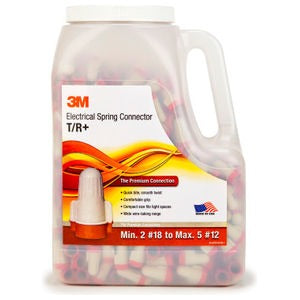

3M T/R+JUG is a Performance Plus wire connector designed for pigtail splices; the T/R+ variant accommodates 2 #18 to 5 #12 AWG copper conductors and is supplied 750 per jug. The connector is UL listed for 600 V on copper wire, features a polypropylene/thermoplastic elastomer shell, and is rated to 105 C. It insulates and secures multiple conductor ends for residential and light commercial wiring.

  • UL listed for 600 V on copper conductors; certifications: UL, CSA, CE
  • Wire range: 2 #18 to 5 #12 AWG; accepts copper solid and stranded conductors
  • Thermoplastic shell with 105 C temperature rating; package quantity 750 per jug

Product Highlights

Performance Plus twist-on connector for pigtail splices; 750 per jug; made in United States

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: T/R+JUG
  • Country of Origin: United States
Technical Specifications
Brand
3M
MPN
T/R+JUG
Catalog Number
T/R+JUG
Manufacturer
3M Electrical Products
Product Name
Performance Plus Wire Connector
Wire Range
2 #18 to 5 #12 AWG
Wire Type
Copper (solid or stranded)
Voltage Rating
600 V (on copper)
Temperature Rating
105 C
Package Quantity
750 per jug
Shell Material
Polypropylene; Thermoplastic elastomer
Certifications
UL, CSA, CE
RoHS Compliance
RoHS 2011/65/EU compliant without exemption
Country of Origin
United States
UPC
051128544556
GTIN
00051128544556
Application
Electrically connects and insulates two or more conductor ends in pigtail splices
