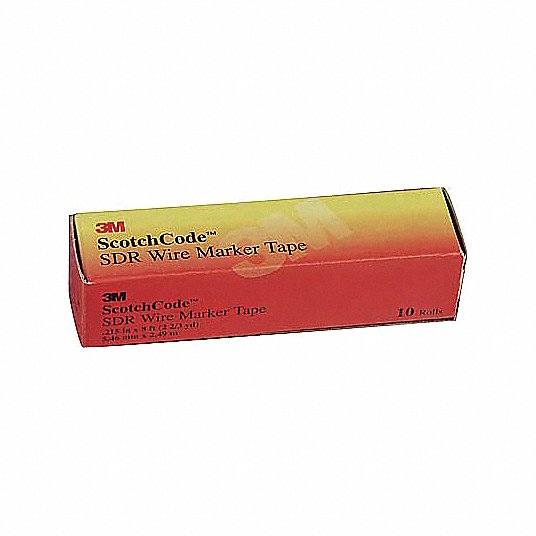

3M SDR-+(PLUS) wire marker tape + (plus)

Product Description

The 3M SDR-+(PLUS) is a wire marker tape, 0.22" W x 96.00" L (5.5mm x 2.4m) made of white polyester. It is pre-printed with 6 characters for every inch and is ideal for phase identification on large- or small-gauge wire or cable, as well as automotive applications on tubing, hoses and replacement parts.

• Wire Marker, Tape
• 0.22" W x 96.00" L (5.5mm x 2.4m)
• White Polyester

Product Highlights

The tape can also be used for identification of terminal blocks/strips, wire in panel boards or on a piece of switchgear. Compatible with 3M STD ScotchCode tape dispensers.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: SDR-+(PLUS)
• Country of Origin: US

Technical Specifications

• Category: Cables, Wires - Management
• Markers: Markers
• Legend: + (Plus)
• Manufacturer: 3M
• Color: White
• Series: ScotchCode SDR
• Material: Polyester
• Packaging: Bulk
• Shelf Life: 24 Months
• Part Status: Active
• Shelf Life Start: Date of Manufacture
• Type: Tape, Wire Marker, Dispenser
• Operating Temperature: -40 °C ~ 121°C
• Size: 0.22" W x 96.00" L (5.5mm x 2.4m)
• Base Product Number: SDR
• Cable Diameter: Cut to Desired Diameter
• Length: 96 in
• Width: 0.25 in
• Package Quantity: 10 per box, 50 per case
• Product Type: Identification
• USHTS: 3919102055
• CNHTS: 3919109900
• KRHTS: 3919100000
• TARIC: 3919108090
• MXHTS: 3919100100
• ECCN: EAR99
• UNSPSC Code: 26120000
• Alternate Mfr Part Number: 7000058269
• Brand: 3M
• Manufacturer Part Number: SDR-+(PLUS)
• Unit of Measure: EA
• UPC Code: 10054007094217
• Legend Color: Black
• Label Material: Polyester
• Label Type: Preprinted
• Minimum Operating Temperature: -40
• Maximum Operating Temperature: 250
• Label Width: 0.22 in
• Label Height: 0.003 in
• Label Attachment Style: Self-Adhesive
• Number of Labels: 576
• Uses Dispenser: Mfr. No. STD
• Rolls per Legend: 1
• Fits Wire Diameter: 6/0 to 24 AWG
• UNSPSC: 55121611
• Trade Name: ScotchCode
• 3M Number: SDR-+(PLUS)
• Backing Material: Polyester Film
• Adhesive Material: Acrylic
• Pattern/Text: +
• Writability: Not Writable
• Thickness: 3 mil
