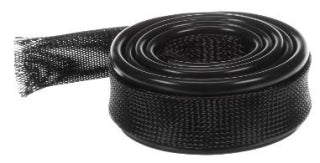

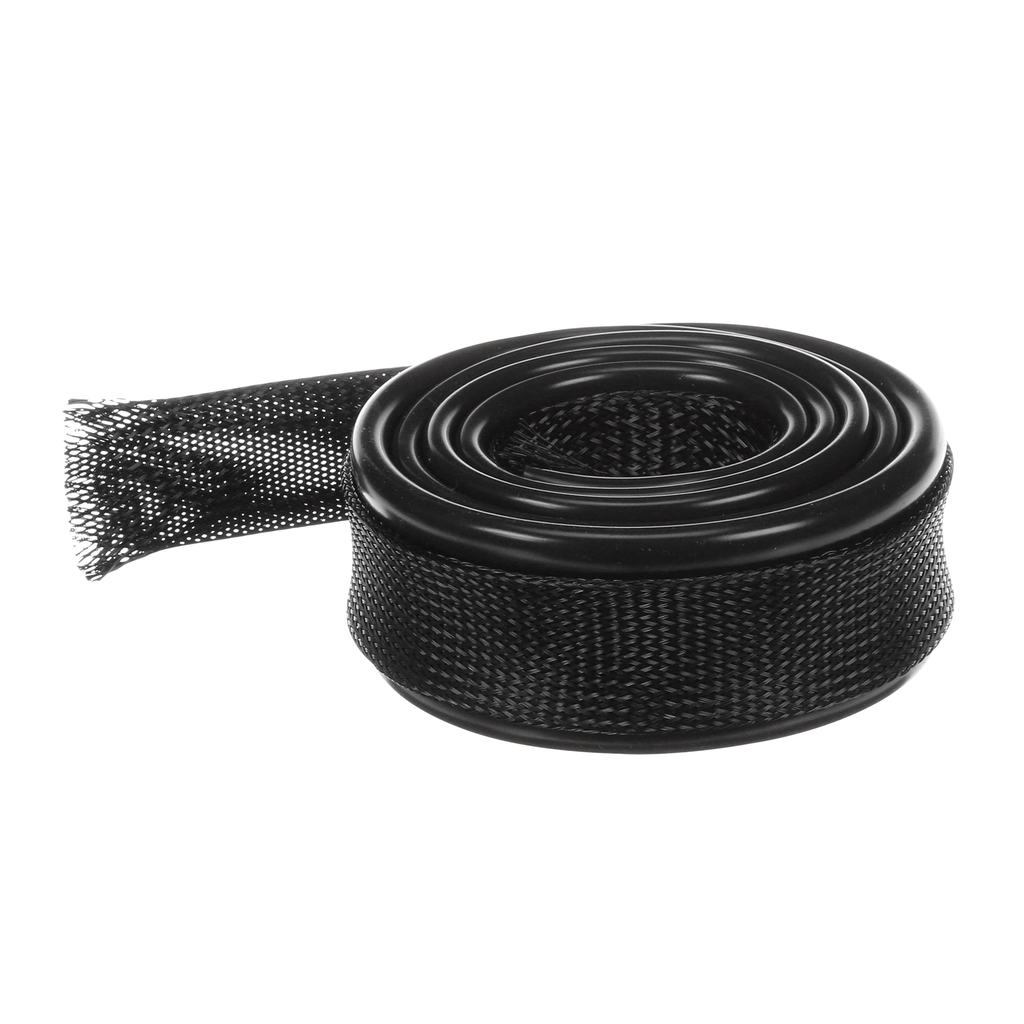

3M RJS-4-10FT Rejacketing Sleeve 10 Foot Coil

Product Description

3M RJS-4-10FT is a rejacketing sleeve designed for reliable protection of phase legs on medium voltage power cables. The sleeve incorporates silicone rubber insulation and a polyester braid which provides resistance against UV rays, ozone, and moisture. This product is suitable for applications up to thirty-five kilovolts.

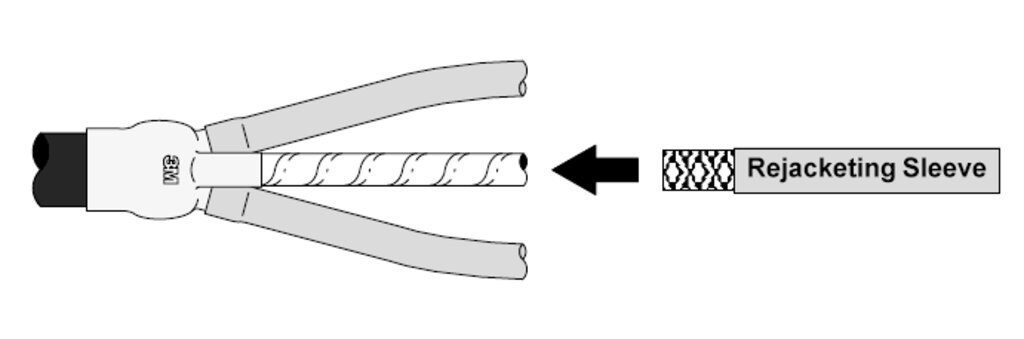

• Secures the phase legs of medium-voltage and 3/C shielded power cables.
• Designed for use on tape shield, wire shield, armored and non-armored cables.
• Compatible with 3M Cold Shrink QT II and QT III silicone terminations.

Product Highlights

This rejacketing sleeve is essential for maintaining the integrity of power cable terminations in various environments.

Product Information

Standard Information

• Brand: 3M
• MPN: RJS-4-10FT

Technical Specifications

• Material: Silicone Rubber
• Length: 10 Foot
• Cable Type: Sleeve
• Conductor Size: 240 to 300 MM (3.3 Kilovolt, IEC); 200 to 250 MM (3.3 Kilovolt, JIS)
• Operating Temperature: 356 degrees Fahrenheit
• Wall Thickness: 0.065 Inch
• Ultimate Tensile Strength: 1058 PSI
• Voltage Rating: 35 kV or less
