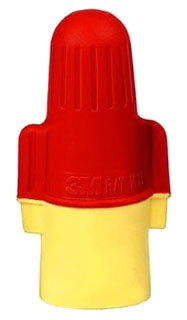

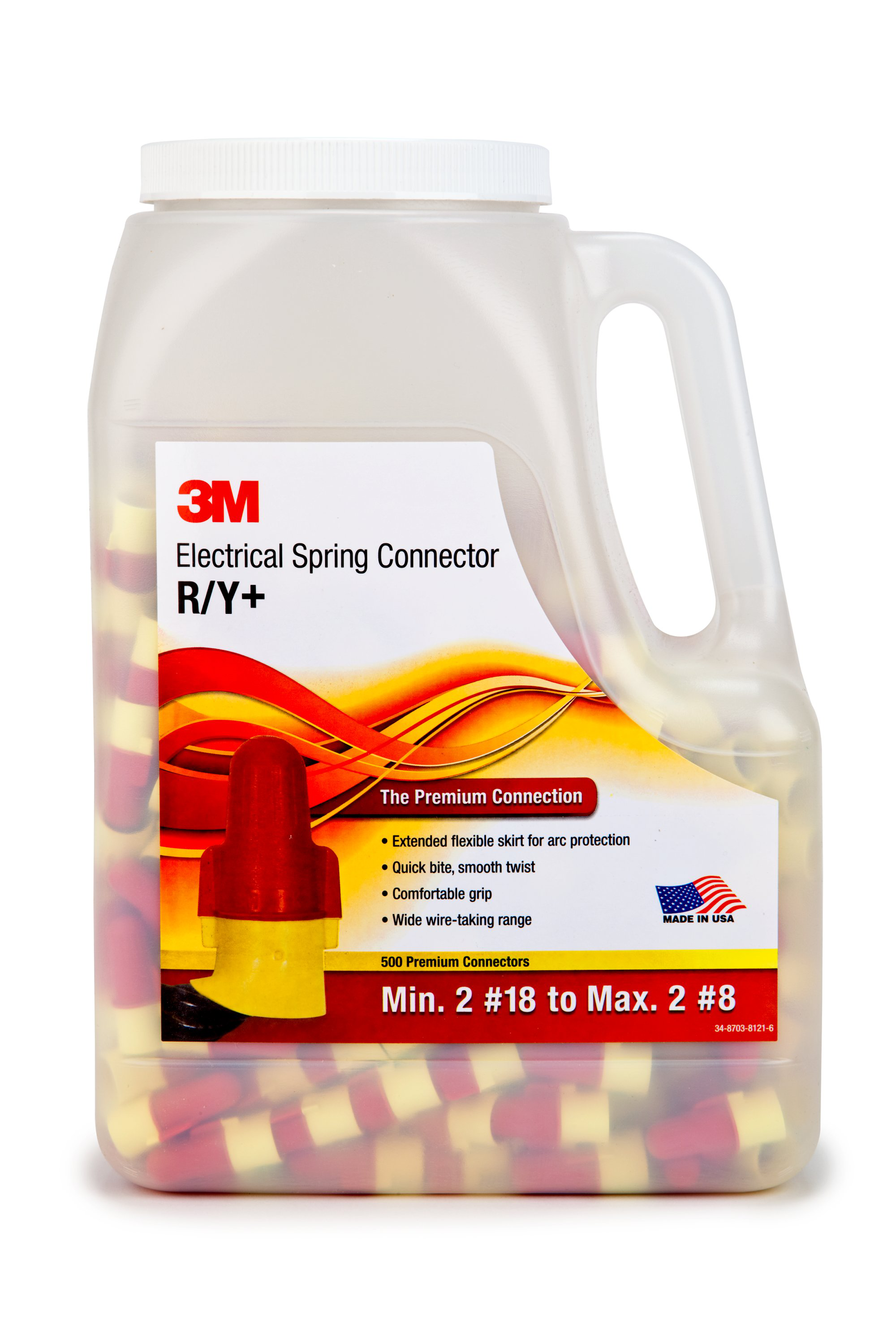

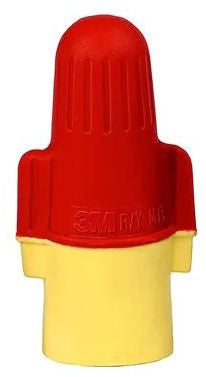

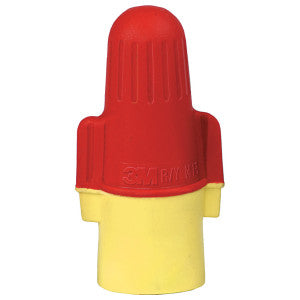

3M R/Y+JUG Performance Plus Wire Connector 600 Volt 500 Per Jug

Product Description

The 3M R/Y+JUG Performance Plus Wire Connector is designed for reliable electrical connections for wire sizes ranging from twenty-two to eight AWG. This connector, available in red and yellow, contains a quick-biting spring that enhances its ability to securely connect two or more wire ends. With a significant voltage rating of six hundred volts, it is suitable for various applications including lighting fixtures and appliances.

• Wing design for easy handling.
• Approved for use by UL, IEC, CSA, and CE.
• RoHS compliant offering safety and environmental consideration.

Product Highlights

This connector simplifies the electrical connection process, allowing for more efficient inventory management. It replaces both red and yellow connectors, making it versatile for many types of jobs.

Product Information

Standard Information

• Manufacturer: 3M
• Model Number: R/Y+JUG

Technical Specifications

• Color: Red/Yellow
• Wire Size Compatibility: 22 to 8 AWG
• Voltage Rating: 600 Volt
• Temperature Rating: 221 Deg F
• Approval Ratings: UL, IEC, CSA, CE
• Shell Material: Plastic
• Spring Type: Quick Biting
• Standard Package: 4000 per case
• RoHS Compliant: Yes
