3M QCI-2-250 Shear Bolt In Line Connector

Product Description

The 3M QCI-2-250 is a mechanical shear bolt in line connector designed for easy installation without the need for crimp tools or dies. It supports conductor sizes ranging from 2 AWG to 250 kcmil and can accommodate both copper and aluminum conductors. This connector is suitable for high-voltage applications up to thirty-five kV, making it ideal for various electrical projects.

• Easy installation without crimping
• Handles conductors from 2 AWG to 250 kcmil
• Rated for applications up to thirty-five kV

Product Highlights

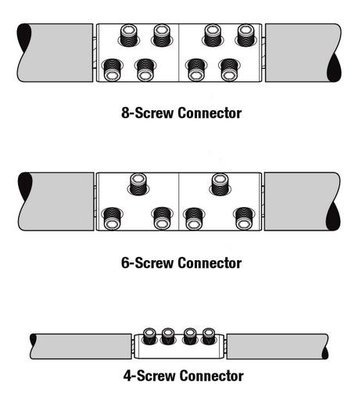

The connector uses a unique shear bolt design to ensure optimal contact force and reliability. It also features a centering ring for smaller conductors and a built-in center stop for correct positioning during installation.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M Electrical Products

Technical Specifications

• Catalog Number: QCI-2-250
• Material: Aluminum
• Voltage Rating: 35 kV
• Conductor Size: 2 AWG - 250 kcmil
• Max Temperature: 105 degrees C
• Standard: IEEE-404
• UPC: 051128585375
• Item Type: Connector
