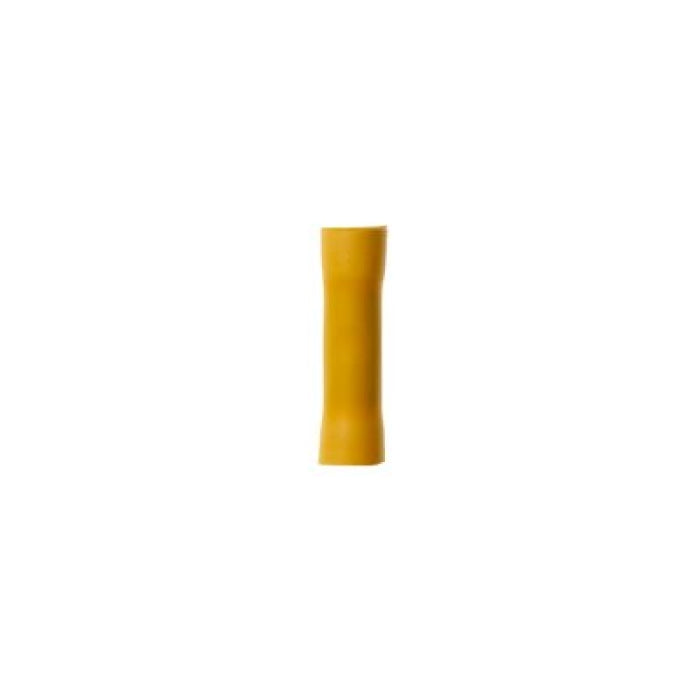

3M MVU10BCX Butt Connector 12 to 10 AWG 1.02 in Butted Barrel

Product Description

The 3M MVU10BCX is a butt connector designed for 12 to 10 AWG conductors. This connector simplifies wire connections with its color-coded design for easy identification of wire sizes. The funnel-designed polyvinyl chloride sleeve protects the barrel and enhances insertion ease. Users can connect wires effortlessly with this connector, while its unique design reduces mechanical stress on the wires. This product is UL Listed, CSA Certified, and complies with RoHS standards.

• Connects 12 to 10 AWG conductors
• Butted seam barrel with vinyl insulation
• Temperature range of -40 to 221 degrees Fahrenheit

Product Highlights

This connector provides a reliable and secure connection, ensuring optimal performance across various applications.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: 3MI-7010398192

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Length: 1.02 inches
• Barrel Inner Diameter: 0.135 inches
• Barrel Length: 0.25 inches
• Material: Copper/Vinyl
• Thickness: 0.04 inches
• Temperature Rating: 221 degrees Fahrenheit
• Standard Package: 50 per carton
